Description

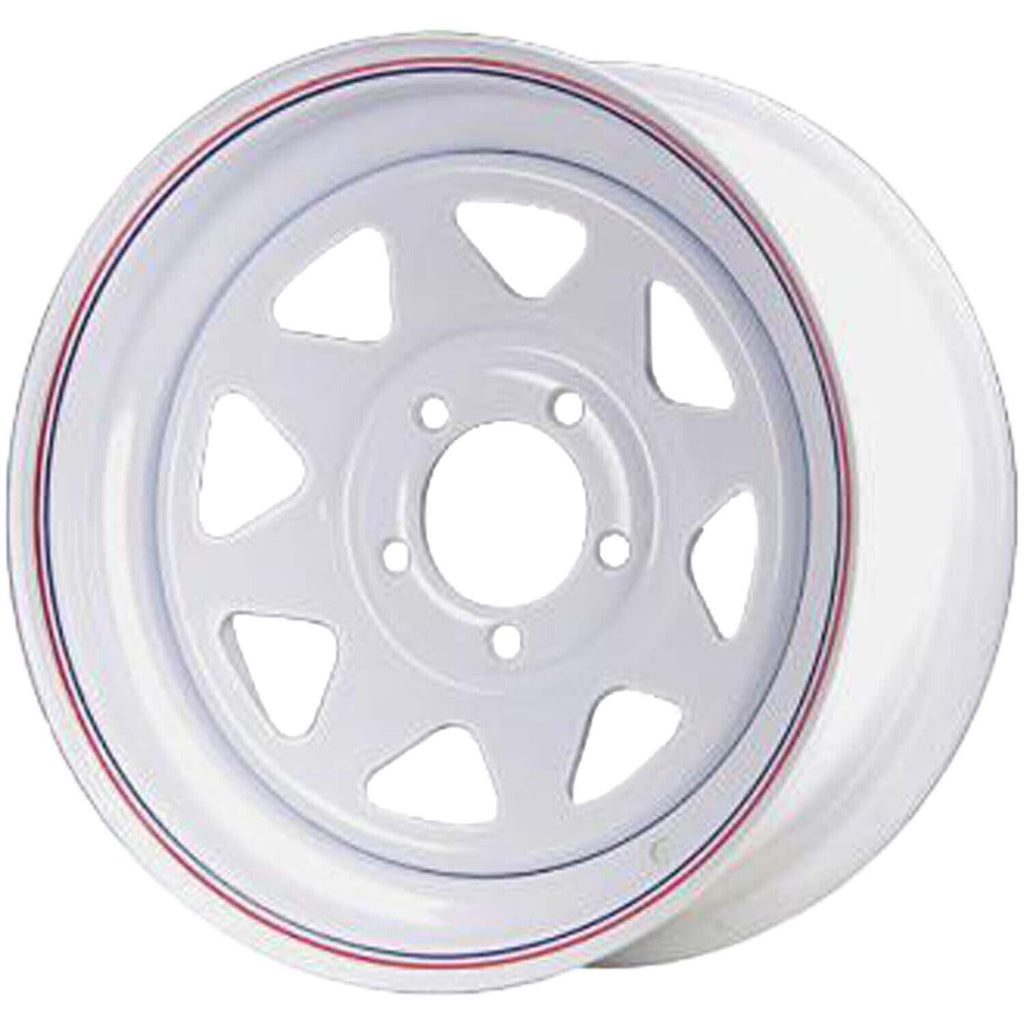

Premium Service puts the classic spoked look on a spec-driven steel trailer wheel, with a clear load rating and exact hub dimensions you can check before you buy. Open spokes shed water and road grime instead of trapping it against the drum, and they let brake heat escape on long pulls.
This is the 13x4.5 size on a 5 on 4.5 (5x114.3 mm) bolt pattern, rated for 1,730 lbs per wheel. It runs a 3.19 inch center hole, zero offset and 2.75 inches of backside spacing. The finish is white with red and blue pin stripes, and it takes 60 degree cone lug nuts.
Measure the bolt pattern on the hub itself: on a 5 lug hub, go from the center of one stud to the outside edge of the stud two positions over. A 5 on 4.75 hub is only a quarter inch larger, so take your time with the tape. Then match the center hole and backside spacing to the wheel you are replacing.
This listing includes 1 wheel. Tire not included.
- Wheel size13 x 4.5 in
- Bolt pattern5 on 4.5 in
- Center hole3.19 in
- Offset0 in
- Backspacing2.75 in
- Load capacity1,730 lb
Quantity
Premium Service 13x4.5 5 on 4.5 Spoked Trailer Wheel - White Pinstripe
$49.95
Documents
Wheel Specifications
- Wheel size
- 13 x 4.5 in
- Bolt pattern
- 5 on 4.5
- Center hole
- 3.19 in
- Load capacity
- 1,730 lb
| Rim diameter | 13 in |
|---|---|
| Rim width | 4.5 in |
| Bolt pattern | 5 on 4.5 |
| Center hole | 3.19 in |
| Offset | 0 in |
| Backside spacing | 2.75 in |
| Load capacity | 1,730 lb |
|---|---|
| Vehicle application | Trailer |
| Brand | Premium Service |
|---|---|
| MPN | F2489134511 |
| SKU | WHL7640X |
| Shipping weight | 12.99 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values.
Wheel dimensions
| Wheel size | 13 x 4.5 in |
|---|---|
| Bolt pattern | 5 on 4.5 in |
| Center hole | 3.19 in |
| Backspacing | 2.75 in |
| Offset | 0 in |
| Load capacity | 1,730 lb |
Dimensions for this option are not available yet.
Premium Service puts the classic spoked look on a spec-driven steel trailer wheel, with a clear load rating and exact hub dimensions you can check before you buy. Open spokes shed water and road grime instead of trapping it against the drum, and they let brake heat escape on long pulls.
This is the 13x4.5 size on a 5 on 4.5 (5x114.3 mm) bolt pattern, rated for 1,730 lbs per wheel. It runs a 3.19 inch center hole, zero offset and 2.75 inches of backside spacing. The finish is white with red and blue pin stripes, and it takes 60 degree cone lug nuts.
Measure the bolt pattern on the hub itself: on a 5 lug hub, go from the center of one stud to the outside edge of the stud two positions over. A 5 on 4.75 hub is only a quarter inch larger, so take your time with the tape. Then match the center hole and backside spacing to the wheel you are replacing.
This listing includes 1 wheel. Tire not included.
