Norco 76520B Heavy Duty 22 Ton Standard Bottle Jack
Roll over image to zoom in Click on image to zoom

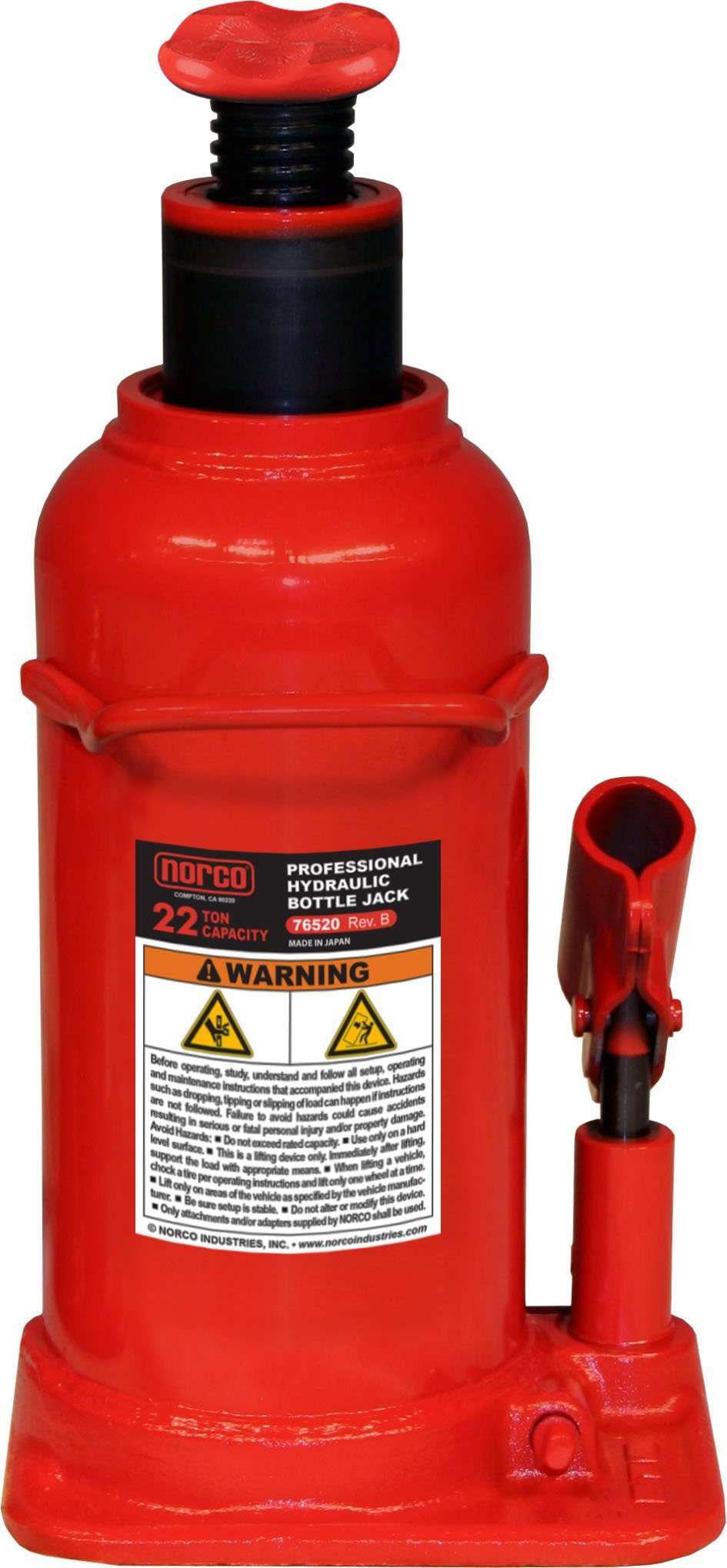

Norco 76520B Heavy Duty 22 Ton Standard Bottle Jack

Norco 76520B 22 Ton Standard Height Hydraulic Bottle Jack

NorcoSKU: NOR76520
No reviews
Price:
$285.94

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Norco 76520B is a 22 ton standard height hydraulic bottle jack for heavy duty truck, agriculture, construction, mining, oil field, automotive and marine work. Use it anywhere you need to lift, push, spread, bend, press or straighten.

It starts at 10.83 inches closed and reaches 20.2 inches with 6.61 inches of hydraulic lift and a 2.76 inch extension screw. No-leak Uniweld construction, internally machined oil passages and close tolerances give it a long service life.

A Parkerized pump piston, ram and extension screw resist rust, and the lightweight forged base puts steel only where strength is needed. Safety bypass and overload systems keep the jack within the ASME/PASE load limit, and an integrated carry handle makes it easy to bring along.

This listing includes 1 bottle jack with a two-piece handle.

Jack Specifications

Capacity
44,000 lb
Lift range
10.83 to 20.2 in
Hydraulic lift
6.61 in
Operation
Manual hydraulic
Capacity & lift
Capacity44,000 lb
Min height10.83 in
Max height20.2 in
Hydraulic lift6.61 in
Extension screw2.76 in
Operation & build
OperationManual hydraulic
Base size6.57 x 6.06 in
StandardsASME/PASE
WarrantyLimited lifetime warranty
General
BrandNorco
MPN76520B
SKUNOR76520
Shipping weight28.31 lb

Specifications are the manufacturer's published values. Never work under a load held only by a jack; support it with rated jack stands or cribbing.

The Norco 76520B is a 22 ton standard height hydraulic bottle jack for heavy duty truck, agriculture, construction, mining, oil field, automotive and marine work. Use it anywhere you need to lift, push, spread, bend, press or straighten.

It starts at 10.83 inches closed and reaches 20.2 inches with 6.61 inches of hydraulic lift and a 2.76 inch extension screw. No-leak Uniweld construction, internally machined oil passages and close tolerances give it a long service life.

A Parkerized pump piston, ram and extension screw resist rust, and the lightweight forged base puts steel only where strength is needed. Safety bypass and overload systems keep the jack within the ASME/PASE load limit, and an integrated carry handle makes it easy to bring along.

This listing includes 1 bottle jack with a two-piece handle.

Features

  • Lifts, pushes, spreads, presses and straightens on heavy duty truck, farm, construction and shop jobs.
  • 22 ton capacity with a 10.83 in minimum and 20.2 in maximum height, 6.61 in stroke and 2.76 in screw.
  • Standard height jack with a 6.57 x 6.06 in base for trucks, equipment and general shop lifting.
  • No-leak Uniweld body, Parkerized pump piston, ram and screw, and a lightweight forged base.
  • Includes 1 jack with a two-piece zinc plated handle and an integrated carry handle.
