Norco 76512A 12 Ton Low Height Bottle Jack
Norco 76512A 12 Ton Low Height Bottle Jack
Roll over image to zoom in Click on image to zoom
Norco 76512A 12 Ton Low Height Bottle JackNorco 76512A 12 Ton Low Height Bottle Jack

Norco 76512A 12 Ton Low Height Hydraulic Bottle Jack

NorcoSKU: NOR76512
No reviews
Price:
$181.85

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Norco 76512A is a 12 ton low height hydraulic bottle jack for heavy duty truck, agriculture, construction, mining, oil field, automotive and marine work. At just 6.69 inches closed, it gets into tight spots where a standard height jack will not fit.

It lifts to 13.19 inches with 3.74 inches of hydraulic lift and a 2.76 inch extension screw. No-leak Uniweld construction, internally machined oil passages and close tolerances give it a long service life.

A Parkerized pump piston, ram and extension screw resist rust, and the lightweight forged base keeps the weight down. Safety bypass and overload systems protect the cylinder, and an integrated carry handle makes it easy to bring along.

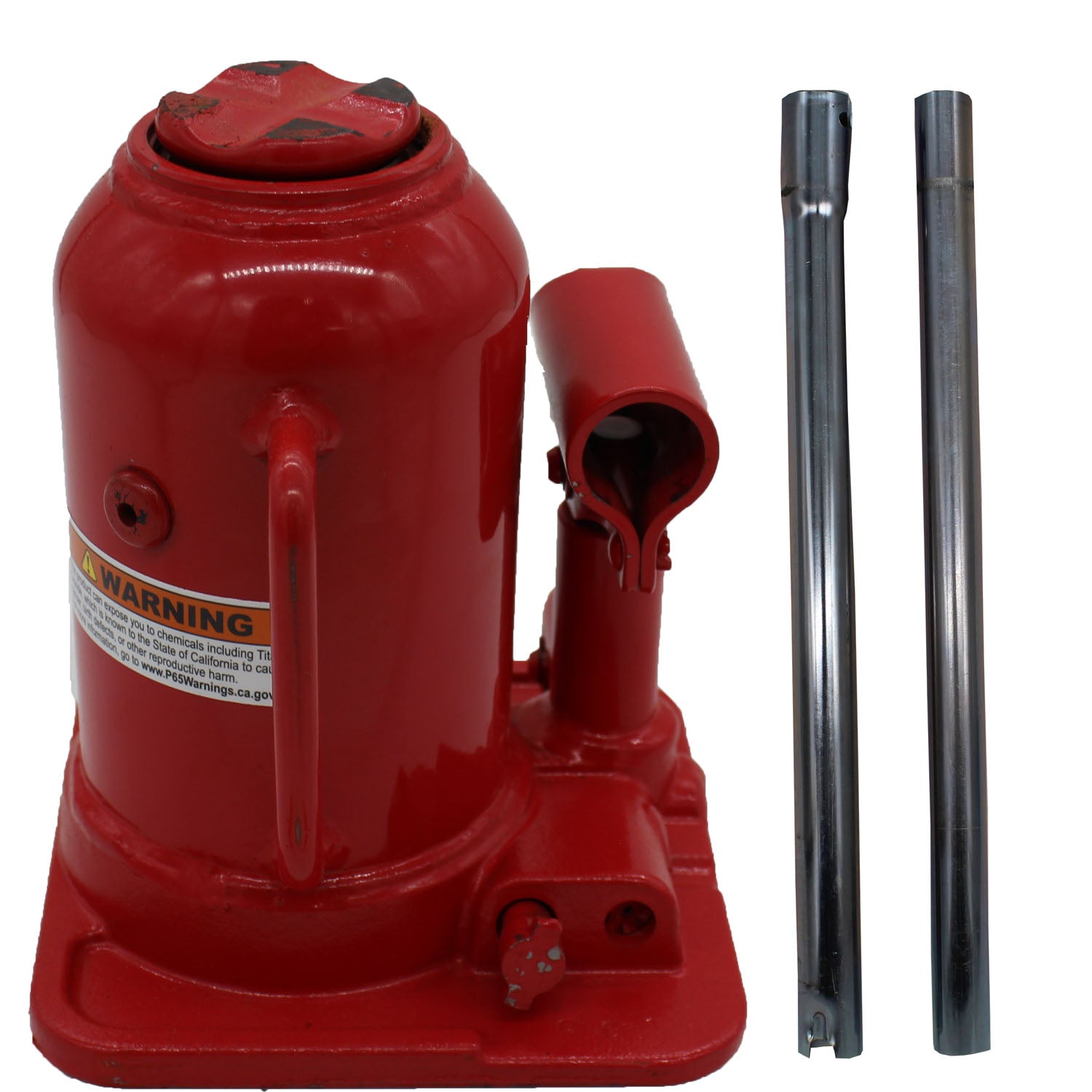

This listing includes 1 bottle jack with a two-piece handle.

Jack Specifications

Capacity
24,000 lb
Lift range
6.69 to 13.19 in
Hydraulic lift
3.74 in
Operation
Manual hydraulic
Capacity & lift
Capacity24,000 lb
Min height6.69 in
Max height13.19 in
Hydraulic lift3.74 in
Extension screw2.76 in
Operation & build
OperationManual hydraulic
Base size5.51 x 5.51 in
WarrantyLimited lifetime warranty
General
BrandNorco
MPN76512A
SKUNOR76512
Shipping weight14.79 lb

Specifications are the manufacturer's published values. Never work under a load held only by a jack; support it with rated jack stands or cribbing.

The Norco 76512A is a 12 ton low height hydraulic bottle jack for heavy duty truck, agriculture, construction, mining, oil field, automotive and marine work. At just 6.69 inches closed, it gets into tight spots where a standard height jack will not fit.

It lifts to 13.19 inches with 3.74 inches of hydraulic lift and a 2.76 inch extension screw. No-leak Uniweld construction, internally machined oil passages and close tolerances give it a long service life.

A Parkerized pump piston, ram and extension screw resist rust, and the lightweight forged base keeps the weight down. Safety bypass and overload systems protect the cylinder, and an integrated carry handle makes it easy to bring along.

This listing includes 1 bottle jack with a two-piece handle.

Features

  • Lifts, pushes, spreads and presses in low clearance spots on trucks, farm equipment and shop jobs.
  • 12 ton capacity with a 6.69 in minimum and 13.19 in maximum height, 3.74 in stroke and 2.76 in screw.
  • Low height design with a 5.51 x 5.51 in base for loads that sit too low for a standard bottle jack.
  • No-leak Uniweld body, Parkerized pump piston, ram and screw, and a lightweight forged base.
  • Includes 1 jack with a two-piece zinc plated handle and an integrated carry handle.
