Description
The Norco 76412 is a 12 ton standard height hydraulic bottle jack for heavy duty truck, agriculture, construction, mining, oil field, automotive and marine work. Use it anywhere you need to lift, push, spread, bend, press or straighten.
It starts at 9.45 inches closed and reaches 18.9 inches with 5.91 inches of hydraulic lift and a 3.54 inch extension screw. No-leak Uniweld construction and a 50% safety overload factor make it a jack you can count on job after job.
A Parkerized pump piston, ram and extension screw resist rust, and the lightweight forged base keeps the weight down. Safety bypass and overload systems protect the cylinder, and an integrated carry handle makes it easy to bring along.

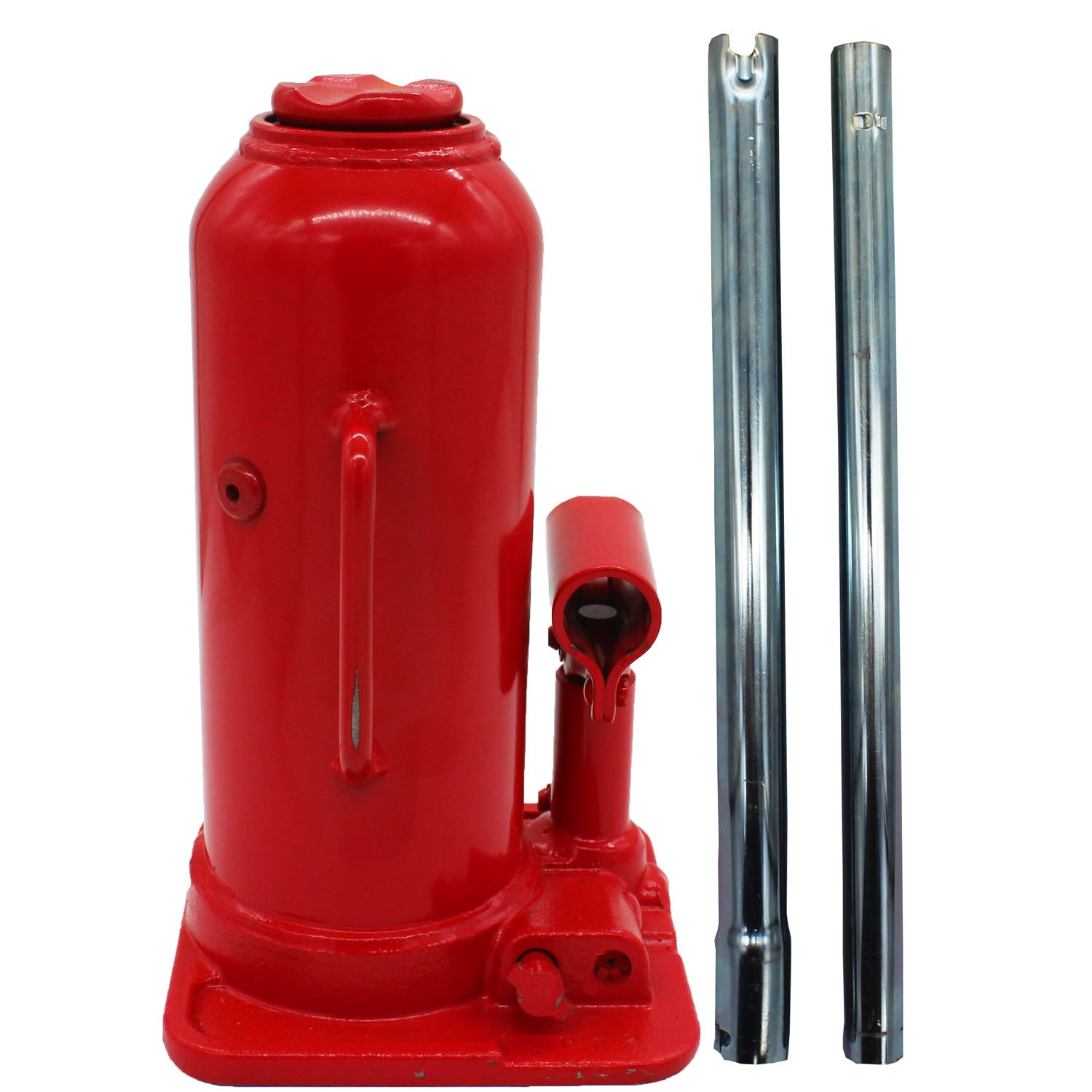

This listing includes 1 bottle jack with a two-piece handle.
Norco 76412 12 Ton Standard Height Hydraulic Bottle Jack
$243.98
Documents
Jack Specifications
- Capacity
- 24,000 lb
- Lift range
- 9.45 to 18.9 in
- Hydraulic lift
- 5.91 in
- Operation
- Manual hydraulic
| Capacity | 24,000 lb |
|---|---|
| Min height | 9.45 in |
| Max height | 18.9 in |
| Hydraulic lift | 5.91 in |
| Extension screw | 3.54 in |
| Operation | Manual hydraulic |
|---|---|
| Base size | 5.51 x 5.51 in |
| Warranty | Limited lifetime warranty |
| Brand | Norco |
|---|---|
| MPN | 76412 |
| SKU | NOR76412 |
| Shipping weight | 17.89 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Never work under a load held only by a jack; support it with rated jack stands or cribbing.
The Norco 76412 is a 12 ton standard height hydraulic bottle jack for heavy duty truck, agriculture, construction, mining, oil field, automotive and marine work. Use it anywhere you need to lift, push, spread, bend, press or straighten.
It starts at 9.45 inches closed and reaches 18.9 inches with 5.91 inches of hydraulic lift and a 3.54 inch extension screw. No-leak Uniweld construction and a 50% safety overload factor make it a jack you can count on job after job.
A Parkerized pump piston, ram and extension screw resist rust, and the lightweight forged base keeps the weight down. Safety bypass and overload systems protect the cylinder, and an integrated carry handle makes it easy to bring along.
This listing includes 1 bottle jack with a two-piece handle.
