Description

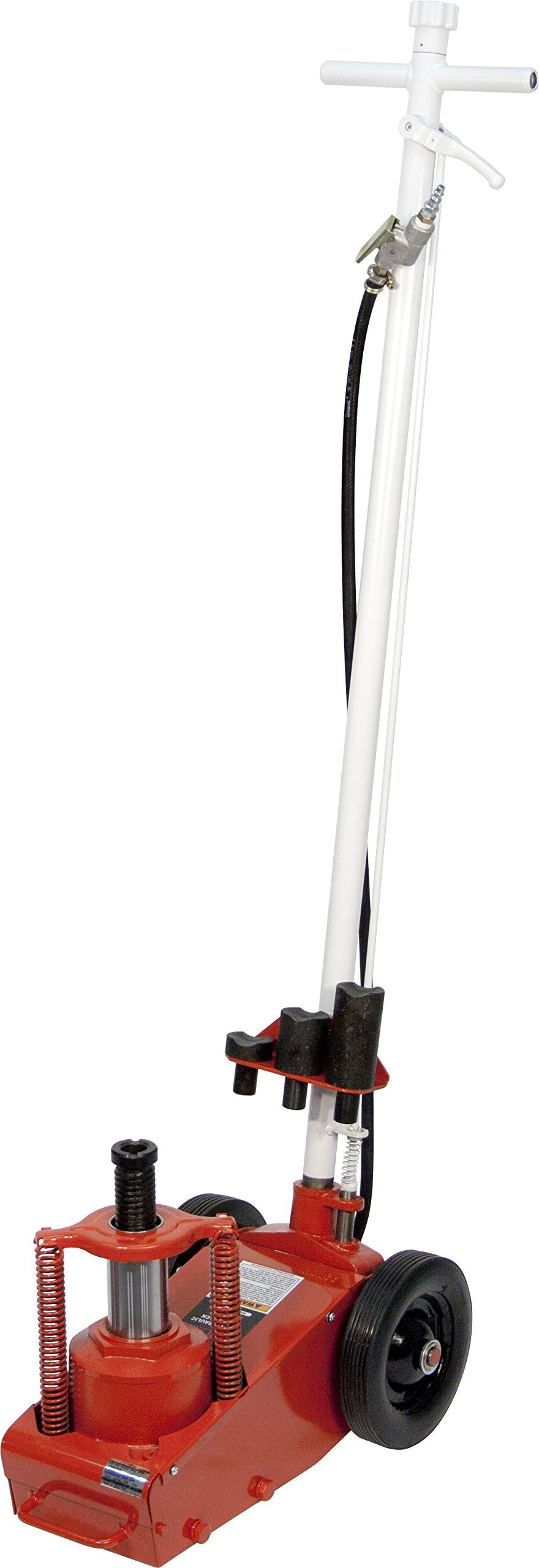

The Norco 72200D is a 22 ton air/hydraulic axle jack built for heavy duty trucks, agricultural machines and heavy construction equipment. Its compact chassis fits between tandem wheels, and the 50 inch T handle lets you steer it under vehicles with low overhang.
The load release sits on top of the handle and works in any handle position, while a locking lever holds the handle vertical, horizontal or at 45 degrees. A fast lifting air motor with an integrated filter does the pumping, and the self-retracting ram comes back down on its own.
Three removable 2 inch saddles (3/4, 2-1/4 and 4 inch high) ride in a holder on the handle, so the right height is always with the jack. Safety bypass and overload systems protect the cylinder and keep the jack within the ASME/PASE load limit.
This listing includes 1 jack with the standard saddle and 2 extension adapters.
Norco 72200D 22 Ton Air/Hydraulic Axle Jack with 2 Saddle Adapters
$1,109.03
Documents
Jack Specifications
- Capacity
- 44,000 lb
- Min height
- 9 in
- Hydraulic lift
- 4-3/4 in
- Operation
- Air/hydraulic
| Capacity | 44,000 lb |
|---|---|
| Min height | 9 in |
| Hydraulic lift | 4-3/4 in |
| Extension screw | 4-1/4 in |
| Saddle diameter | 2 in |
| Operation | Air/hydraulic |
|---|---|
| Air pressure | 85 to 145 PSI |
| Handle length | 50 in |
| Length | 20 in |
| Width | 13 in |
| Standards | ASME/PASE |
| Warranty | Limited lifetime warranty |
| Kit contents | Standard saddle 2-1/4 in extension adapter 4 in extension adapter Handle-mounted saddle holder |
| Brand | Norco |
|---|---|
| MPN | 72200D |
| SKU | NOR72200D |
| Shipping weight | 97 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Never work under a load held only by a jack; support it with rated jack stands or cribbing.
The Norco 72200D is a 22 ton air/hydraulic axle jack built for heavy duty trucks, agricultural machines and heavy construction equipment. Its compact chassis fits between tandem wheels, and the 50 inch T handle lets you steer it under vehicles with low overhang.
The load release sits on top of the handle and works in any handle position, while a locking lever holds the handle vertical, horizontal or at 45 degrees. A fast lifting air motor with an integrated filter does the pumping, and the self-retracting ram comes back down on its own.
Three removable 2 inch saddles (3/4, 2-1/4 and 4 inch high) ride in a holder on the handle, so the right height is always with the jack. Safety bypass and overload systems protect the cylinder and keep the jack within the ASME/PASE load limit.
This listing includes 1 jack with the standard saddle and 2 extension adapters.
