Kenda Rock Grip K601 Skid Steer Tire 10ply 12-16.5
Kenda Rock Grip K601 Skid Steer Tire 10ply 12-16.5
Kenda Rock Grip K601 Skid Steer Tire 10ply 12-16.5
Roll over image to zoom in Click on image to zoom
Kenda Rock Grip K601 Skid Steer Tire 10ply 12-16.5Kenda Rock Grip K601 Skid Steer Tire 10ply 12-16.5Kenda Rock Grip K601 Skid Steer Tire 10ply 12-16.5

Kenda K601 Rock Grip Skid Steer Tire 10ply 12-16.5

KendaSKU: TIR200525
No reviews
Price:
$437.69

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

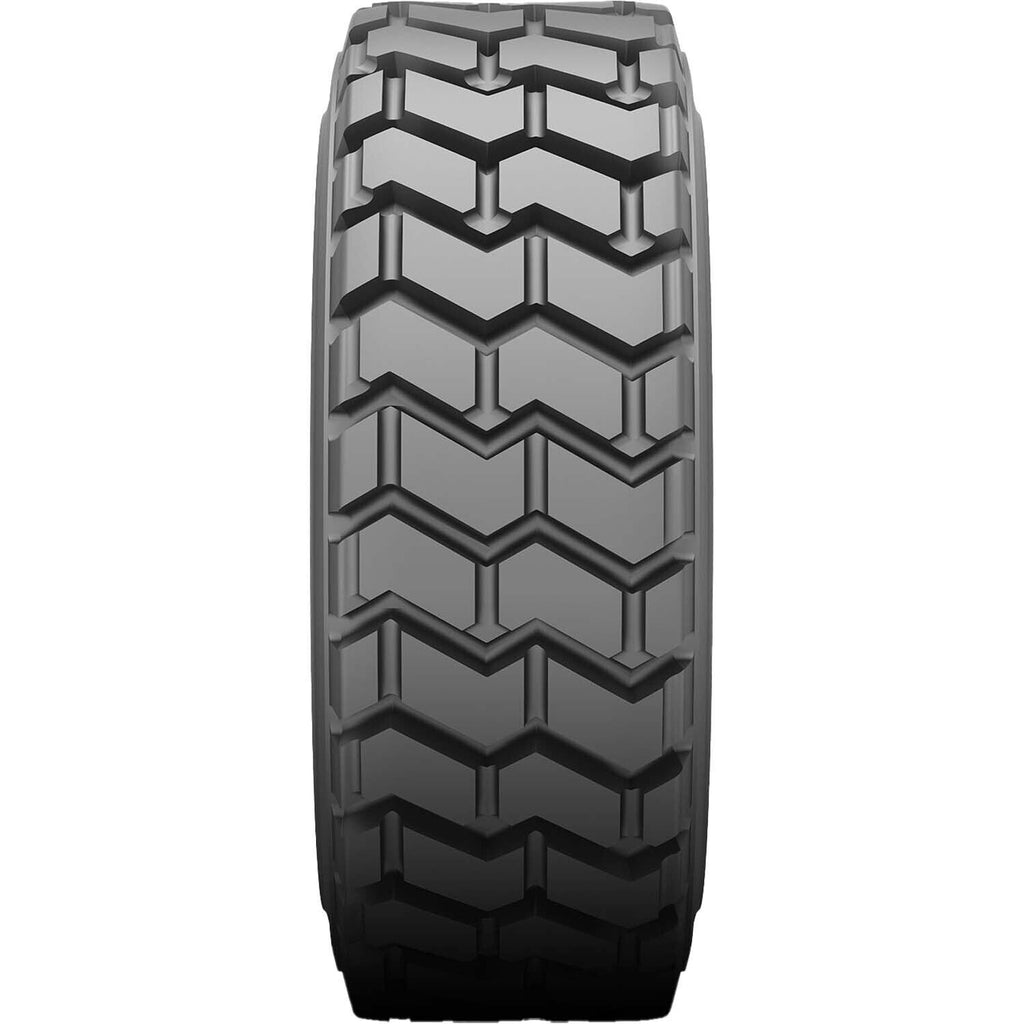

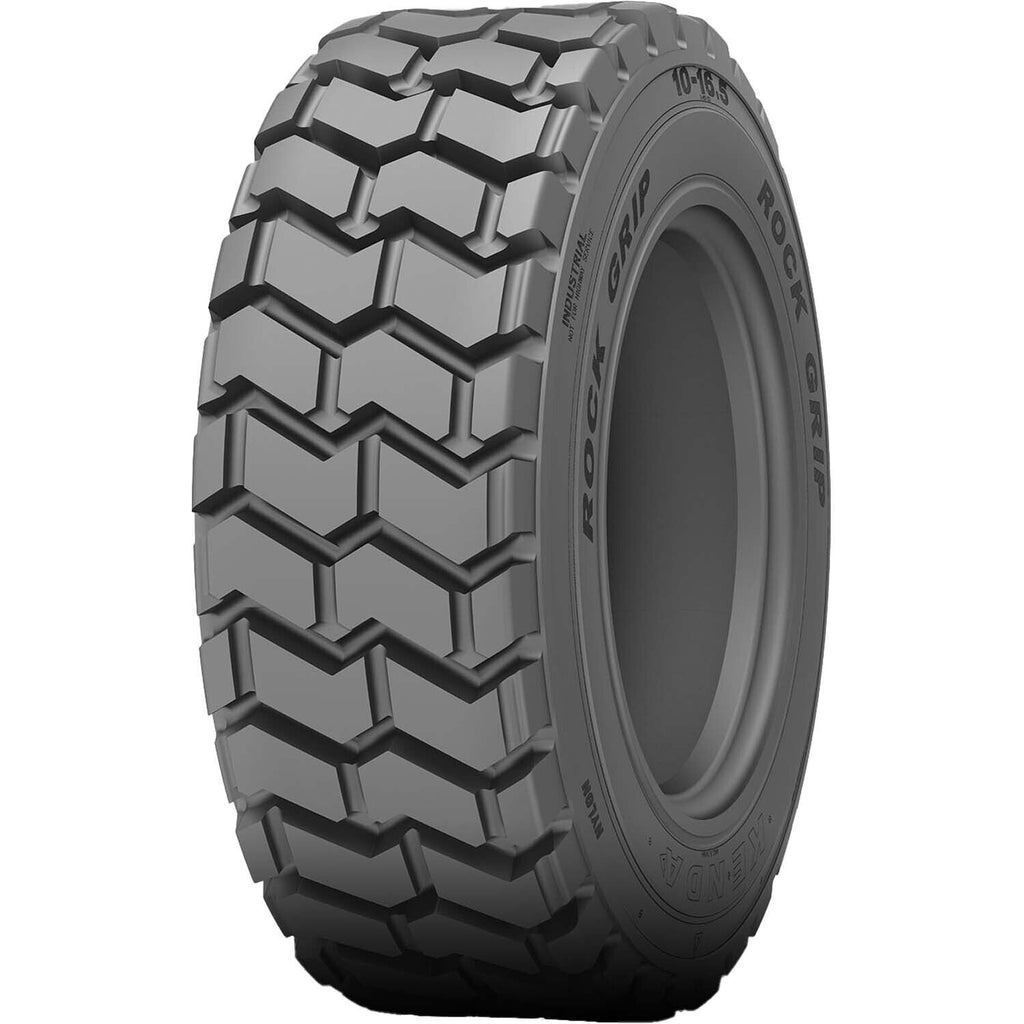

The K601 Rock Grip is a skid steer tire for gravel, rock and job sites. Its chevron tread improves grip and stability on hard-packed and uneven ground, reinforced heavy-duty sidewalls resist cuts, impacts and abrasion, and a puncture-resistant, slow-wearing compound gives long service life. An integrated rim guard protects the wheel and bead from rocks and curbs.

Tire Specifications

Tire size
12-16.5Decode this size
Overall diameter
33.5 in
Section width
12.9 in
Ply rating
10
Size & fitment
Tire size12-16.5
Rim diameter16.5 in
Approved rim widths9.75 in
PositionAll Positions
Vehicle applicationIndustrial
Construction
ConstructionBias
Ply rating10
Load rangeE
Tube requirementTubeless
Dimensions
Overall diameter (actual)33.5 in
Section width (actual)12.9 in
Tread depth (new)24/32"
Load & speed
Load index140
Max load per tire (single)5,600 lb
Cold pressure at max load65 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandKenda
MPN1060116120
SKUTIR200525
Shipping weight83.7 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

12.9 in section width 33.5 in overall diameter 16.5 in rim diameter 9.75 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size12-16.5
Overall diameter33.5 in
Section width12.9 in
Rim diameter16.5 in
Approved rim width9.75 in
Tread depth (new)24/32"
Fitment GuideWhat Does 12-16.5 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The K601 Rock Grip is a skid steer tire for gravel, rock and job sites. Its chevron tread improves grip and stability on hard-packed and uneven ground, reinforced heavy-duty sidewalls resist cuts, impacts and abrasion, and a puncture-resistant, slow-wearing compound gives long service life. An integrated rim guard protects the wheel and bead from rocks and curbs.

Features

  • Bites into rock and hard, broken ground where a softer utility tread would slide, with a casing built to resist the sidewall cuts that terrain causes.
  • Heavy duty sidewall. 10 ply rated in Load Range E, carrying up to 5600 lbs at 65 PSI (load index 140).
  • Rim guard to protect the rim. Measures 33.5 in mounted diameter, 12.9 in mounted width, a 9.75 in rim.
  • Non highway use only. 24/32 in tread depth.
  • Sold as a tire only, wheel not included.
