Description

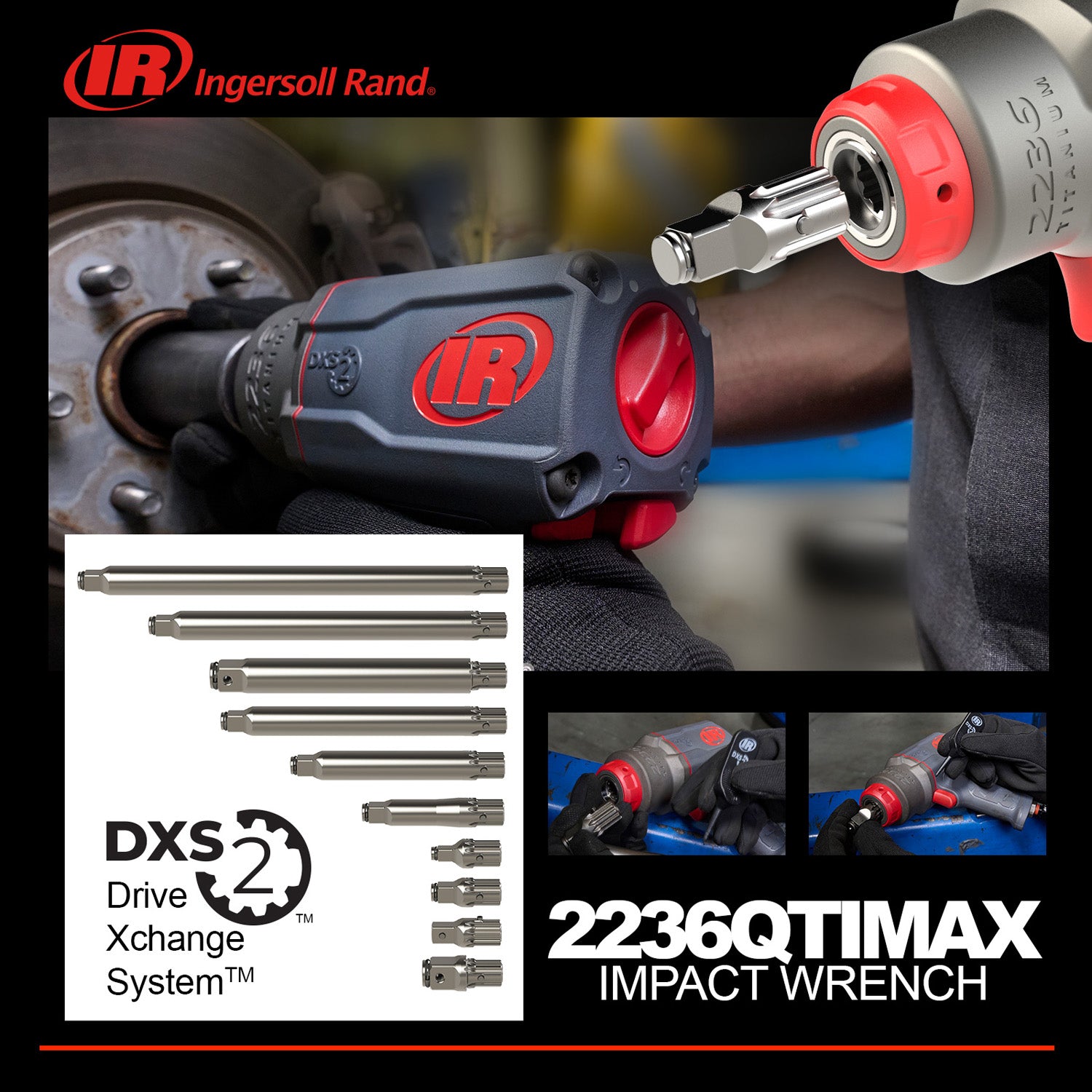

The Ingersoll Rand 2236QTiMAX-2 is a quiet 1/2 inch drive air impact wrench with the Drive Xchange System and the reach to get into deep wheels. It delivers 1,500 ft-lb of breakaway torque and 1,000 ft-lb of max reverse torque for lug nuts, truck wheels and seized hardware.

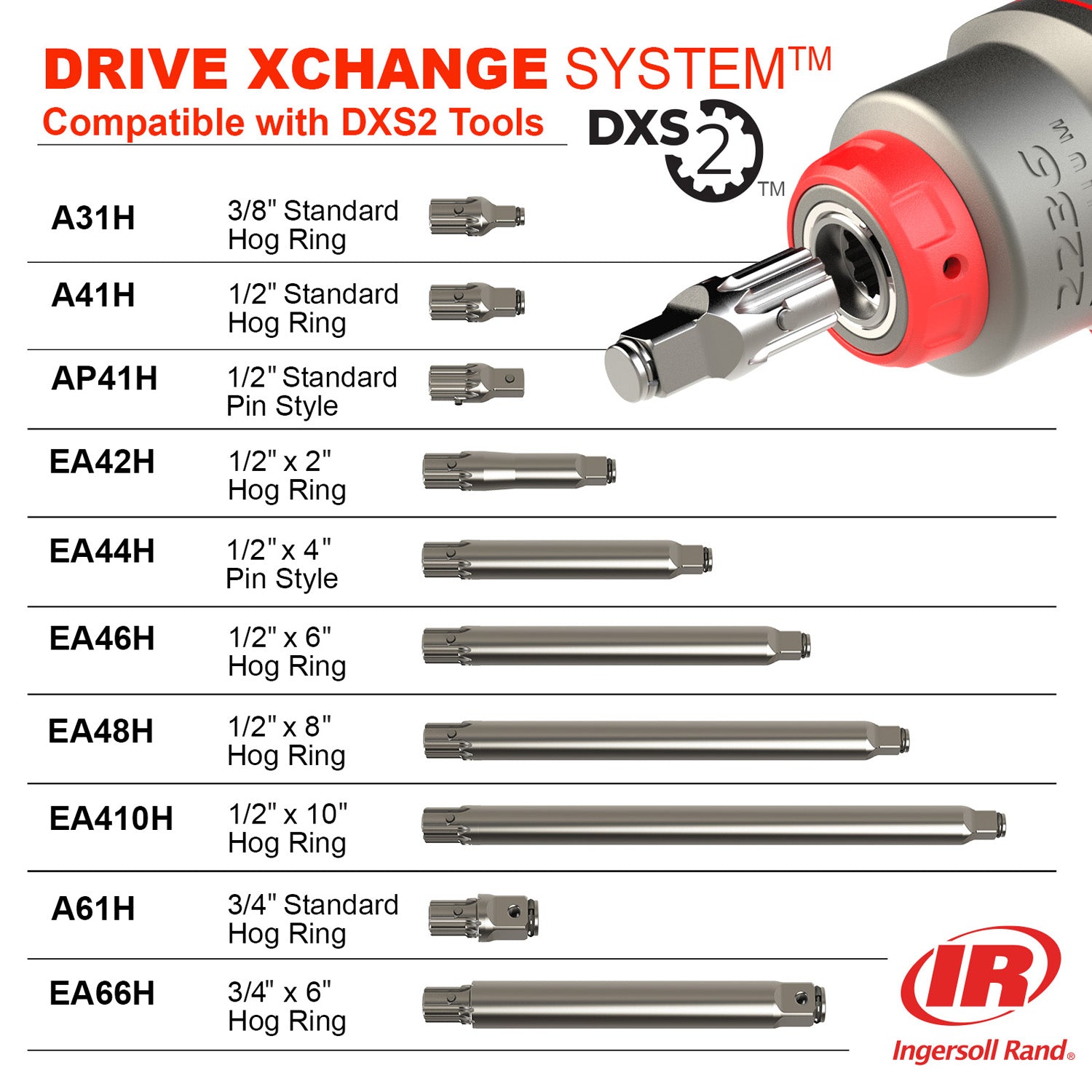

This is the 2 inch extended anvil model, so you can hit recessed lug nuts without stacking an extension, at 9.37 inches long and 4.6 lb. The Drive Xchange System lets you swap anvils without torque-draining adapters, with 3/8, 1/2 and 3/4 inch standard length drives and extended anvils up to 10 inches sold separately.

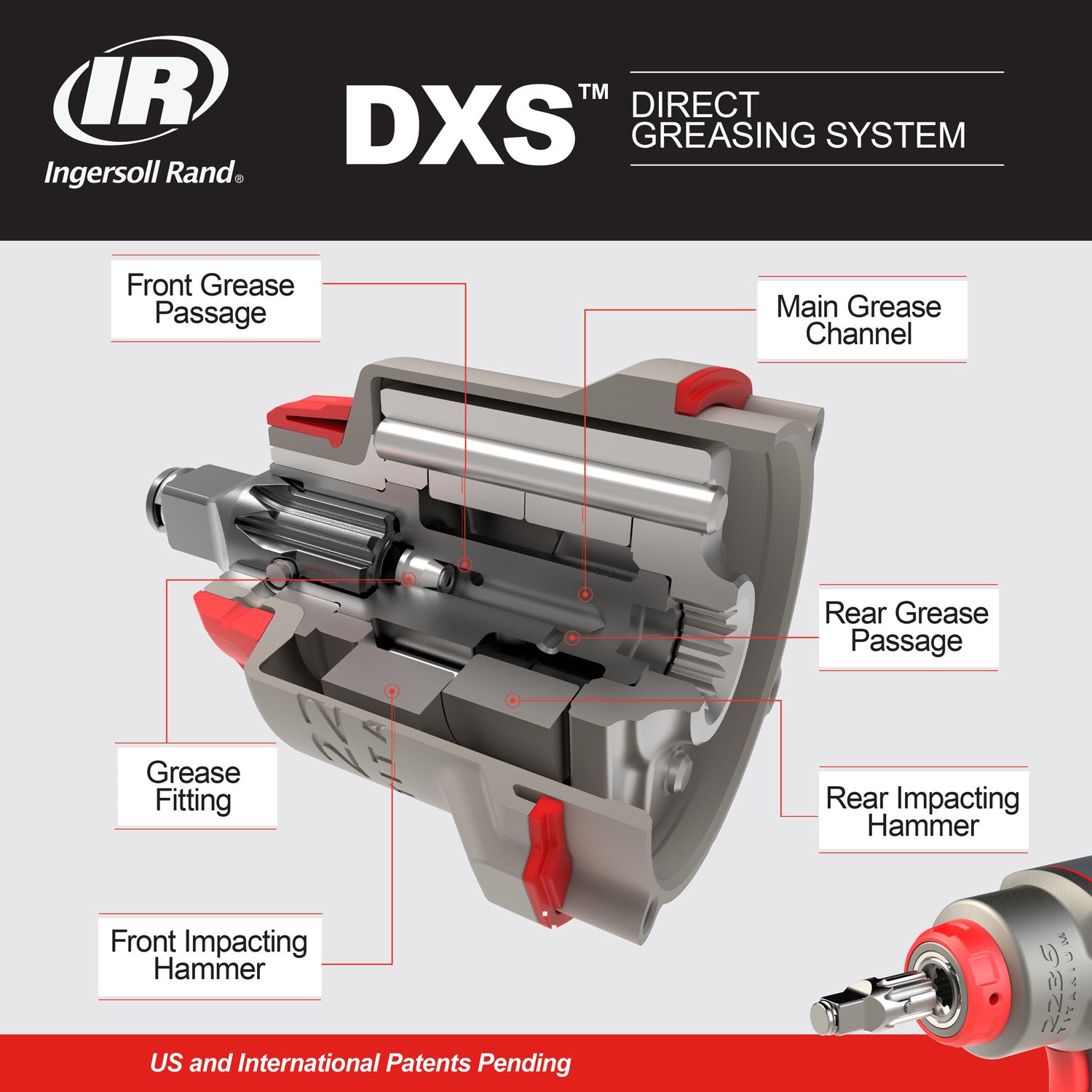

The increased dwell motor lands 1,350 blows per minute, and a new airflow path makes it 4 dB quieter than the design before it, at 94.2 dB(A). The two-piece anvil lets you grease the hammers directly, and the titanium hammer case keeps the business end protected.
Feed it 90 psi through a 3/8 inch hose to the 1/4 inch NPT inlet, where it averages 9 CFM and draws 36 CFM under load. It comes with a two-year warranty.
This listing includes one 2236QTiMAX-2 impact wrench with the 2 inch extended anvil.
Ingersoll Rand 2236TIMAX2 1/2" Pneumatic DXS 2 Impact Wrench with 2" Shank 1500 Ft/Lb
$411.99
Documents
Impact Wrench Specifications
- Drive
- 1/2 in
- Max torque
- 1,500 ft-lb
- Impacts/min
- 1,350
- Anvil
- 2 in extended
| Drive size | 1/2 in |
|---|---|
| Anvil | 2 in extended |
| Max torque | 1,500 ft-lb |
| Impacts per minute | 1,350 |
| Power source | Pneumatic |
|---|---|
| Air inlet | 1/4 in |
| Min hose size | 3/8 in |
| Air consumption (avg) | 9 CFM |
| Operating pressure | 90 PSI |
| Length | 9.37 in |
| Tool weight | 4.6 lb |
| Warranty | 2 years |
| Compatible with | Ingersoll Rand DXS (Drive Xchange System) anvils |
|---|
| Brand | Ingersoll Rand |
|---|---|
| MPN | 2236QTIMAX-2 |
| SKU | IRT2236QTIMAX-2 |
| Shipping weight | 5.66 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Air tool ratings are at 90 PSI; use at least the hose size shown.
The Ingersoll Rand 2236QTiMAX-2 is a quiet 1/2 inch drive air impact wrench with the Drive Xchange System and the reach to get into deep wheels. It delivers 1,500 ft-lb of breakaway torque and 1,000 ft-lb of max reverse torque for lug nuts, truck wheels and seized hardware.
This is the 2 inch extended anvil model, so you can hit recessed lug nuts without stacking an extension, at 9.37 inches long and 4.6 lb. The Drive Xchange System lets you swap anvils without torque-draining adapters, with 3/8, 1/2 and 3/4 inch standard length drives and extended anvils up to 10 inches sold separately.
The increased dwell motor lands 1,350 blows per minute, and a new airflow path makes it 4 dB quieter than the design before it, at 94.2 dB(A). The two-piece anvil lets you grease the hammers directly, and the titanium hammer case keeps the business end protected.
Feed it 90 psi through a 3/8 inch hose to the 1/4 inch NPT inlet, where it averages 9 CFM and draws 36 CFM under load. It comes with a two-year warranty.
This listing includes one 2236QTiMAX-2 impact wrench with the 2 inch extended anvil.
