Description

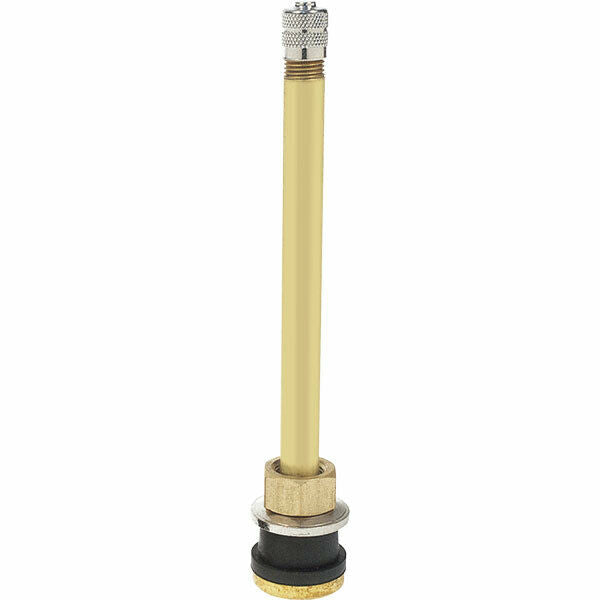

The Dill TR573 (VS-573-WZA) is a straight brass clamp-in valve for tubeless truck wheels with a .625 inch valve hole. It is part of Dill's 570 series for .625 inch steel wheels and comes standard with a high-temperature, ozone-resistant grommet.
This is the TR573, with 4-3/8 inches of effective length, rated to 200 PSI. A fresh valve whenever the old one is worn or corroded is cheap insurance against a slow leak down the road.

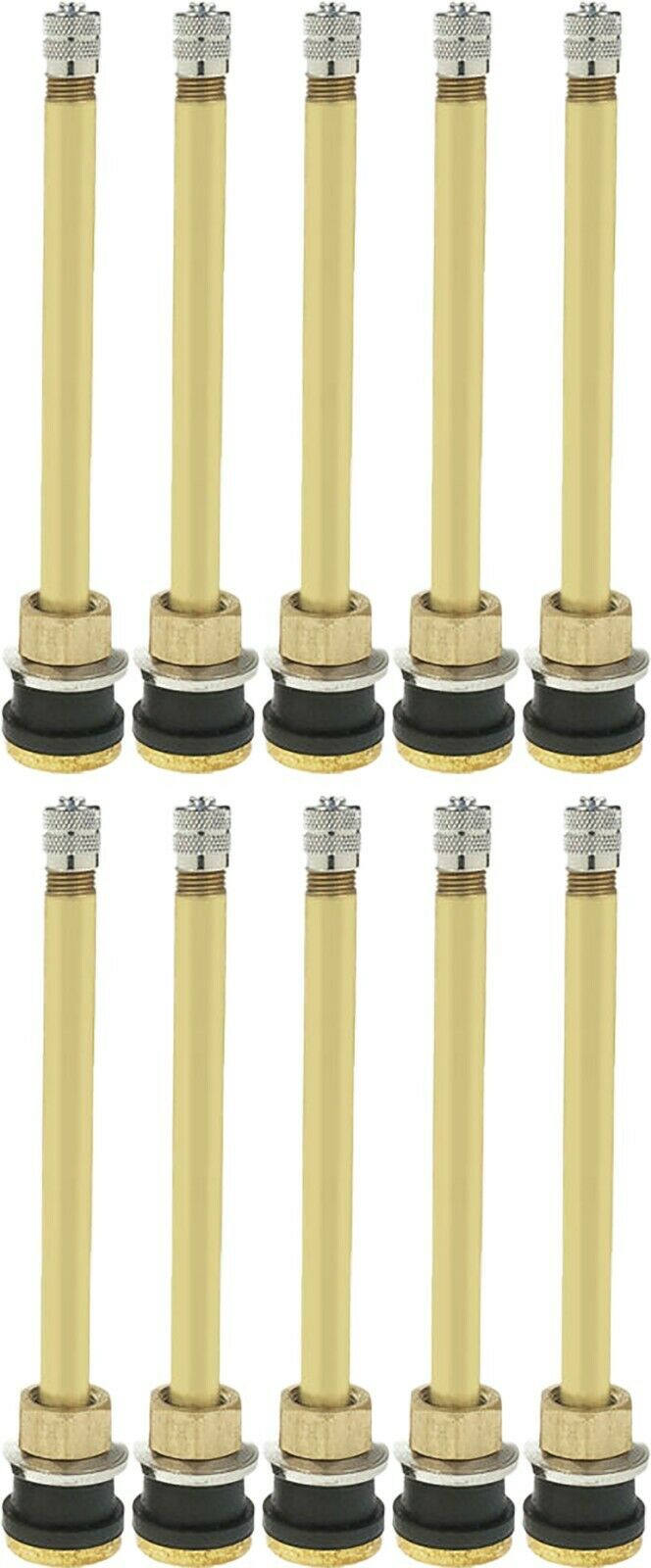

This listing includes 10 valve stems.
Dill TR573 4-3/8" Brass Clamp-In Truck Valve Stem for .625 Hole Pack of 10
$30.28
Documents
Valve Stem Specifications
- TR number
- TR573
- Valve hole
- .625 in
- Length
- 4.38 in
- Bend
- Straight
| TR number | TR573 |
|---|---|
| Valve hole | .625 in |
| Mount | Clamp-in |
| Vehicle application | Truck |
| Length | 4.38 in |
|---|---|
| Bend angle | Straight |
| Seal | Grommet |
| Max pressure | 200 PSI |
| Installation torque | Nut 35 to 55 in-lb |
| Material | Brass |
| Pack quantity | 10 |
| Interchange part numbers | VS-573-R, VS-573-WZA |
|---|
| Brand | Dill |
|---|---|
| MPN | TR573-10PK |
| SKU | DLV573[B] |
| Shipping weight | 1.2 lb |
Specifications for this option are not available yet.
Specifications are from the manufacturer's published data where available. Check your rim's valve hole size and your TPMS sensor before ordering.
