Description

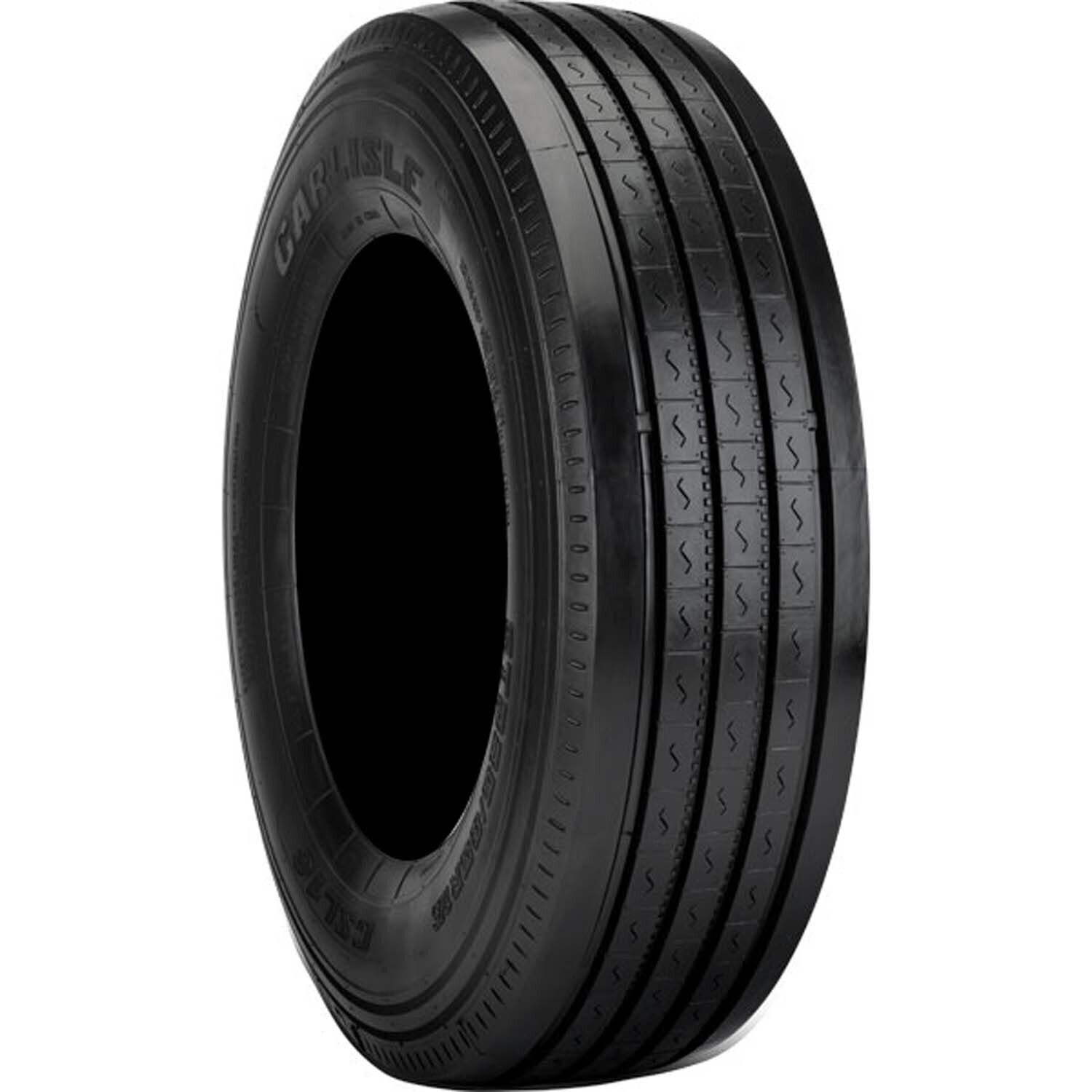

The CSL 16 is an all-steel body ply radial trailer tire for industrial, heavy-duty and long-haul use. Its industrial highway tread design delivers extended service life, and the robust construction protects against the elements. The CSL 16 line offers load ratings of up to 4,400 lbs.
- Tire sizeST235/80R16
- Rim16 in
- Rim width6.5 in
- Load rangeG (14 ply)
- Max load4,080 lb @ 110 PSI
- TypeRadial
Quantity
Carlstar CSL 16 All Steel Radial Trailer Tire LRG 14ply ST235/80R16
$289.68
Documents
Tire Specifications
- Tire size
- ST235/80R16Decode this size
- Overall diameter
- 30.6 in
- Section width
- 9 in
- Ply rating
- 14
| Tire size | ST235/80R16 |
|---|---|
| Rim diameter | 16 in |
| Approved rim widths | 6.5 in |
| Position | All Positions |
| Vehicle application | Trailer |
| Construction | Radial |
|---|---|
| Ply rating | 14 |
| Load range | G |
| Overall diameter (actual) | 30.6 in |
|---|---|
| Section width (actual) | 9 in |
| Tread depth (new) | 10/32" |
| Load index | 129 |
|---|---|
| Max load per tire (single) | 4,080 lb |
| Cold pressure at max load | 110 PSI |
| Speed rating | M |
| Package contents | Tire only |
|---|---|
| Tires included | 1 |
| Brand | Carlstar |
|---|---|
| MPN | 6H08101 |
| SKU | TIR1602 |
| Shipping weight | 56.55 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.
Mounted dimensions
| Tire size | ST235/80R16 |
|---|---|
| Overall diameter | 30.6 in |
| Section width | 9 in |
| Rim diameter | 16 in |
| Approved rim width | 6.5 in |
| Tread depth (new) | 10/32" |
Dimensions for this option are not available yet.
The CSL 16 is an all-steel body ply radial trailer tire for industrial, heavy-duty and long-haul use. Its industrial highway tread design delivers extended service life, and the robust construction protects against the elements. The CSL 16 line offers load ratings of up to 4,400 lbs.
Features
