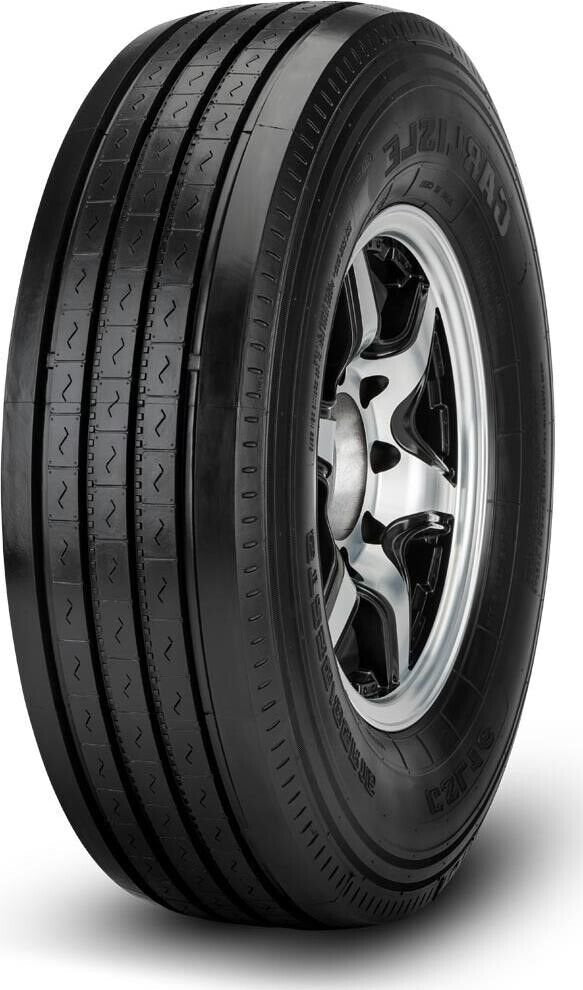

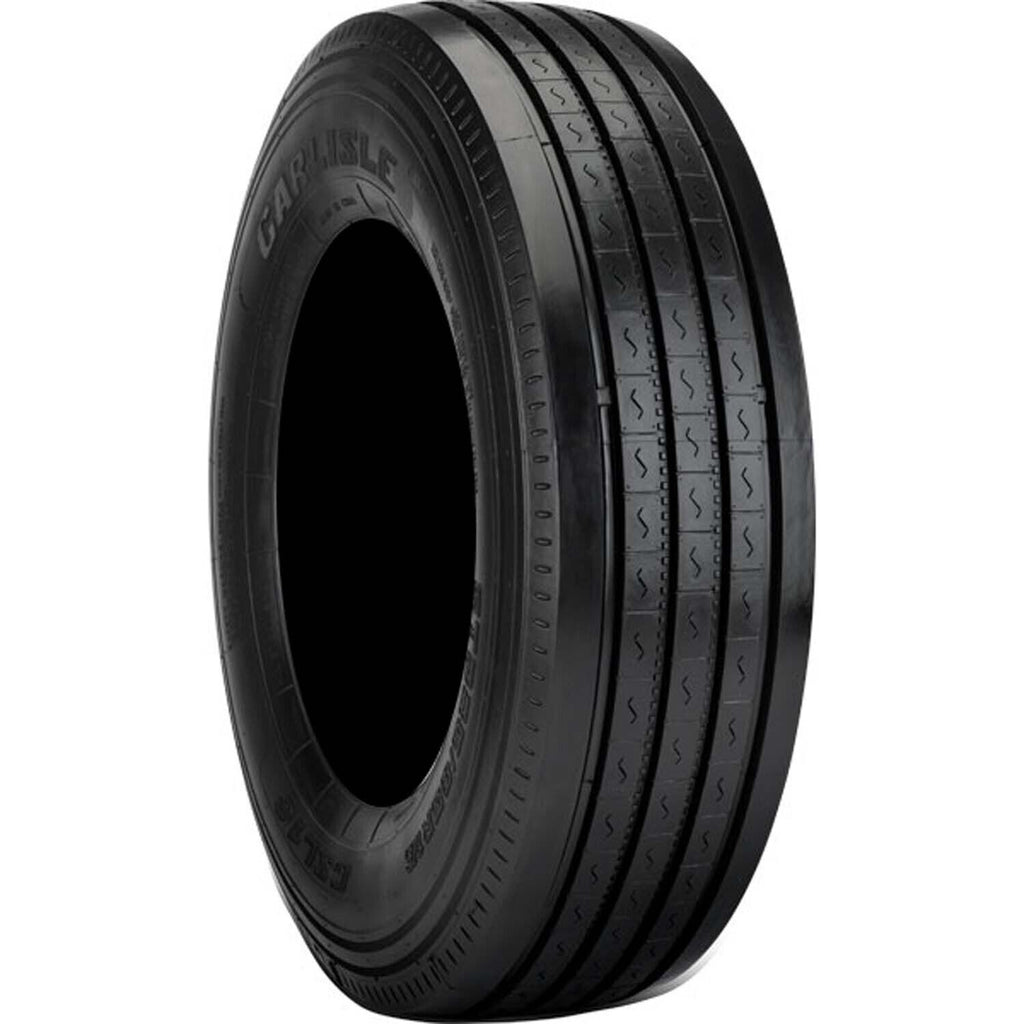

Carlstar CSL 16 All Steel Radial Trailer Tire LRF 12ply ST225/75R15

CarlstarSKU: TIR1600
No reviews
Price:
$253.68

Description

The CSL 16 is an all-steel body ply radial trailer tire for industrial, heavy-duty and long-haul use. Its industrial highway tread design delivers extended service life, and the robust construction protects against the elements. The CSL 16 line offers load ratings of up to 4,400 lbs.

Tire Specifications

Tire size
ST225/75R15Decode this size
Overall diameter
28.31 in
Section width
8.7 in
Ply rating
12
Size & fitment
Tire sizeST225/75R15
Rim diameter15 in
Approved rim widths6 in
PositionAll Positions
Vehicle applicationTrailer
Construction
ConstructionRadial
Ply rating12
Load rangeF
Dimensions
Overall diameter (actual)28.31 in
Section width (actual)8.7 in
Tread depth (new)11/32"
Load & speed
Load index120
Max load per tire (single)3,080 lb
Cold pressure at max load95 PSI
Speed ratingM
What's included
Package contentsTire only
Tires included1
General
BrandCarlstar
MPN6H09881
SKUTIR1600
Shipping weight45 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

8.7 in section width 28.31 in overall diameter 15 in rim diameter 6 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire sizeST225/75R15
Overall diameter28.31 in
Section width8.7 in
Rim diameter15 in
Approved rim width6 in
Tread depth (new)11/32"
Fitment GuideWhat Does ST225/75R15 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The CSL 16 is an all-steel body ply radial trailer tire for industrial, heavy-duty and long-haul use. Its industrial highway tread design delivers extended service life, and the robust construction protects against the elements. The CSL 16 line offers load ratings of up to 4,400 lbs.

Features

  • 1 Carlstar CSL tire
  • Industrial highway tread design. Measures ST225/75R15 with a 28.31 inch mounted diameter and 8.7 inch mounted width, and carries up to 3,080 lbs at 95 PSI (load index 120, speed rating M).
  • Extended highway service life
  • All-steel body for heavy loads
  • Tire Only - Wheel Not Included
