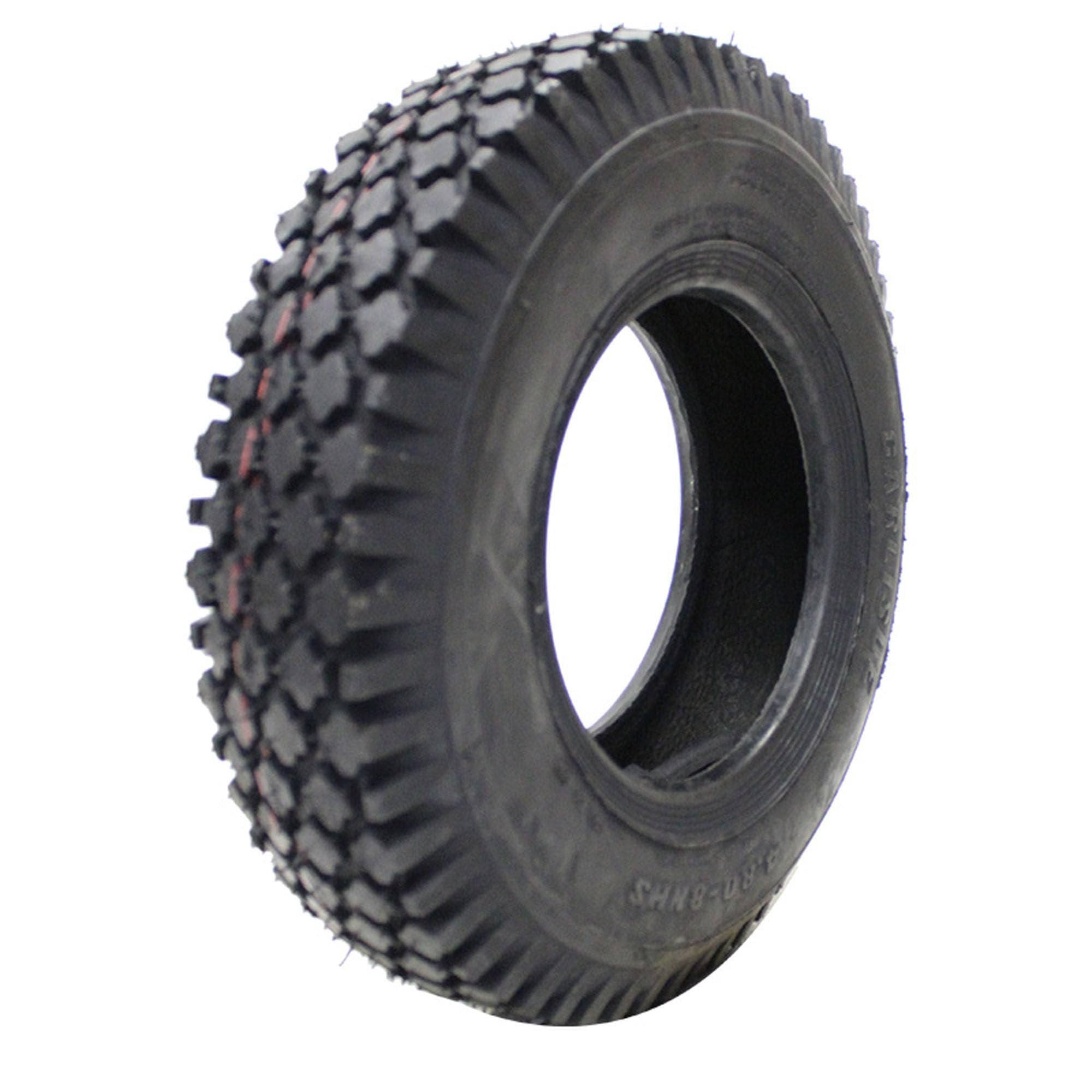

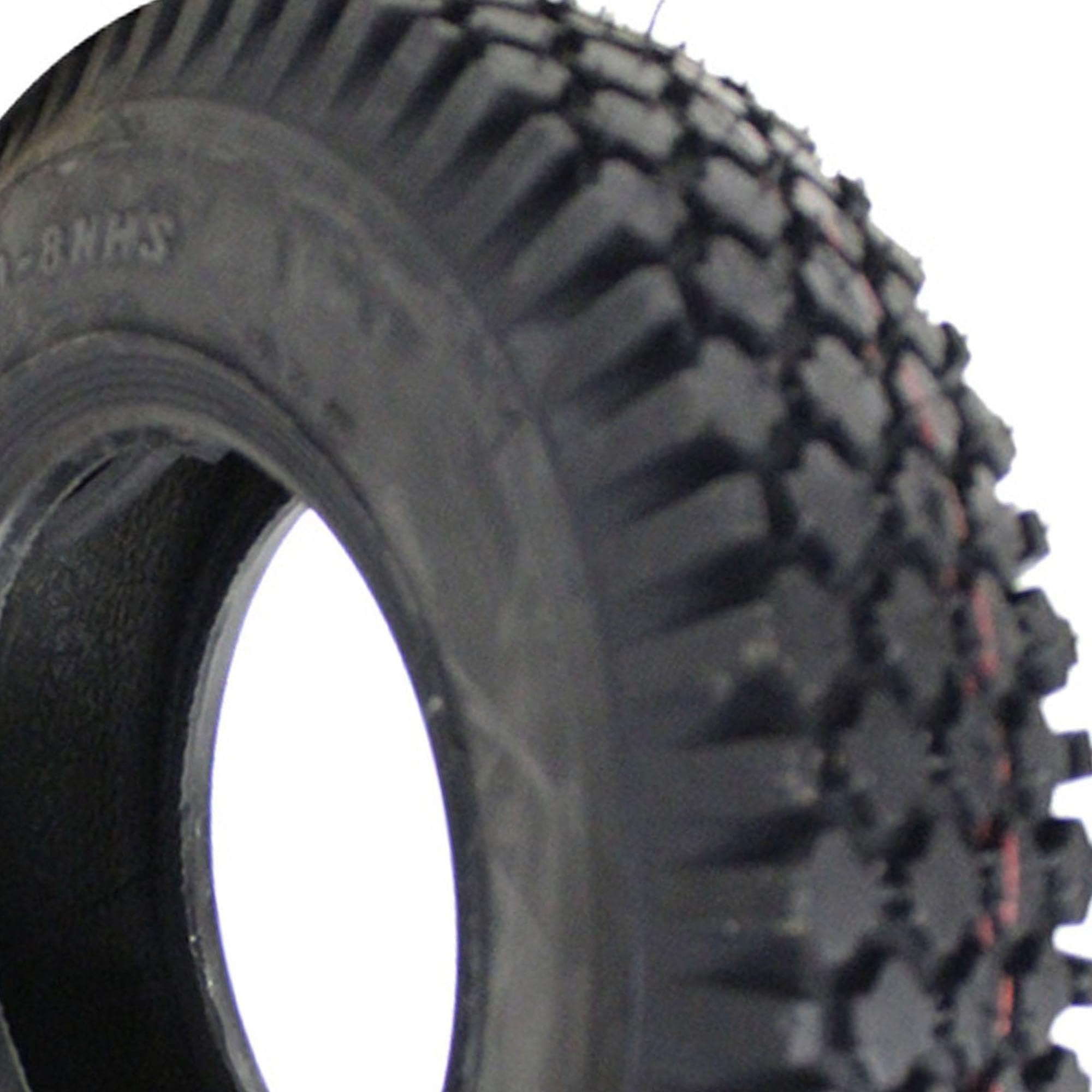

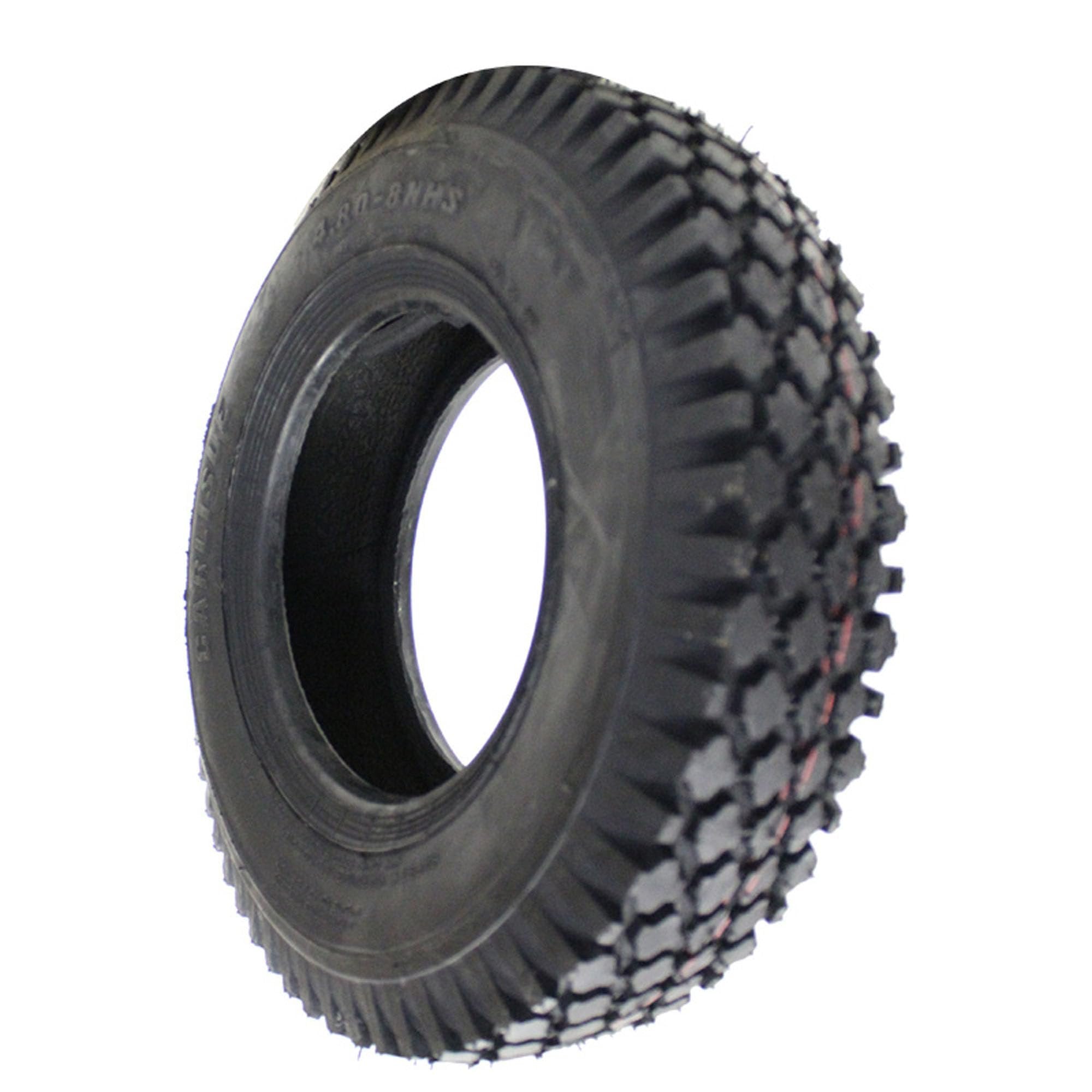

Carlisle Stud Utility Tire 4ply 4.80-8
Carlisle Stud Utility Tire 4ply 4.80-8
Carlisle Stud Utility Tire 4ply 4.80-8
Carlisle Stud Utility Tire 4ply 4.80-8
Roll over image to zoom in Click on image to zoom
Carlisle Stud Utility Tire 4ply 4.80-8Carlisle Stud Utility Tire 4ply 4.80-8Carlisle Stud Utility Tire 4ply 4.80-8Carlisle Stud Utility Tire 4ply 4.80-8

Carlisle Stud Utility Tire 4ply 4.80-8

CarlisleSKU: TIR3215
No reviews
Price:
$53.02

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

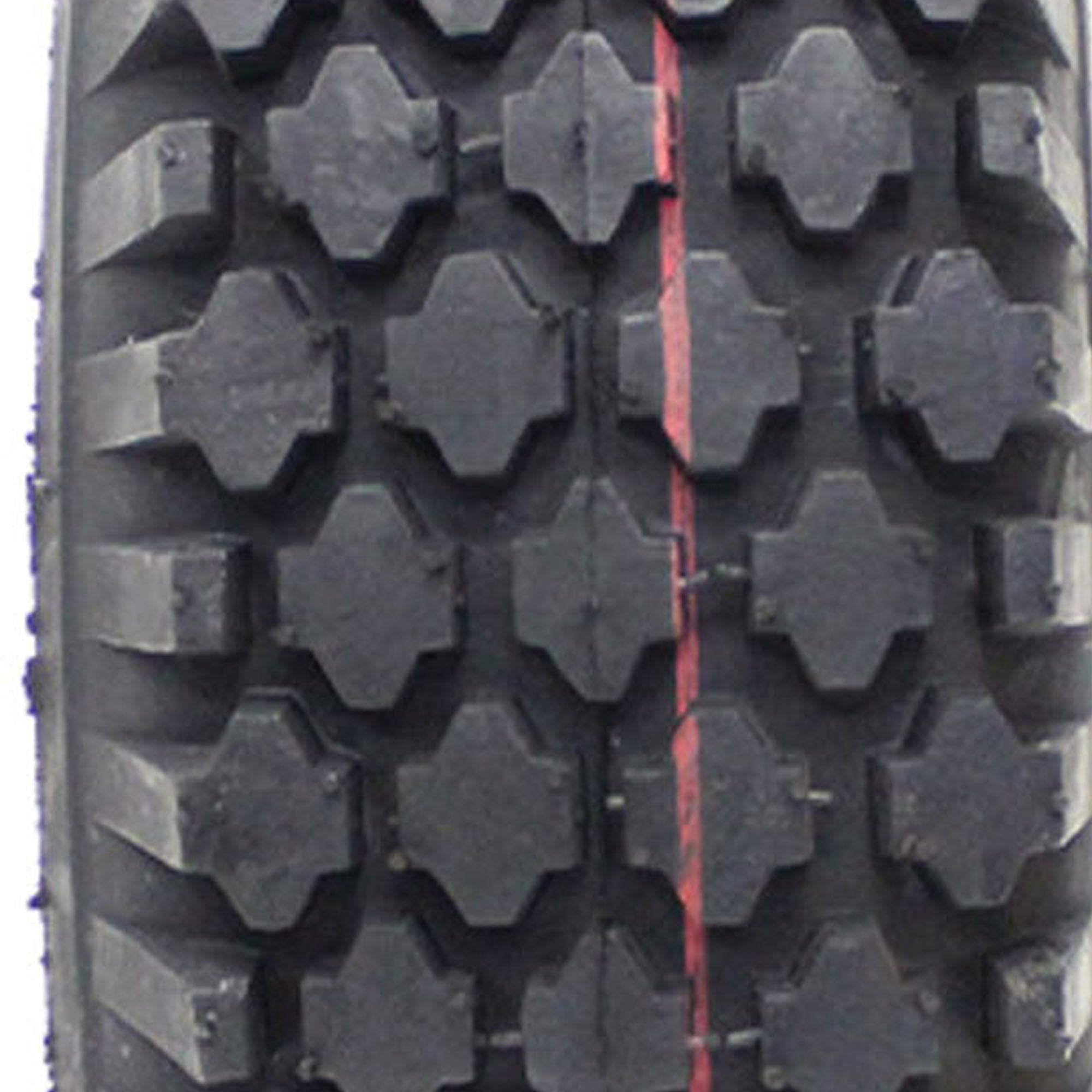

The Stud tire has an aggressive stud tread that grips on soft dirt, snow and pavement. It is a go-to replacement for hand trucks, pressure washers, industrial carts and other utility equipment that needs to keep rolling over rough ground.

Tire Specifications

Tire size
4.80-8Decode this size
Overall diameter
16.3 in
Section width
4.7 in
Ply rating
4
Size & fitment
Tire size4.80-8
Rim diameter8 in
Approved rim widths3.75 in
PositionAll Positions
Vehicle applicationLawn & Garden
TerrainDirt, snow and pavement
Construction
ConstructionBias
Ply rating4
Load rangeB
Tube requirementTubeless
Dimensions
Overall diameter (actual)16.3 in
Section width (actual)4.7 in
Tread depth (new)5.5/32"
Load & speed
Load index67
Max load per tire (single)675 lb
Cold pressure at max load42 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN5164291
SKUTIR3215
Shipping weight6.21 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

4.7 in section width 16.3 in overall diameter 8 in rim diameter 3.75 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size4.80-8
Overall diameter16.3 in
Section width4.7 in
Rim diameter8 in
Approved rim width3.75 in
Tread depth (new)5.5/32"
Fitment GuideWhat Does 4.80-8 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The Stud tire has an aggressive stud tread that grips on soft dirt, snow and pavement. It is a go-to replacement for hand trucks, pressure washers, industrial carts and other utility equipment that needs to keep rolling over rough ground.

Features

  • Aggressive stud tread grips on soft dirt, snow and pavement.
  • Measures 4.80-8 with a 16.3 inch mounted diameter and 4.7 inch mounted width, and carries up to 675 lbs at 42 PSI (load index 67, rated at 10 MPH).
  • Made for hand trucks, pressure washers, industrial carts and utility equipment. Mounts on a 3.75 inch wide rim.
  • Bias ply tubeless construction, 4 ply rated (Load Range B). Rugged stud tread for multi-surface grip. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
