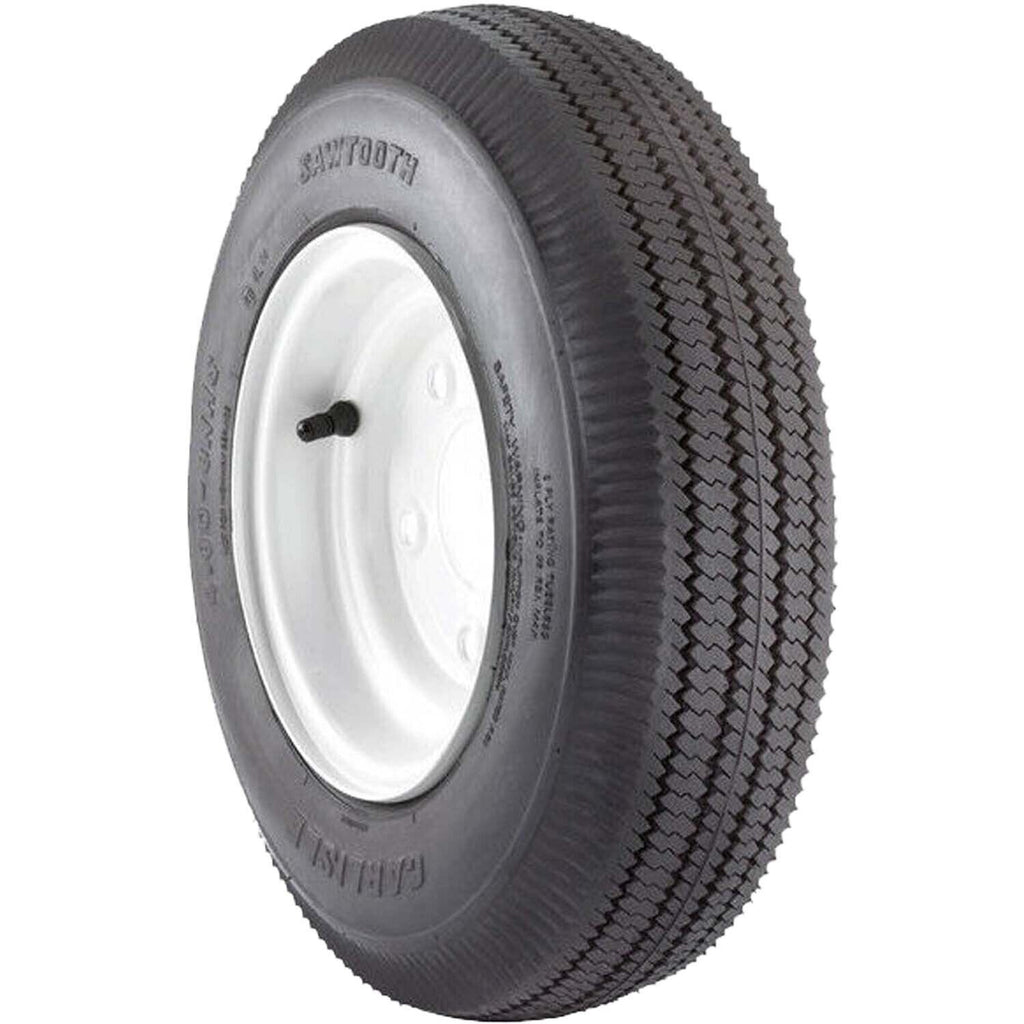

Carlisle Sawtooth Utility Tire 6ply 5.30-6
Carlisle Sawtooth Utility Tire 6ply 5.30-6
Carlisle Sawtooth Utility Tire 6ply 5.30-6
Roll over image to zoom in Click on image to zoom
Carlisle Sawtooth Utility Tire 6ply 5.30-6Carlisle Sawtooth Utility Tire 6ply 5.30-6Carlisle Sawtooth Utility Tire 6ply 5.30-6

Carlisle Sawtooth Utility Tire 6ply 5.30-6

CarlisleSKU: TIR3146
No reviews
Price:
$67.72

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Sawtooth tire delivers smooth-rolling performance for utility equipment. Its functional tread is a popular choice on wheelbarrows, pressure washers, generators, hand trucks and lawn equipment, rolling easily on pavement and hard ground.

Tire Specifications

Tire size
5.30/4.50-6Decode this size
Overall diameter
14.6 in
Section width
5.3 in
Ply rating
6
Size & fitment
Tire size5.30/4.50-6
Rim diameter6 in
Approved rim widths3.5 in
PositionAll Positions
Vehicle applicationLawn & Garden
TerrainPavement, dirt and gravel
Construction
ConstructionBias
Ply rating6
Load rangeC
Tube requirementTubeless
Dimensions
Overall diameter (actual)14.6 in
Section width (actual)5.3 in
Tread depth (new)6/32"
Load & speed
Load index76
Max load per tire (single)880 lb
Cold pressure at max load95 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN519067
SKUTIR3146
Shipping weight5.54 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

5.3 in section width 14.6 in overall diameter 6 in rim diameter 3.5 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size5.30/4.50-6
Overall diameter14.6 in
Section width5.3 in
Rim diameter6 in
Approved rim width3.5 in
Tread depth (new)6/32"
Fitment GuideWhat Does 5.30/4.50-6 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The Sawtooth tire delivers smooth-rolling performance for utility equipment. Its functional tread is a popular choice on wheelbarrows, pressure washers, generators, hand trucks and lawn equipment, rolling easily on pavement and hard ground.

Features

  • Sawtooth tread rolls smoothly on pavement and hard ground under a load.
  • Measures 5.30/4.50-6 with a 14.6 inch mounted diameter and 5.3 inch mounted width, and carries up to 880 lbs at 95 PSI (load index 76, rated at 10 MPH).
  • Made for wheelbarrows, pressure washers, generators, hand trucks and lawn equipment. Mounts on a 3.5 inch wide rim.
  • Bias ply tubeless construction, 6 ply rated (Load Range C). Functional sawtooth tread for material handling equipment. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
