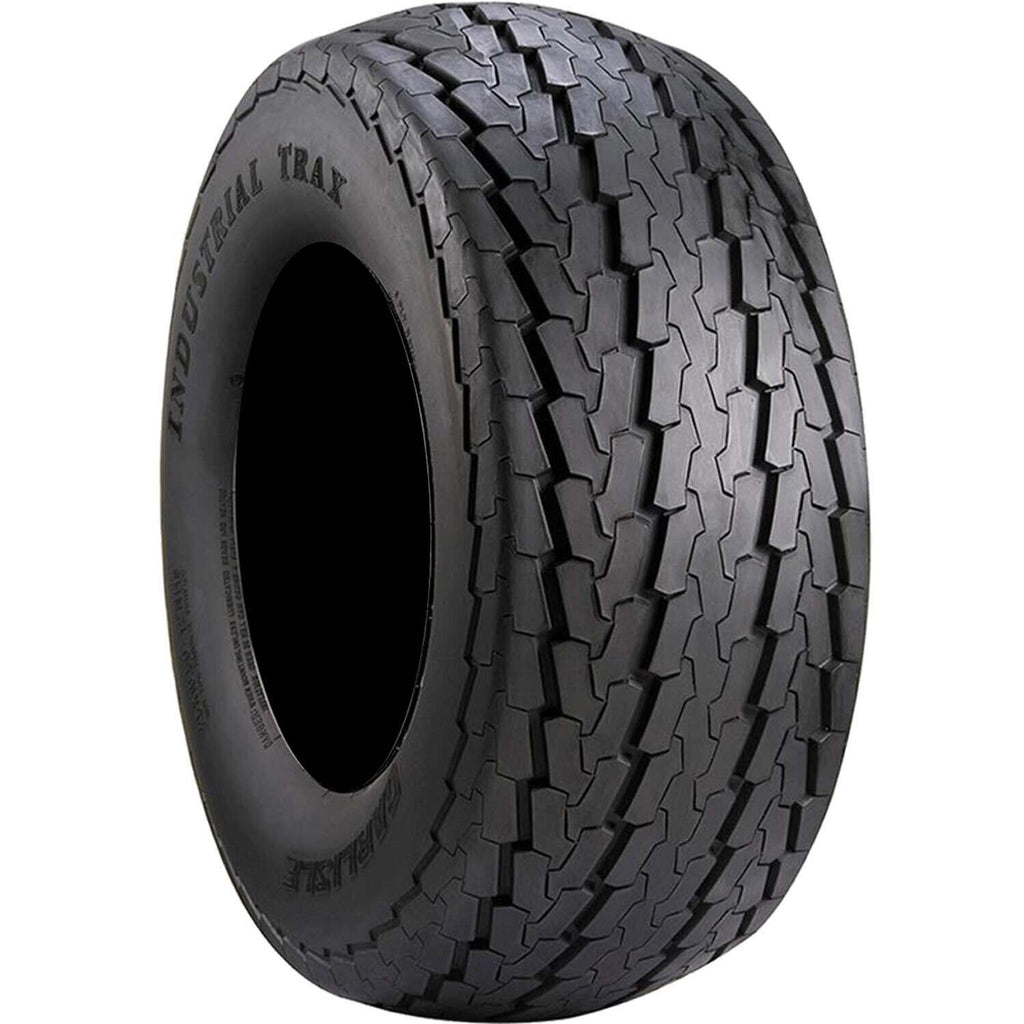

Carlisle Industrial Trax Lawn and Garden Tire 4ply 23x10.50-12
Carlisle Industrial Trax Lawn and Garden Tire 4ply 23x10.50-12
Carlisle Industrial Trax Lawn and Garden Tire 4ply 23x10.50-12
Roll over image to zoom in Click on image to zoom
Carlisle Industrial Trax Lawn and Garden Tire 4ply 23x10.50-12Carlisle Industrial Trax Lawn and Garden Tire 4ply 23x10.50-12Carlisle Industrial Trax Lawn and Garden Tire 4ply 23x10.50-12

Carlisle Industrial Trax Lawn and Garden Tire 4ply 23x10.50-12

CarlisleSKU: TIR9040
No reviews
Price:
$144.63

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Industrial Trax is built for hard-surface utility vehicles like concession and maintenance carts. Its tread handles pavement and concrete with a steady, even ride and good wear life.

Tire Specifications

Tire size
23x10.50-12Decode this size
Overall diameter
22.5 in
Section width
10.4 in
Ply rating
4
Size & fitment
Tire size23x10.50-12
Rim diameter12 in
Approved rim widths8.5 in
PositionAll Positions
Vehicle applicationIndustrial
TerrainPavement and hard surfaces
Construction
ConstructionBias
Ply rating4
Load rangeB
Tube requirementTubeless
Dimensions
Overall diameter (actual)22.5 in
Section width (actual)10.4 in
Load & speed
Load index90
Max load per tire (single)1,340 lb
Cold pressure at max load20 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN599045
SKUTIR9040
Shipping weight21.8 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

10.4 in section width 22.5 in overall diameter 12 in rim diameter 8.5 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size23x10.50-12
Overall diameter22.5 in
Section width10.4 in
Rim diameter12 in
Approved rim width8.5 in
Fitment GuideWhat Does 23x10.50-12 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The Industrial Trax is built for hard-surface utility vehicles like concession and maintenance carts. Its tread handles pavement and concrete with a steady, even ride and good wear life.

Features

  • Tread designed for steady handling and even wear on pavement and concrete.
  • Measures 23x10.50-12 with a 22.5 inch mounted diameter and 10.4 inch mounted width, and carries up to 1,340 lbs at 20 PSI (load index 90, rated at 12.5 MPH).
  • Made for hard surface utility vehicles and concession carts. Mounts on an 8.5 inch wide rim.
  • Bias ply tubeless construction, 4 ply rated (Load Range B). Hard surface tread for long wear. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
