Carlisle HD Field Trax ATV Tire 3 Star AT25x13-9 TL
Carlisle HD Field Trax ATV Tire 3 Star AT25x13-9 TL
Carlisle HD Field Trax ATV Tire 3 Star AT25x13-9 TL
Roll over image to zoom in Click on image to zoom
Carlisle HD Field Trax ATV Tire 3 Star AT25x13-9 TLCarlisle HD Field Trax ATV Tire 3 Star AT25x13-9 TLCarlisle HD Field Trax ATV Tire 3 Star AT25x13-9 TL

Carlisle HD Field Trax ATV Tire 3 Star AT25x13-9 TL

CarlisleSKU: TIR18100
No reviews
Price:
$168.33

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

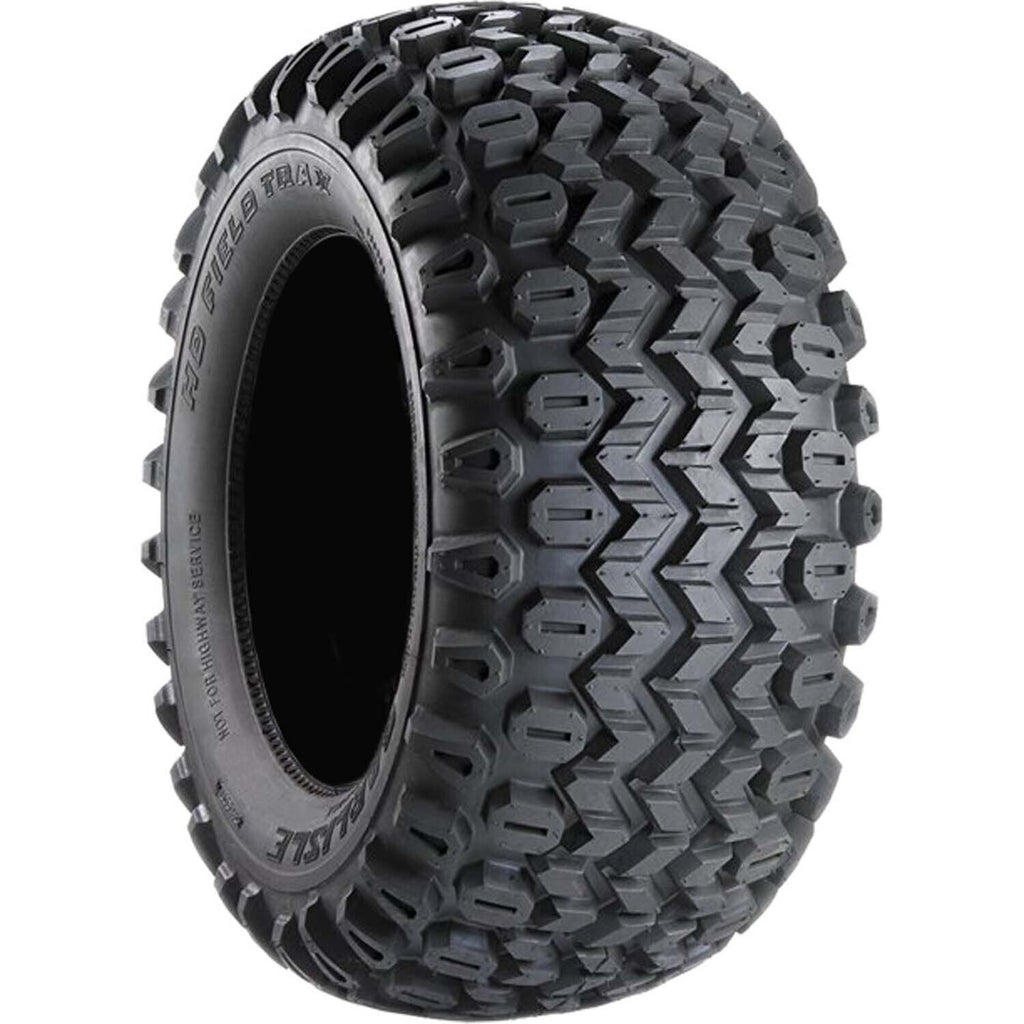

The HD Field Trax is an all-around field, farm and outdoor favorite. Its wide profile keeps the machine stable on hard-packed surfaces, and the non-directional tread gives a smooth ride while resisting cuts, chips and abrasion.

Tire Specifications

Tire size
AT25x13.00-9Decode this size
Overall diameter
24.8 in
Section width
12.4 in
Load range
3-Star
Size & fitment
Tire sizeAT25x13.00-9
Rim diameter9 in
Approved rim widths10 in
PositionAll Positions
Vehicle applicationATV/UTV
Construction
ConstructionBias
Load range3-Star
Tube requirementTubeless
Dimensions
Overall diameter (actual)24.8 in
Section width (actual)12.4 in
Tread depth (new)20/32"
Load & speed
Load index59
Max load per tire (single)535 lb
Cold pressure at max load7 PSI
Speed ratingF
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN588394
SKUTIR18100
Shipping weight29.08 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

12.4 in section width 24.8 in overall diameter 9 in rim diameter 10 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire sizeAT25x13.00-9
Overall diameter24.8 in
Section width12.4 in
Rim diameter9 in
Approved rim width10 in
Tread depth (new)20/32"
Fitment GuideWhat Does AT25x13.00-9 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The HD Field Trax is an all-around field, farm and outdoor favorite. Its wide profile keeps the machine stable on hard-packed surfaces, and the non-directional tread gives a smooth ride while resisting cuts, chips and abrasion.

Features

  • Non-directional tread gives smooth, stable traction on fields and hard pack.
  • Measures AT25x13.00-9 with a 24.8 inch mounted diameter and 12.4 inch mounted width, and carries up to 535 lbs at 7 PSI (load index 59, rated at 50 MPH).
  • Made for ATVs, UTVs and utility vehicles. Mounts on a 10 inch wide rim.
  • Bias ply tubeless construction, 3-Star rated, with 20/32 inch tread depth. Long lasting construction that resists cuts, chips and abrasion. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
