Carlisle Ground Force Ultra Rib GSE Industrial Tire 10ply 6.90-9
Carlisle Ground Force Ultra Rib GSE Industrial Tire 10ply 6.90-9
Carlisle Ground Force Ultra Rib GSE Industrial Tire 10ply 6.90-9
Roll over image to zoom in Click on image to zoom
Carlisle Ground Force Ultra Rib GSE Industrial Tire 10ply 6.90-9Carlisle Ground Force Ultra Rib GSE Industrial Tire 10ply 6.90-9Carlisle Ground Force Ultra Rib GSE Industrial Tire 10ply 6.90-9

Carlisle Ground Force Ultra Rib GSE Industrial Tire 10ply 6.90-9

CarlisleSKU: TIR9450
No reviews
Price:
$221.84

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

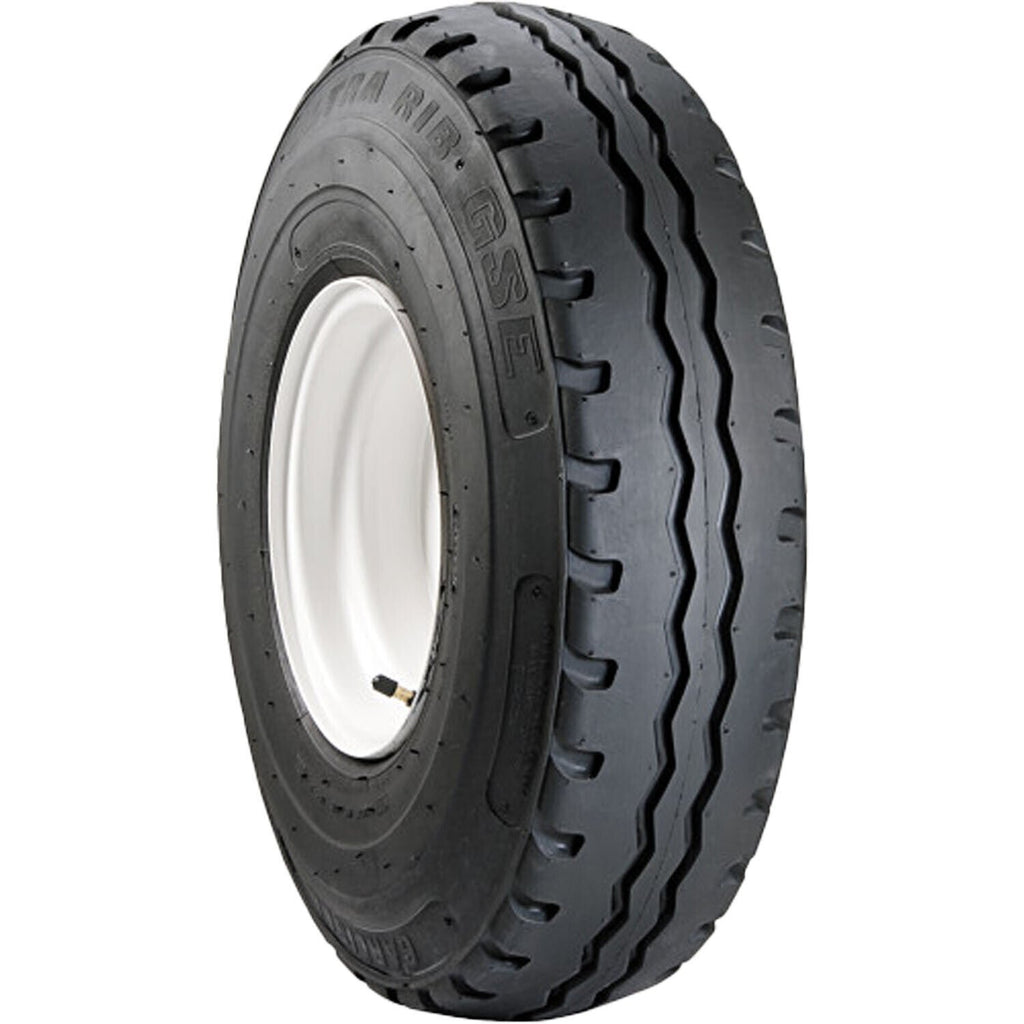

The Ground Force Ultra Rib GSE combines a sturdy rib tread with premium compounds for ground support equipment. It delivers long wear and steady handling on airport ramps and hard surfaces. It includes a flap for tube-type installation.

Tire Specifications

Tire size
6.90/6.00-9Decode this size
Overall diameter
21.6 in
Section width
6.8 in
Ply rating
10
Size & fitment
Tire size6.90/6.00-9
Rim diameter9 in
Approved rim widths4 in
PositionAll Positions
Vehicle applicationIndustrial
TerrainPavement and airport ramps
Construction
ConstructionBias
Ply rating10
Load rangeE
Tube requirementTube Type
Dimensions
Overall diameter (actual)21.6 in
Section width (actual)6.8 in
Tread depth (new)24/32"
Load & speed
Load index108
Max load per tire (single)2,200 lb
Cold pressure at max load125 PSI
Speed ratingB
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN60131
SKUTIR9450
Shipping weight27.11 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

6.8 in section width 21.6 in overall diameter 9 in rim diameter 4 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size6.90/6.00-9
Overall diameter21.6 in
Section width6.8 in
Rim diameter9 in
Approved rim width4 in
Tread depth (new)24/32"
Fitment GuideWhat Does 6.90/6.00-9 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The Ground Force Ultra Rib GSE combines a sturdy rib tread with premium compounds for ground support equipment. It delivers long wear and steady handling on airport ramps and hard surfaces. It includes a flap for tube-type installation.

Features

  • Sturdy rib tread gives ground support equipment steady handling and long wear.
  • Measures 6.90/6.00-9 with a 21.6 inch mounted diameter and 6.8 inch mounted width, and carries up to 2,200 lbs at 125 PSI (load index 108, rated at 31 MPH).
  • Made for airport ground support equipment and tow tractors. Mounts on a 4 inch wide rim.
  • Bias ply tube type construction, 10 ply rated (Load Range E), with 24/32 inch tread depth. Premium tread compounds for extended wear. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
