Description

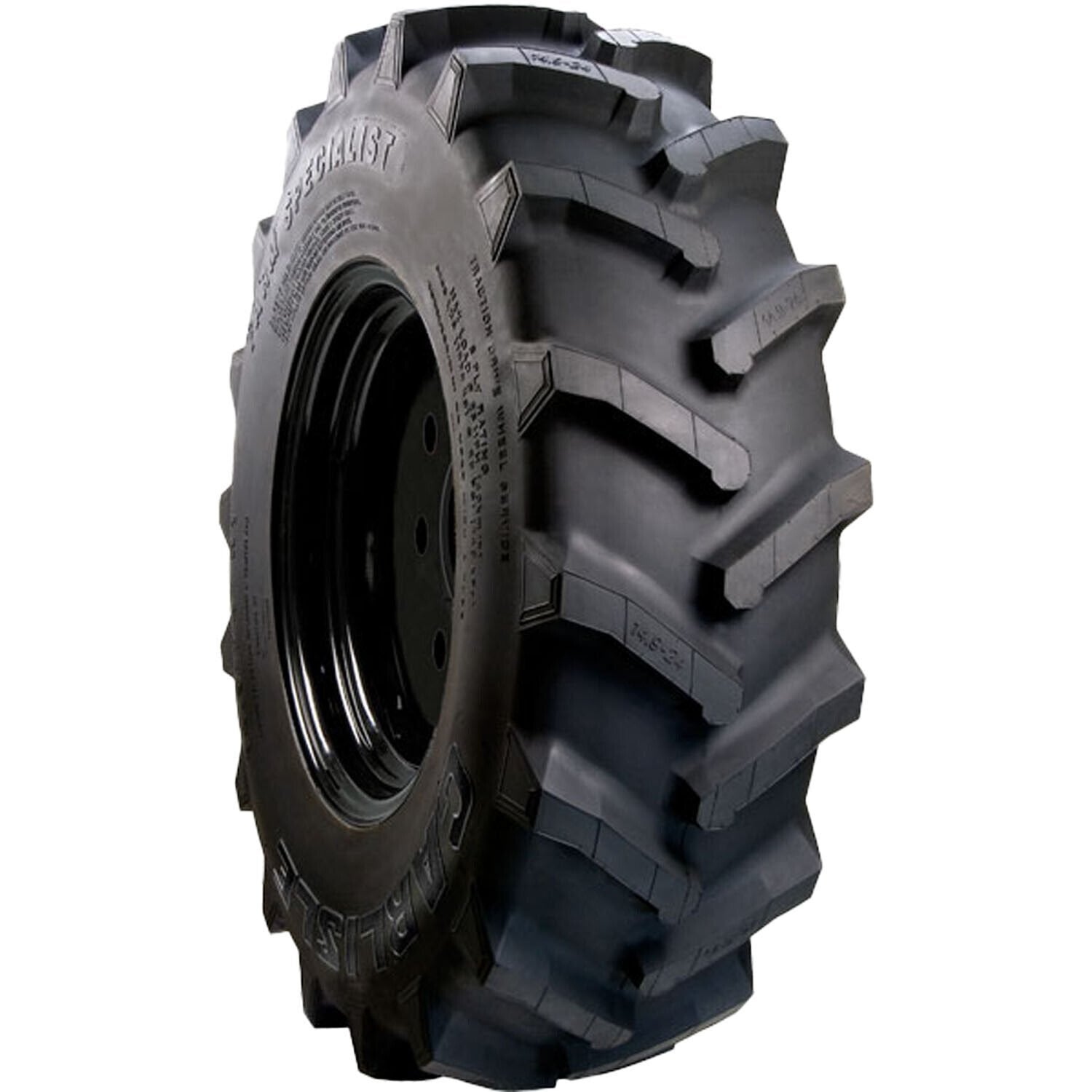

The Farm Specialist R-1 is a general-purpose tractor tire for compact utility tractors. An overlapping center lug and multi-angle long bar tread deliver aggressive traction and lateral stability in both wet and dry soil.
- Tire size7-16
- Rim16 in
- Rim width6 in
- Load rangeC (6 ply)
- Max load1,100 lb @ 36 PSI
- TypeTubeless, bias
Quantity
Carlisle Farm Specialist R-1 Utility Tractor Tire 6ply 7-16
$179.78
Documents
Tire Specifications
- Tire size
- 7-16Decode this size
- Overall diameter
- 29.1 in
- Section width
- 8.1 in
- Ply rating
- 6
| Tire size | 7-16 |
|---|---|
| Rim diameter | 16 in |
| Approved rim widths | 6 in |
| Position | All Positions |
| Vehicle application | Agricultural |
| Construction | Bias |
|---|---|
| Ply rating | 6 |
| Load range | C |
| Tube requirement | Tubeless |
| Overall diameter (actual) | 29.1 in |
|---|---|
| Section width (actual) | 8.1 in |
| Load index | 84 |
|---|---|
| Max load per tire (single) | 1,100 lb |
| Cold pressure at max load | 36 PSI |
| Speed rating | B |
| Package contents | Tire only |
|---|---|
| Tires included | 1 |
| Brand | Carlisle |
|---|---|
| MPN | 570001 |
| SKU | TIR9710 |
| Shipping weight | 33.8 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.
Mounted dimensions
| Tire size | 7-16 |
|---|---|
| Overall diameter | 29.1 in |
| Section width | 8.1 in |
| Rim diameter | 16 in |
| Approved rim width | 6 in |
Dimensions for this option are not available yet.
The Farm Specialist R-1 is a general-purpose tractor tire for compact utility tractors. An overlapping center lug and multi-angle long bar tread deliver aggressive traction and lateral stability in both wet and dry soil.
Features
