Carlisle AT101 Chevron Lawn and Garden Tire 4ply 24X12-12
Roll over image to zoom in Click on image to zoom
Carlisle AT101 Chevron Lawn and Garden Tire 4ply 24X12-12

Carlisle AT101 Chevron Lawn and Garden Tire 4ply 24X12-12

CarlisleSKU: TIR18860
No reviews
Price:
$151.04

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

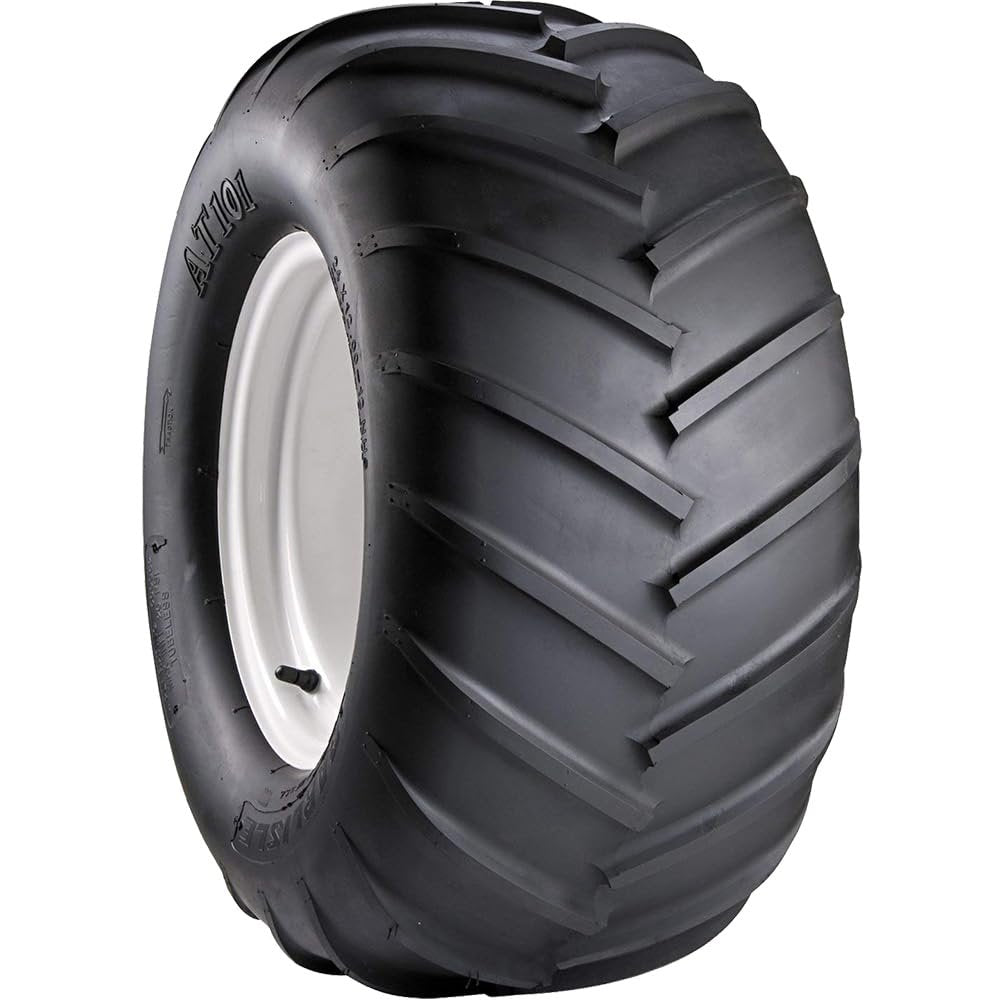

The AT101 Chevron combines a specialty lug with bars that taper toward the shoulder. That design, with a muted lug depth, gives zero-turn mowers extra drive traction without chewing up the lawn. Reach for it when your standard turf tires start to slip.

Tire Specifications

Tire size
24x12.00-12Decode this size
Overall diameter
24 in
Section width
12 in
Ply rating
4
Size & fitment
Tire size24x12.00-12
Rim diameter12 in
Approved rim widths9.5 in
PositionAll Positions
Vehicle applicationLawn & Garden
TerrainTurf, grass and hillsides
Construction
ConstructionBias
Ply rating4
Load rangeB
Tube requirementTubeless
Dimensions
Overall diameter (actual)24 in
Section width (actual)12 in
Tread depth (new)16/32"
Load & speed
Load index99
Max load per tire (single)1,710 lb
Cold pressure at max load20 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN560352
SKUTIR18860
Shipping weight22.3 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

12 in section width 24 in overall diameter 12 in rim diameter 9.5 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size24x12.00-12
Overall diameter24 in
Section width12 in
Rim diameter12 in
Approved rim width9.5 in
Tread depth (new)16/32"
Fitment GuideWhat Does 24x12.00-12 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The AT101 Chevron combines a specialty lug with bars that taper toward the shoulder. That design, with a muted lug depth, gives zero-turn mowers extra drive traction without chewing up the lawn. Reach for it when your standard turf tires start to slip.

Features

  • Chevron lugs with tapered bars add drive traction without chewing up the lawn.
  • Measures 24x12.00-12 with a 24.0 inch mounted diameter and 12.0 inch mounted width, and carries up to 1,710 lbs at 20 PSI (rated at 12.5 MPH).
  • Made for zero turn mower drive wheels and other turf equipment. Mounts on a 9.5 inch wide rim.
  • Bias ply tubeless construction, 4 ply rated (Load Range B). Specialty chevron lug design with muted lug depth. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
