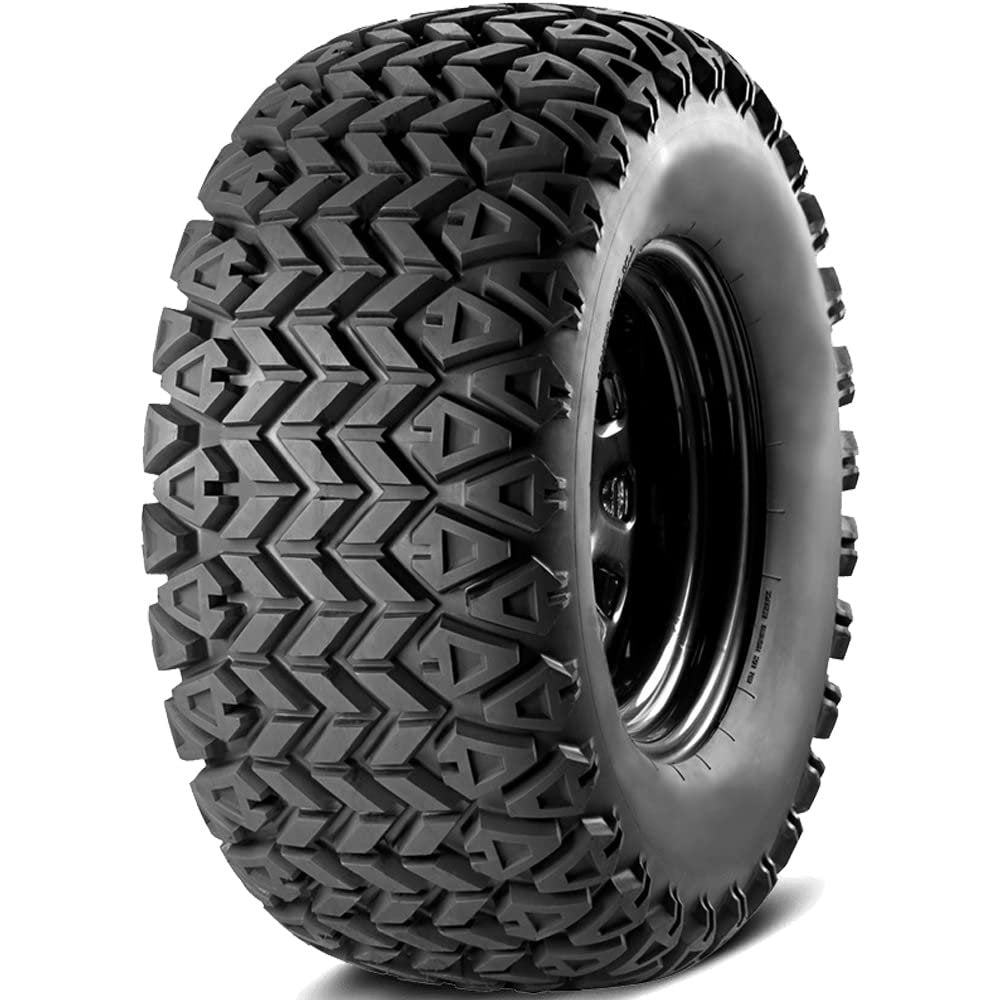

Carlisle All Trail II ATV Tire 4ply 22x9.50-10 NHS TL
Roll over image to zoom in Click on image to zoom
Carlisle All Trail II ATV Tire 4ply 22x9.50-10 NHS TL

Carlisle All Trail II ATV Tire 4ply 22x9.50-10 NHS TL

CarlisleSKU: TIR3720
No reviews
Price:
$141.00

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The All Trail II extends the All Trail line for workhorse applications on hard surfaces. Its low, wide profile keeps the vehicle stable, and the tight tread gives a smooth ride and predictable handling on pavement, concrete and hard-packed soil.

Tire Specifications

Tire size
22x9.50-10Decode this size
Overall diameter
22 in
Section width
9.6 in
Ply rating
4
Size & fitment
Tire size22x9.50-10
Rim diameter10 in
Approved rim widths8 in
PositionAll Positions
Vehicle applicationATV/UTV
TerrainPavement, concrete and hard pack
Construction
ConstructionBias
Ply rating4
Load rangeB
Tube requirementTubeless
Dimensions
Overall diameter (actual)22 in
Section width (actual)9.6 in
Tread depth (new)14/32"
Load & speed
Load index62
Max load per tire (single)585 lb
Cold pressure at max load14 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN55A3N1
SKUTIR3720
Shipping weight15 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

9.6 in section width 22 in overall diameter 10 in rim diameter 8 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size22x9.50-10
Overall diameter22 in
Section width9.6 in
Rim diameter10 in
Approved rim width8 in
Tread depth (new)14/32"
Fitment GuideWhat Does 22x9.50-10 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The All Trail II extends the All Trail line for workhorse applications on hard surfaces. Its low, wide profile keeps the vehicle stable, and the tight tread gives a smooth ride and predictable handling on pavement, concrete and hard-packed soil.

Features

  • Tight tread and a low, wide profile deliver a smooth, stable ride on hard surfaces.
  • Measures 22x9.50-10 with a 22.0 inch mounted diameter and 9.6 inch mounted width, and carries up to 585 lbs at 14 PSI (rated at 50 MPH).
  • Made for ATVs, UTVs, golf and utility vehicles. Mounts on an 8 inch wide rim.
  • Bias ply tubeless construction, 4 ply rated (Load Range B), with 14/32 inch tread depth. Durable compound for extended life on hard surfaces. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
