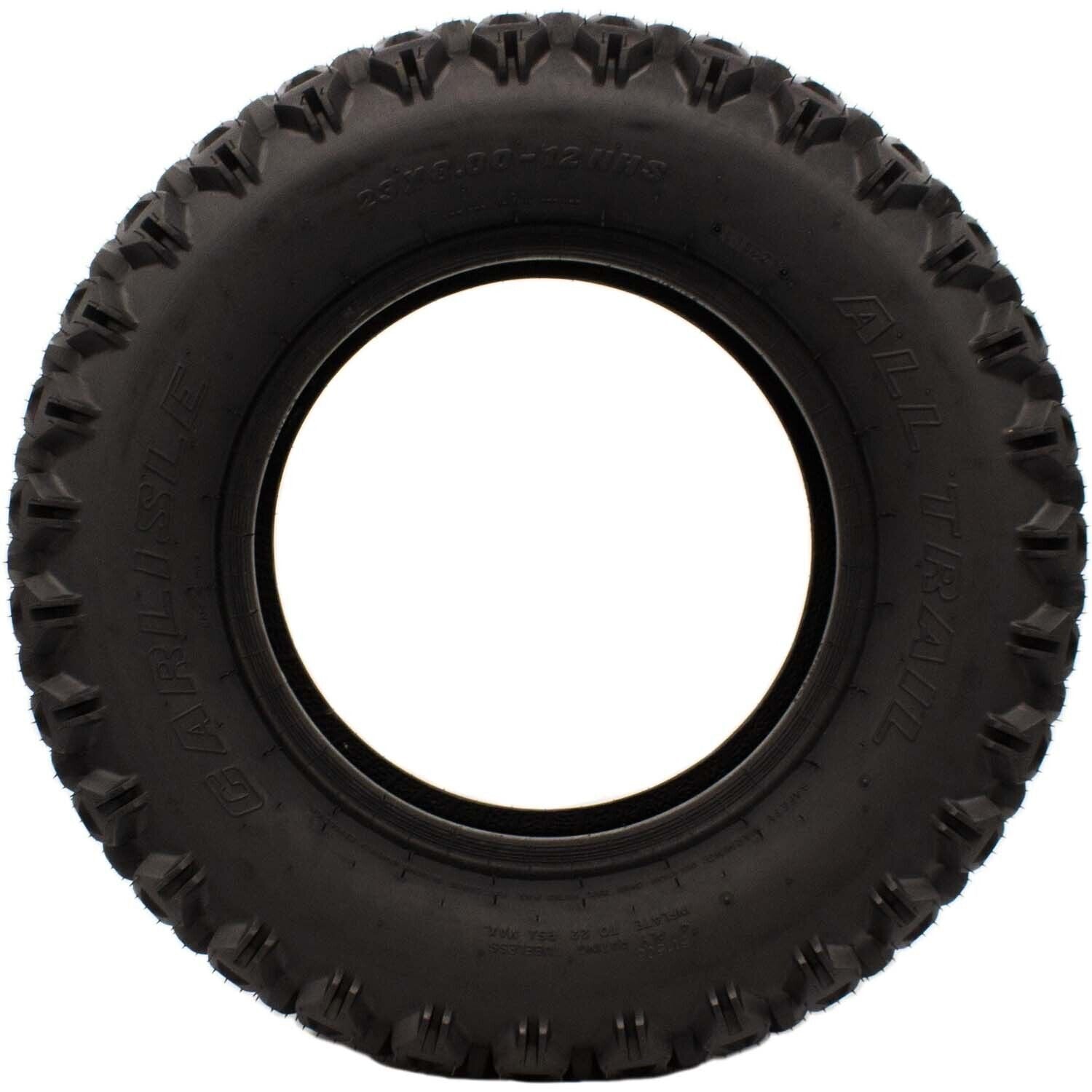

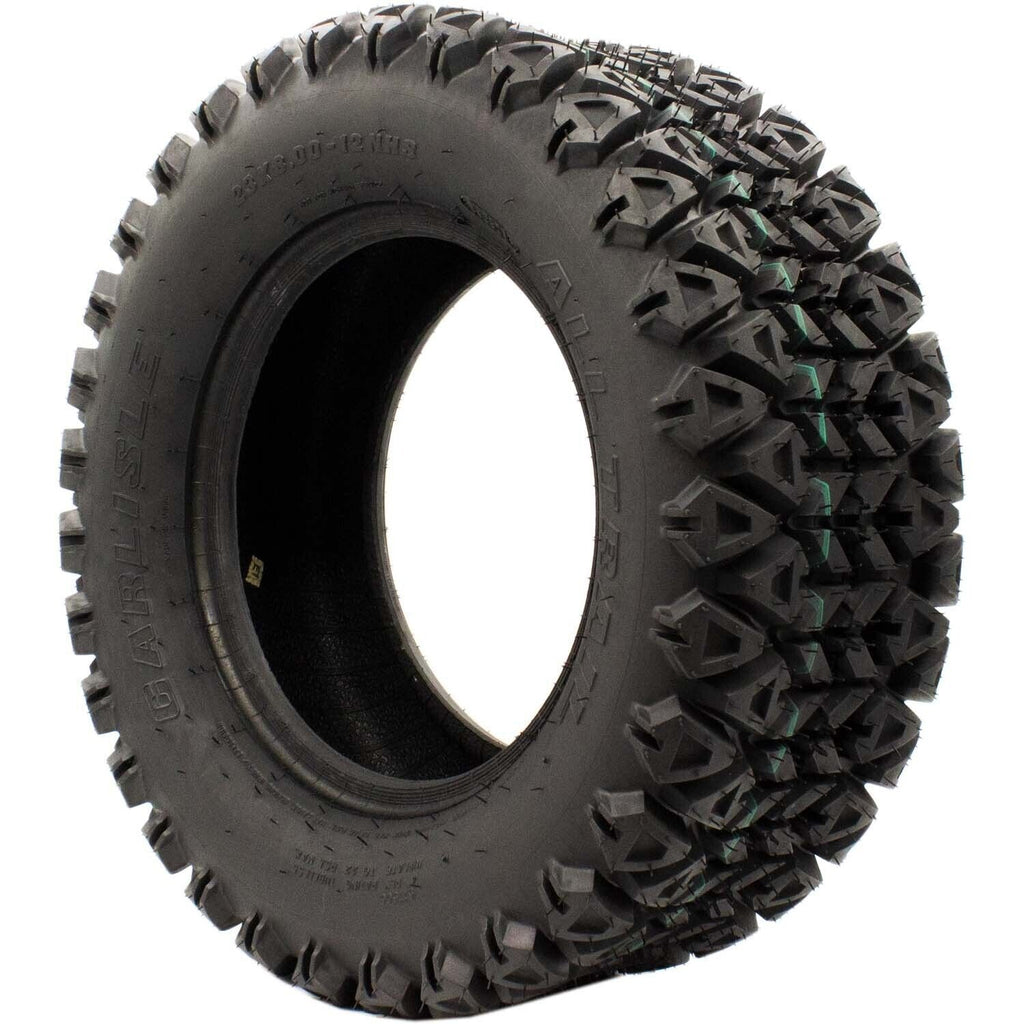

Carlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TL
Carlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TL
Carlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TL
Carlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TL
Carlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TL
Roll over image to zoom in Click on image to zoom
Carlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TLCarlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TLCarlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TLCarlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TLCarlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TL

Carlisle All Trail ATV Tire 4ply 23x10.50-12 NHS TL

CarlisleSKU: TIR3730
No reviews
Price:
$164.89

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

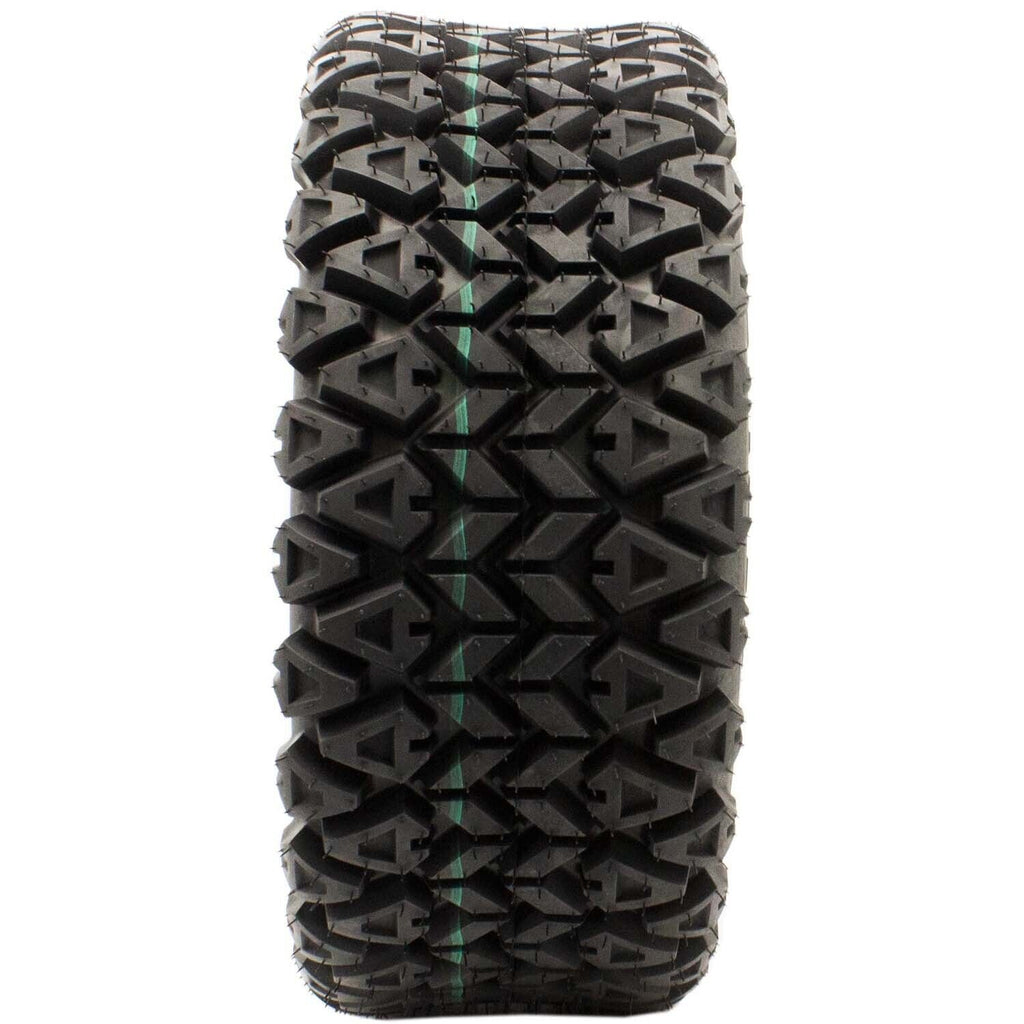

The All Trail is designed for hard surfaces. Its low, wide profile reduces the wallowing and body roll common with other tires, and the tight tread pattern gives a smooth ride with long, even wear on pavement, concrete and hard-packed soil.

Tire Specifications

Tire size
23x10.50-12Decode this size
Overall diameter
23.1 in
Section width
10.1 in
Ply rating
4
Size & fitment
Tire size23x10.50-12
Rim diameter12 in
Approved rim widths8.5 in
PositionAll Positions
Vehicle applicationATV/UTV
TerrainPavement, concrete and hard pack
Construction
ConstructionBias
Ply rating4
Load rangeB
Tube requirementTubeless
Dimensions
Overall diameter (actual)23.1 in
Section width (actual)10.1 in
Tread depth (new)20/32"
Load & speed
Load index74
Max load per tire (single)825 lb
Cold pressure at max load20 PSI
Speed ratingF
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN511505
SKUTIR3730
Shipping weight21.44 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

10.1 in section width 23.1 in overall diameter 12 in rim diameter 8.5 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size23x10.50-12
Overall diameter23.1 in
Section width10.1 in
Rim diameter12 in
Approved rim width8.5 in
Tread depth (new)20/32"
Fitment GuideWhat Does 23x10.50-12 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The All Trail is designed for hard surfaces. Its low, wide profile reduces the wallowing and body roll common with other tires, and the tight tread pattern gives a smooth ride with long, even wear on pavement, concrete and hard-packed soil.

Features

  • Tight tread and a low, wide profile ride smoothly and wear evenly on hard surfaces.
  • Measures 23x10.50-12 with a 23.1 inch mounted diameter and 10.1 inch mounted width, and carries up to 825 lbs at 20 PSI (load index 74, rated at 50 MPH).
  • Made for ATVs, UTVs, golf and utility vehicles. Mounts on an 8.5 inch wide rim.
  • Bias ply tubeless construction, 4 ply rated (Load Range B), with 20/32 inch tread depth. Compound formulated for long life on pavement and hard pack. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
