Carlisle ACT HD ATV Tire 6Ply 26x9R12 NHS TL

CarlisleSKU: TIR18764
No reviews
Price:
$204.26

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The A-C-T HD is a heavy-duty radial all-conditions tire for UTVs and side-by-sides. Its stronger carcass reduces sidewall flex and supports higher pressure and load, while the deep, self-cleaning tread keeps pulling through mud, rocks and loose trails. It is built for riders and work crews who ask a lot of their machines.

Tire Specifications

Tire size
26x9.00R12Decode this size
Overall diameter
26.7 in
Section width
8.6 in
Ply rating
6
Size & fitment
Tire size26x9.00R12
Rim diameter12 in
Approved rim widths7 in
PositionAll Positions
Vehicle applicationATV/UTV
TerrainAll-terrain, mud, rocks and trail
Construction
ConstructionRadial
Ply rating6
Load rangeC
Tube requirementTubeless
Dimensions
Overall diameter (actual)26.7 in
Section width (actual)8.6 in
Tread depth (new)32/32"
Load & speed
Load index74
Max load per tire (single)825 lb
Cold pressure at max load18 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN560465
SKUTIR18764
Shipping weight25.53 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

8.6 in section width 26.7 in overall diameter 12 in rim diameter 7 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size26x9.00R12
Overall diameter26.7 in
Section width8.6 in
Rim diameter12 in
Approved rim width7 in
Tread depth (new)32/32"
Fitment GuideWhat Does 26x9.00R12 Mean?See what every part of this size tells you, from the width and wheel size to the load and speed rating.Decode This Size

The A-C-T HD is a heavy-duty radial all-conditions tire for UTVs and side-by-sides. Its stronger carcass reduces sidewall flex and supports higher pressure and load, while the deep, self-cleaning tread keeps pulling through mud, rocks and loose trails. It is built for riders and work crews who ask a lot of their machines.

Features

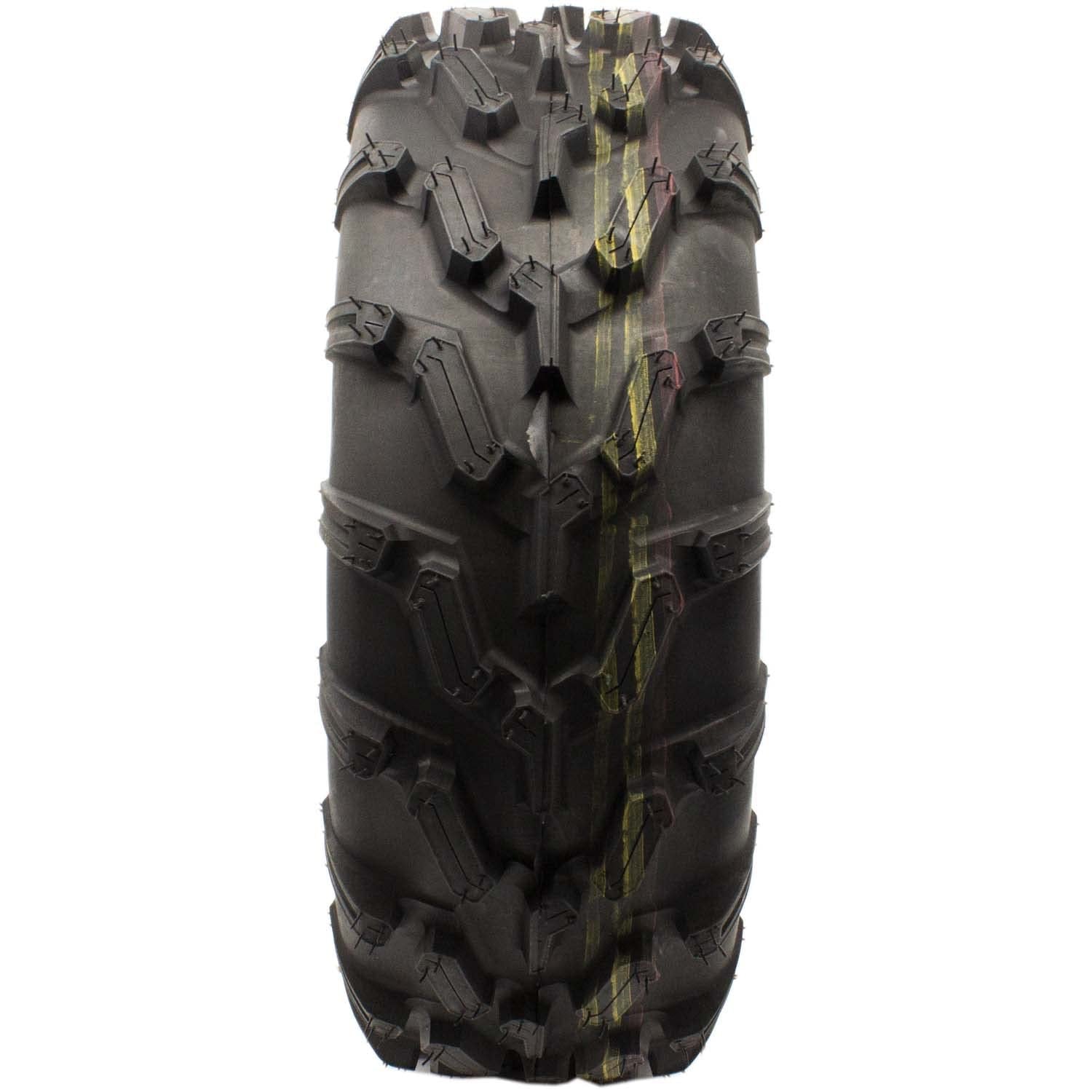

  • Deep, self-cleaning tread keeps pulling through mud, rocks and loose trail conditions.
  • Measures 26x9.00R12 with a 26.7 inch mounted diameter and 8.6 inch mounted width, and carries up to 825 lbs at 18 PSI (load index 74, rated at 50 MPH).
  • Made for UTVs, side by sides and utility vehicles. Mounts on a 7 inch wide rim.
  • Radial tubeless construction, 6 ply rated (Load Range C), with 1 inch tread depth. Reinforced carcass for less sidewall flex and better puncture resistance. Made in the USA. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
