Description

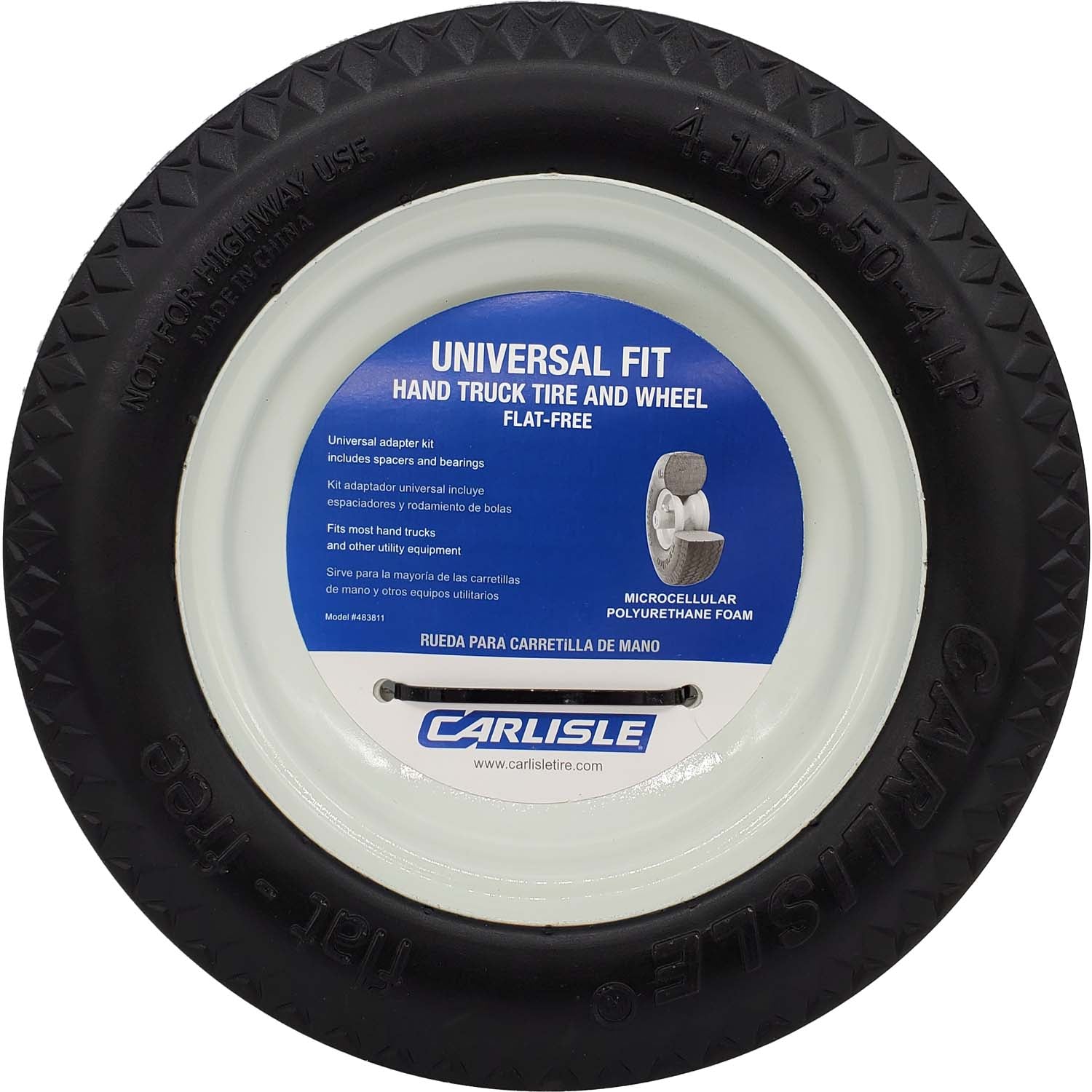

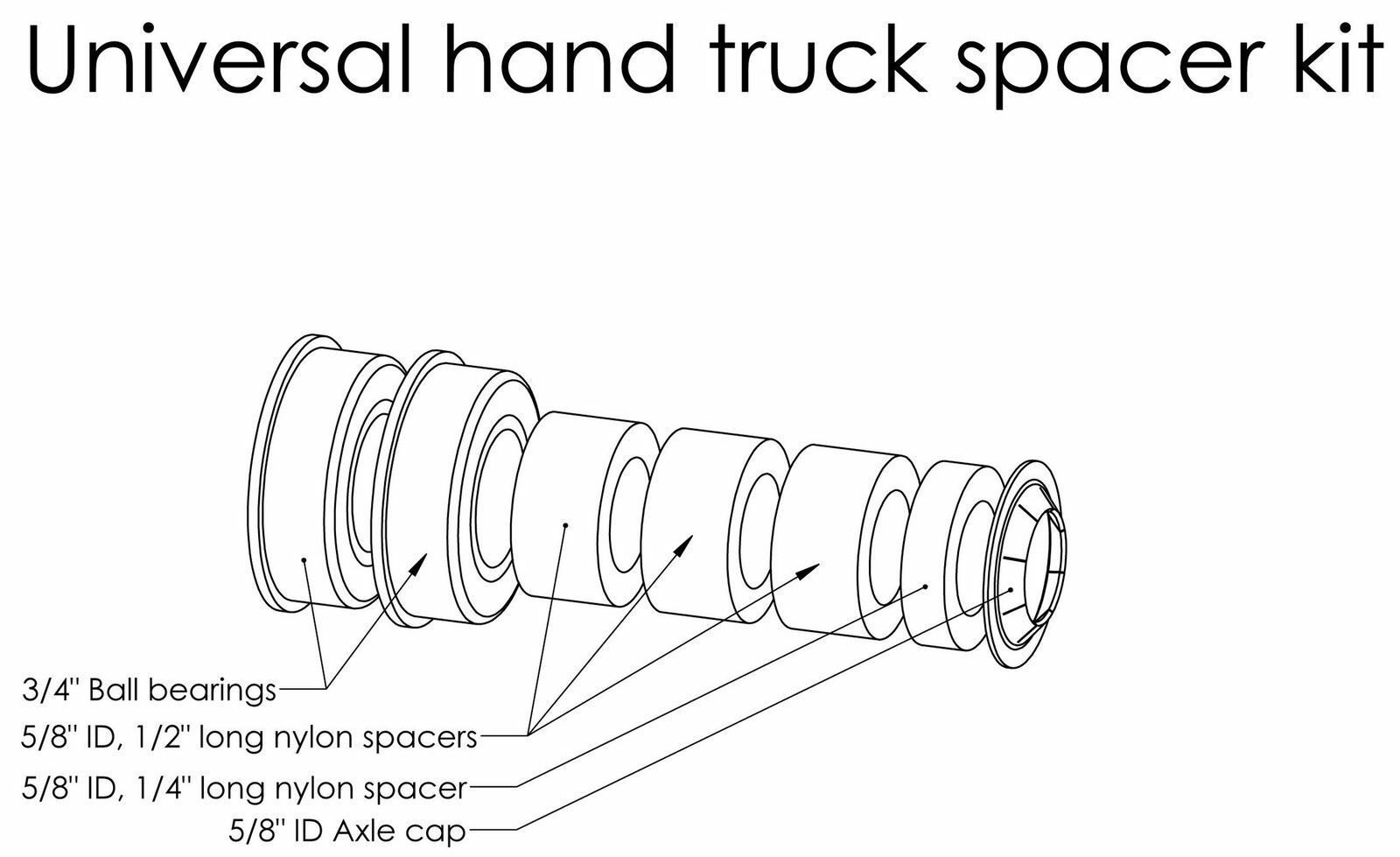

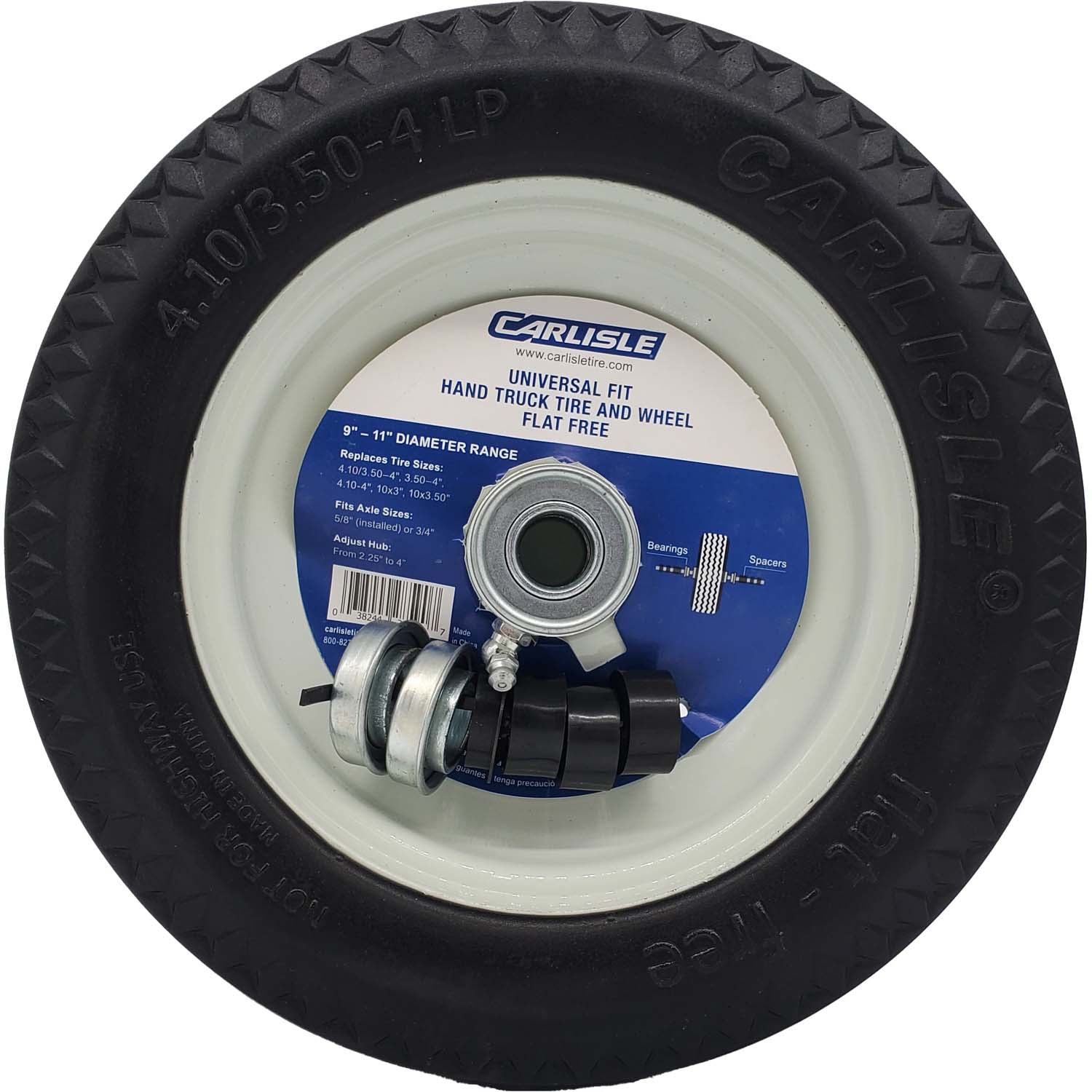

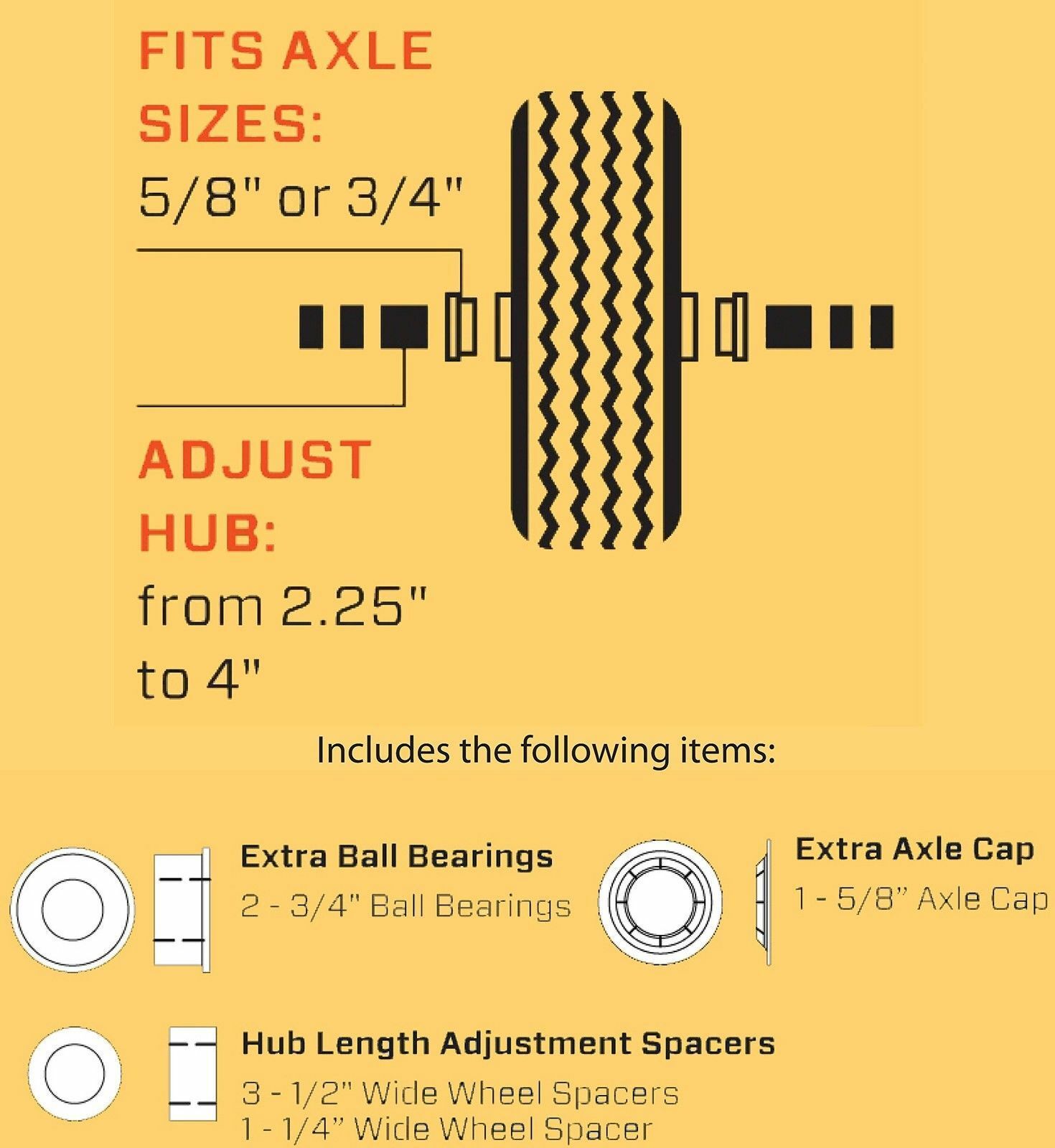

The Carlisle Polyurethane Flat Free Universal Fit Utility and Hand Truck Tire. They offer performance similar to pneumatic tires without the flats. Not sure what hub length or bearing size you need? This Universal Fit tire is designed to fit the majority of hand truck and other small equipment with these sizes: 4.10/3.50-4, 3.50-4, 4.10-4. Includes adapter kit of additional bearings and spacers to fit tire onto various types of utility equipment. Adapter kit includes the following items: (1) - 1/4" Spacers, (3) - 1/2" Spacers, (2) - 3/4" Ball Bearings (5/8" installed), (1) - 5/8" Axle Cap.

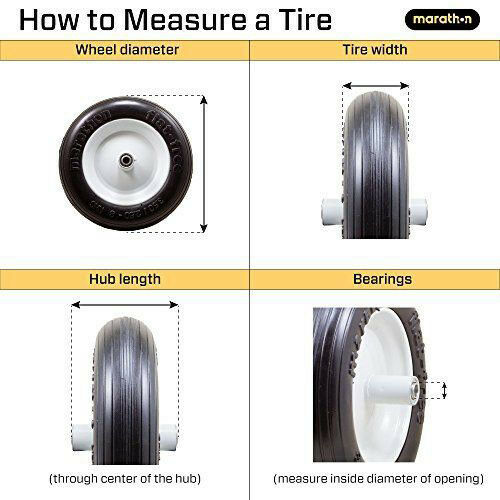

*Please verify your current wheel assembly's measurements in order to make sure this will fit your application.*
Features

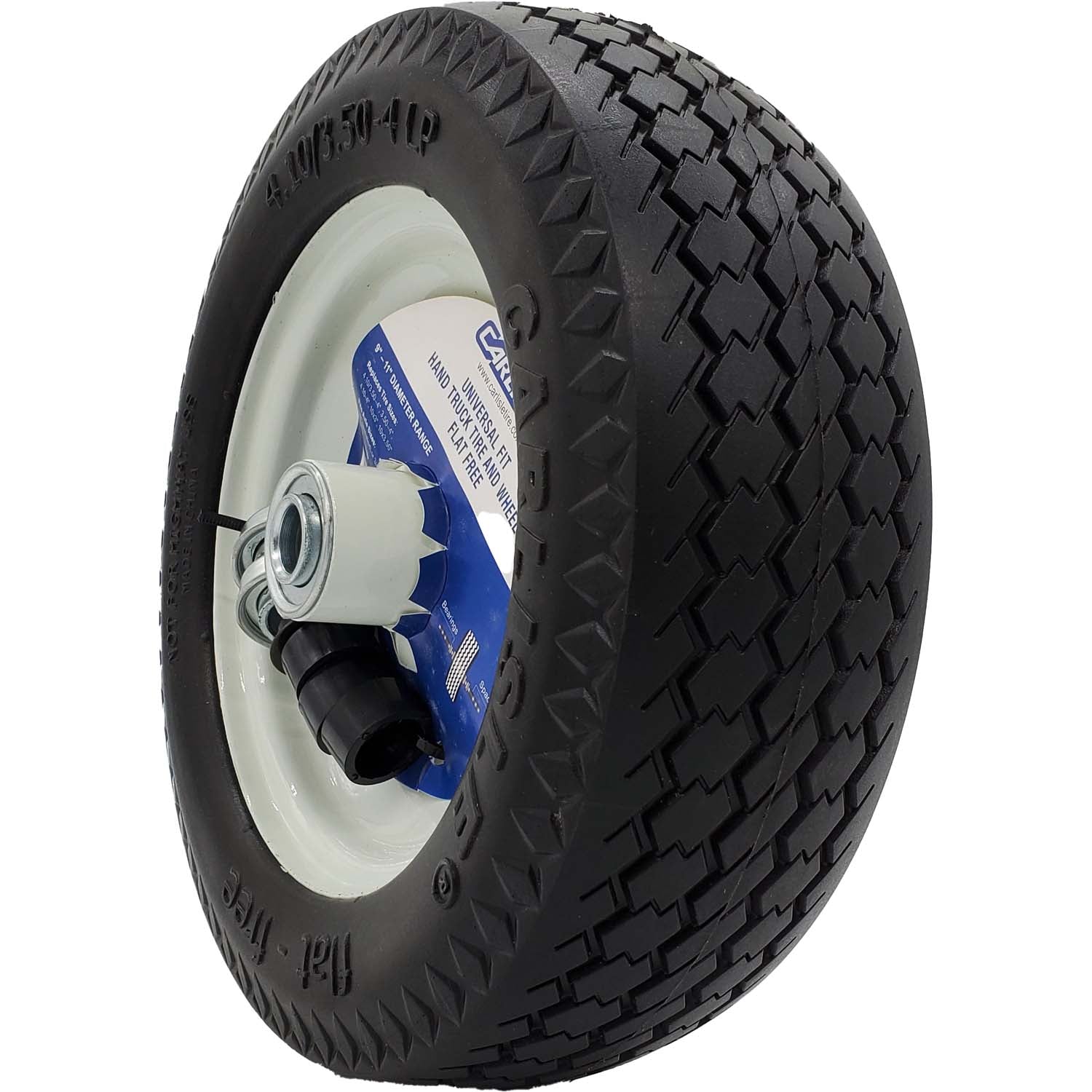

- 1 tire made of solid, micro-cellular polyurethane mounted on a steel wheel
- Tire Size: 4.10/3.50-4
- No flats and never need to maintain
- Assembled with a 2-1/4" Offset Hub with Bearings to fit either 3/4" or 5/8" Shafts
- Has the performance of pneumatic tires
| Manufacturer Part Number: | 483811 |
|---|---|
| Tire Size: | 4.10/3.50-4 |
| Mtd. Diameter (Inches): | 10.300 |
| Mtd. Width (Inches): | 3.300 |
| Rim Diameter (Inches): | 4 |
| Max Load (lbs): | 300 |
| Wheel Shaft Size: | 3/4" or 5/8" shaft |
| Wheel Hub Size: | 2-1/4" offset hub |
| Tire Weight (lbs): | 3.7500 |
| Quantity: | 1 |
⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.Tire only, Rim not includedCountry of Origin : ChinaThe Package Height of the Product is 6.0 inchesThe Package Length of the Product is 13.0 inchesThe Package Width of the Product is 13.0 inches
Features
- Tire only, Rim not included
- Country of Origin : China
- The Package Height of the Product is 6.0 inches
- The Package Length of the Product is 13.0 inches
- The Package Width of the Product is 13.0 inches
- Tire size4.10/3.50-4
- Rim4 in
- Max load300 lb
Quantity
Carlisle 483811 Flat Free Universal Fit Utility Tire on White Rim 4.10/3.50-4
$30.89
Documents
Tire Specifications
- Tire size
- 4.10/3.50-4Decode this size
- Overall diameter
- 10.3 in
- Section width
- 3.3 in
- Max load
- 300 lb
| Tire size | 4.10/3.50-4 |
|---|---|
| Rim diameter | 4 in |
| Vehicle application | Lawn & Garden |
| Overall diameter (actual) | 10.3 in |
|---|---|
| Section width (actual) | 3.3 in |
| Max load per tire (single) | 300 lb |
|---|
| Package contents | Mounted tire and wheel |
|---|---|
| Tires included | 1 |
| Brand | Carlisle |
|---|---|
| MPN | 483811 |
| SKU | MTA483811 |
| Shipping weight | 3.75 lb |
Wheel & Hub Specifications
| Hub length | 2.25 in |
|---|---|
| Hub position | Offset |
| Bore size | 3/4, 5/8 in |
| Bearing / bushing | Ball bearings |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.
Mounted dimensions
| Tire size | 4.10/3.50-4 |
|---|---|
| Overall diameter | 10.3 in |
| Section width | 3.3 in |
| Rim diameter | 4 in |
| Hub length | 2.25 in |
|---|---|
| Hub position | Offset |
| Bore size | 3/4, 5/8 in |
| Bearing / bushing | Ball bearings |
Dimensions for this option are not available yet.
The Carlisle Polyurethane Flat Free Universal Fit Utility and Hand Truck Tire. They offer performance similar to pneumatic tires without the flats. Not sure what hub length or bearing size you need? This Universal Fit tire is designed to fit the majority of hand truck and other small equipment with these sizes: 4.10/3.50-4, 3.50-4, 4.10-4. Includes adapter kit of additional bearings and spacers to fit tire onto various types of utility equipment. Adapter kit includes the following items: (1) - 1/4" Spacers, (3) - 1/2" Spacers, (2) - 3/4" Ball Bearings (5/8" installed), (1) - 5/8" Axle Cap.
*Please verify your current wheel assembly's measurements in order to make sure this will fit your application.*
Features
- 1 tire made of solid, micro-cellular polyurethane mounted on a steel wheel
- Tire Size: 4.10/3.50-4
- No flats and never need to maintain
- Assembled with a 2-1/4" Offset Hub with Bearings to fit either 3/4" or 5/8" Shafts
- Has the performance of pneumatic tires
| Manufacturer Part Number: | 483811 |
|---|---|
| Tire Size: | 4.10/3.50-4 |
| Mtd. Diameter (Inches): | 10.300 |
| Mtd. Width (Inches): | 3.300 |
| Rim Diameter (Inches): | 4 |
| Max Load (lbs): | 300 |
| Wheel Shaft Size: | 3/4" or 5/8" shaft |
| Wheel Hub Size: | 2-1/4" offset hub |
| Tire Weight (lbs): | 3.7500 |
| Quantity: | 1 |
⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.Tire only, Rim not includedCountry of Origin : ChinaThe Package Height of the Product is 6.0 inchesThe Package Length of the Product is 13.0 inchesThe Package Width of the Product is 13.0 inches
Features
