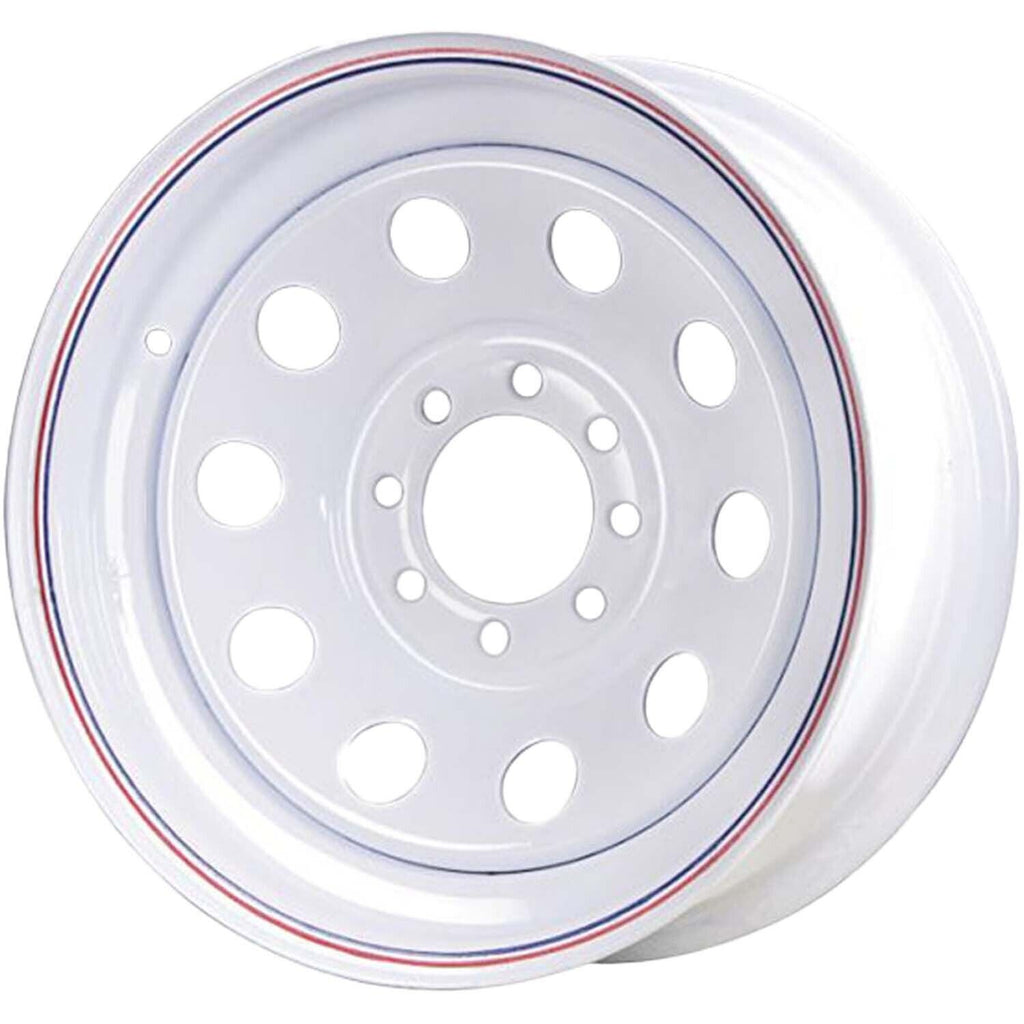

Carlisle 16x6 8 on 6.5 Supreme Modular Trailer Wheel - White Pinstripe
Roll over image to zoom in Click on image to zoom
Carlisle 16x6 8 on 6.5 Supreme Modular Trailer Wheel - White Pinstripe

Carlisle 16x6 8 on 6.5 Supreme Modular Trailer Wheel - White Pinstripe

CarlisleSKU: WHL7690HD
No reviews
Price:
$127.95

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Carlisle Highway Supreme is a modular steel trailer wheel for boat, cargo, horse and livestock, RV and specialty trailers. Its modular center gives your trailer a clean, heavy-duty look.

This is the 16x6 size on an 8 on 6.5 (8x165.1 mm) bolt pattern, rated for 4,480 lbs per wheel. It has a 4.902 inch center bore, zero offset and 3.553 inches of backside spacing. The finish is white with red and blue pin stripes, and it takes 60 degree cone lug nuts.

Measure the bolt pattern on the hub itself: on an 8 lug hub, measure center to center across two opposite studs. An 8 on 170 mm hub looks almost the same, so take your time with the tape. Then match the center bore and backside spacing to the wheel you are replacing.

This listing includes 1 wheel. Tire not included.

Wheel Specifications

Wheel size
16 x 6 in
Bolt pattern
8 on 6.5
Center hole
4.902 in
Load capacity
4,480 lb
Size & fitment
Rim diameter16 in
Rim width6 in
Bolt pattern8 on 6.5
Center hole4.902 in
Offset0 in
Backside spacing3.553 in
Load & application
Load capacity4,480 lb
Vehicle applicationTrailer
General
BrandCarlisle
MPN1622670564B
SKUWHL7690HD
Shipping weight30.35 lb

Specifications are the manufacturer's published values.

Wheel dimensions

CROSS-SECTION INBOARD vehicle side 6 in rim width 16 in rim diameter 3.553 in backspacing0 in offset, mounting face on the centerline FACE VIEW 8 on 6.5 in bolt pattern 4.902 in center hole
Drawn to scale from the published wheel specifications. Backspacing runs from the hub mounting face to the inboard edge of the rim; a positive offset puts the mounting face outboard of the wheel centerline.
At a glance
Wheel size16 x 6 in
Bolt pattern8 on 6.5 in
Center hole4.902 in
Backspacing3.553 in
Offset0 in
Load capacity4,480 lb
Fitment GuideNot Sure It Fits?Measure your own wheel in 7 steps, with an animated drawing for each one.Open the Guide

The Carlisle Highway Supreme is a modular steel trailer wheel for boat, cargo, horse and livestock, RV and specialty trailers. Its modular center gives your trailer a clean, heavy-duty look.

This is the 16x6 size on an 8 on 6.5 (8x165.1 mm) bolt pattern, rated for 4,480 lbs per wheel. It has a 4.902 inch center bore, zero offset and 3.553 inches of backside spacing. The finish is white with red and blue pin stripes, and it takes 60 degree cone lug nuts.

Measure the bolt pattern on the hub itself: on an 8 lug hub, measure center to center across two opposite studs. An 8 on 170 mm hub looks almost the same, so take your time with the tape. Then match the center bore and backside spacing to the wheel you are replacing.

This listing includes 1 wheel. Tire not included.

Features

  • Puts a modular steel wheel under your boat, cargo, horse, RV or specialty trailer, with a clean, heavy-duty look.
  • Measures 16 x 6 inches on an 8 on 6.5 inch (8x165.1 mm) bolt pattern, rated to carry 4,480 lbs per wheel.
  • Fits 8 lug trailer hubs with an 8 on 6.5 bolt pattern: 4.902 inch center bore, zero offset and 3.553 inch backside spacing. Takes 60 degree cone lug nuts.
  • Steel modular construction from the Carlisle Highway Supreme line, finished in white with red and blue pin stripes.
  • Sold individually, tire not included. Match the bolt pattern, center bore and backside spacing to your hub before ordering.
