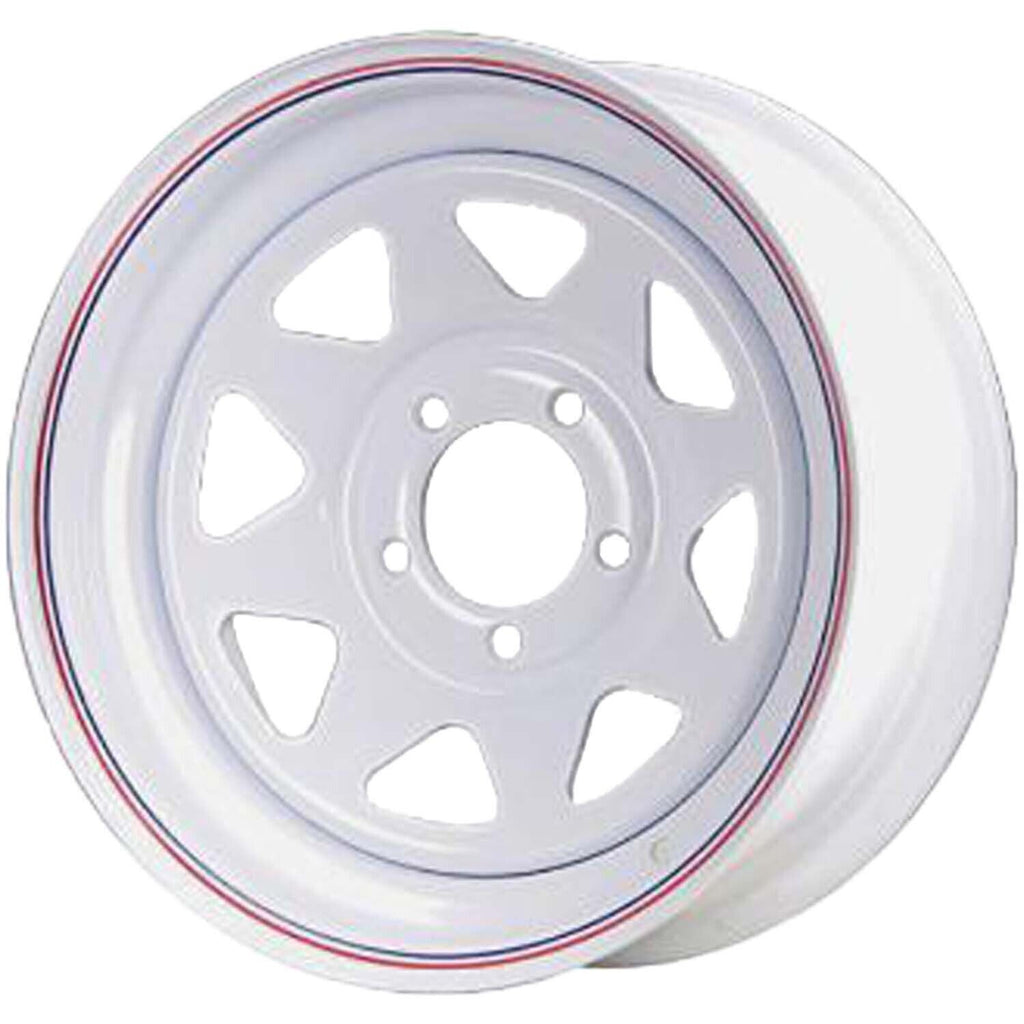

Carlisle 15x6 5 on 5 Eight Spoke Trailer Wheel - White Pinstripe
Roll over image to zoom in Click on image to zoom
Carlisle 15x6 5 on 5 Eight Spoke Trailer Wheel - White Pinstripe

Carlisle 15x6 5 on 5 Eight Spoke Trailer Wheel - White Pinstripe

CarlisleSKU: WHL7684
No reviews
Price:
$94.95

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Carlisle Highway Eight Spoke is a classic eight spoke steel trailer wheel for boat, cargo, horse and livestock, RV and specialty trailers. Open spokes shed water and road grime instead of trapping it against the drum, and they let brake heat escape on long pulls.

This is the 15x6 size on a 5 on 5 (5x127 mm) bolt pattern, rated for 2,830 lbs per wheel. It has a 3.307 inch center bore, zero offset and 3.553 inches of backside spacing. The finish is white with red and blue pin stripes, and it takes 60 degree cone lug nuts.

Measure the bolt pattern on the hub itself: on a 5 lug hub, go from the center of one stud to the outside edge of the stud two positions over. A 5 on 4.75 hub is only a quarter inch smaller, so take your time with the tape. Then match the center bore and backside spacing to the wheel you are replacing.

This listing includes 1 wheel. It ships boxed without a valve stem, and the tire is not included.

Wheel Specifications

Wheel size
15 x 6 in
Bolt pattern
5 on 5
Center hole
3.307 in
Load capacity
2,830 lb
Size & fitment
Rim diameter15 in
Rim width6 in
Bolt pattern5 on 5
Center hole3.307 in
Offset0 in
Backside spacing3.553 in
Load & application
Load capacity2,830 lb
Vehicle applicationTrailer
General
BrandCarlisle
MPN1522663564B
SKUWHL7684
Shipping weight21.7 lb

Specifications are the manufacturer's published values.

Wheel dimensions

CROSS-SECTION INBOARD vehicle side 6 in rim width 15 in rim diameter 3.553 in backspacing0 in offset, mounting face on the centerline FACE VIEW 5 on 5 in bolt pattern 3.307 in center hole
Drawn to scale from the published wheel specifications. Backspacing runs from the hub mounting face to the inboard edge of the rim; a positive offset puts the mounting face outboard of the wheel centerline.
At a glance
Wheel size15 x 6 in
Bolt pattern5 on 5 in
Center hole3.307 in
Backspacing3.553 in
Offset0 in
Load capacity2,830 lb
Fitment GuideNot Sure It Fits?Measure your own wheel in 7 steps, with an animated drawing for each one.Open the Guide

The Carlisle Highway Eight Spoke is a classic eight spoke steel trailer wheel for boat, cargo, horse and livestock, RV and specialty trailers. Open spokes shed water and road grime instead of trapping it against the drum, and they let brake heat escape on long pulls.

This is the 15x6 size on a 5 on 5 (5x127 mm) bolt pattern, rated for 2,830 lbs per wheel. It has a 3.307 inch center bore, zero offset and 3.553 inches of backside spacing. The finish is white with red and blue pin stripes, and it takes 60 degree cone lug nuts.

Measure the bolt pattern on the hub itself: on a 5 lug hub, go from the center of one stud to the outside edge of the stud two positions over. A 5 on 4.75 hub is only a quarter inch smaller, so take your time with the tape. Then match the center bore and backside spacing to the wheel you are replacing.

This listing includes 1 wheel. It ships boxed without a valve stem, and the tire is not included.

Features

  • Gives your trailer the classic eight spoke look, with open spokes that shed water and road grime and let brake heat escape.
  • Measures 15 x 6 inches on a 5 on 5 inch (5x127 mm) bolt pattern, rated to carry 2,830 lbs per wheel.
  • Fits 5 lug trailer hubs with a 5 on 5 bolt pattern: 3.307 inch center bore, zero offset and 3.553 inch backside spacing. Takes 60 degree cone lug nuts.
  • Steel eight spoke construction from the Carlisle Highway Eight Spoke line, finished in white with red and blue pin stripes.
  • Sold individually, tire not included, and it ships boxed without a valve stem. Match the bolt pattern, center bore and backside spacing to your hub before ordering.
