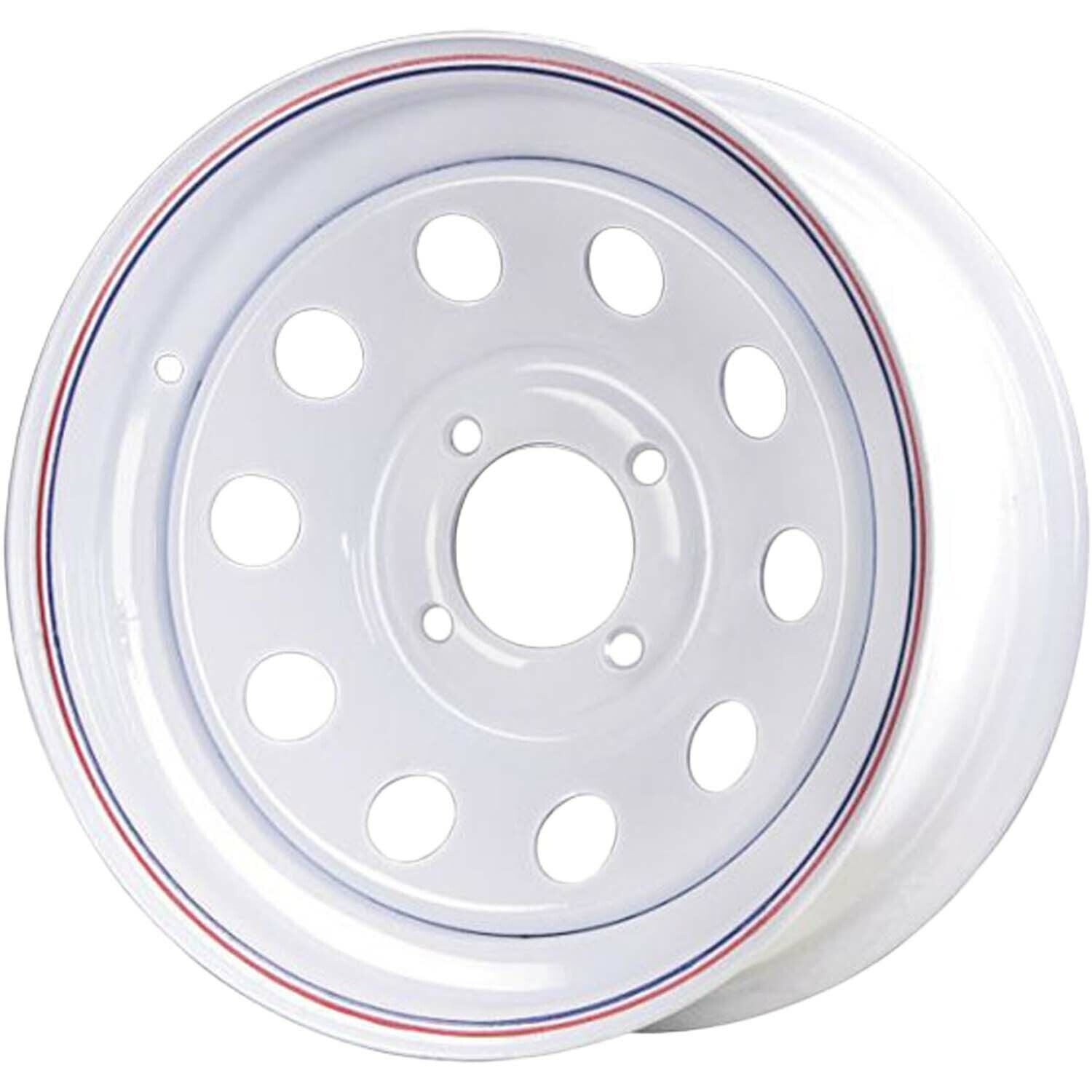

Carlisle 12x4 4 on 4 Supreme Modular Trailer Wheel - White Pinstripe
Roll over image to zoom in Click on image to zoom
Carlisle 12x4 4 on 4 Supreme Modular Trailer Wheel - White Pinstripe

Carlisle 12x4 4 on 4 Supreme Modular Trailer Wheel - White Pinstripe

CarlisleSKU: WHL7616
No reviews
Price:
$43.95

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Carlisle Highway Supreme is a modular steel trailer wheel for boat, cargo, horse and livestock, RV and specialty trailers. Its modular center gives your trailer a clean, heavy-duty look.

This is the 12x4 size on a 4 on 4 (4x101.6 mm) bolt pattern, rated for 1,520 lbs per wheel. It has a 2.843 inch center bore, zero offset and 2.375 inches of backside spacing. The finish is white with red and blue pin stripes, and it takes 60 degree cone lug nuts.

Measure the bolt pattern on the hub itself: on a 4 lug hub, measure center to center across two opposite studs. A 4 on 4.5 hub is only half an inch larger, so take your time with the tape. Then match the center bore and backside spacing to the wheel you are replacing.

This listing includes 1 wheel. Tire not included.

Wheel Specifications

Wheel size
12 x 4 in
Bolt pattern
4 on 4
Center hole
2.843 in
Load capacity
1,520 lb
Size & fitment
Rim diameter12 in
Rim width4 in
Bolt pattern4 on 4
Center hole2.843 in
Offset0 in
Backside spacing2.375 in
Load & application
Load capacity1,520 lb
Vehicle applicationTrailer
General
BrandCarlisle
MPN1222433564B
SKUWHL7616
Shipping weight9.85 lb

Specifications are the manufacturer's published values.

Wheel dimensions

CROSS-SECTION INBOARD vehicle side 4 in rim width 12 in rim diameter 2.375 in backspacing0 in offset, mounting face on the centerline FACE VIEW 4 on 4 in bolt pattern 2.843 in center hole
Drawn to scale from the published wheel specifications. Backspacing runs from the hub mounting face to the inboard edge of the rim; a positive offset puts the mounting face outboard of the wheel centerline.
At a glance
Wheel size12 x 4 in
Bolt pattern4 on 4 in
Center hole2.843 in
Backspacing2.375 in
Offset0 in
Load capacity1,520 lb
Fitment GuideNot Sure It Fits?Measure your own wheel in 7 steps, with an animated drawing for each one.Open the Guide

The Carlisle Highway Supreme is a modular steel trailer wheel for boat, cargo, horse and livestock, RV and specialty trailers. Its modular center gives your trailer a clean, heavy-duty look.

This is the 12x4 size on a 4 on 4 (4x101.6 mm) bolt pattern, rated for 1,520 lbs per wheel. It has a 2.843 inch center bore, zero offset and 2.375 inches of backside spacing. The finish is white with red and blue pin stripes, and it takes 60 degree cone lug nuts.

Measure the bolt pattern on the hub itself: on a 4 lug hub, measure center to center across two opposite studs. A 4 on 4.5 hub is only half an inch larger, so take your time with the tape. Then match the center bore and backside spacing to the wheel you are replacing.

This listing includes 1 wheel. Tire not included.

Features

  • Puts a modular steel wheel under your boat, cargo, horse, RV or specialty trailer, with a clean, heavy-duty look.
  • Measures 12 x 4 inches on a 4 on 4 inch (4x101.6 mm) bolt pattern, rated to carry 1,520 lbs per wheel.
  • Fits 4 lug trailer hubs with a 4 on 4 bolt pattern: 2.843 inch center bore, zero offset and 2.375 inch backside spacing. Takes 60 degree cone lug nuts.
  • Steel modular construction from the Carlisle Highway Supreme line, finished in white with red and blue pin stripes.
  • Sold individually, tire not included. Match the bolt pattern, center bore and backside spacing to your hub before ordering.
