Description

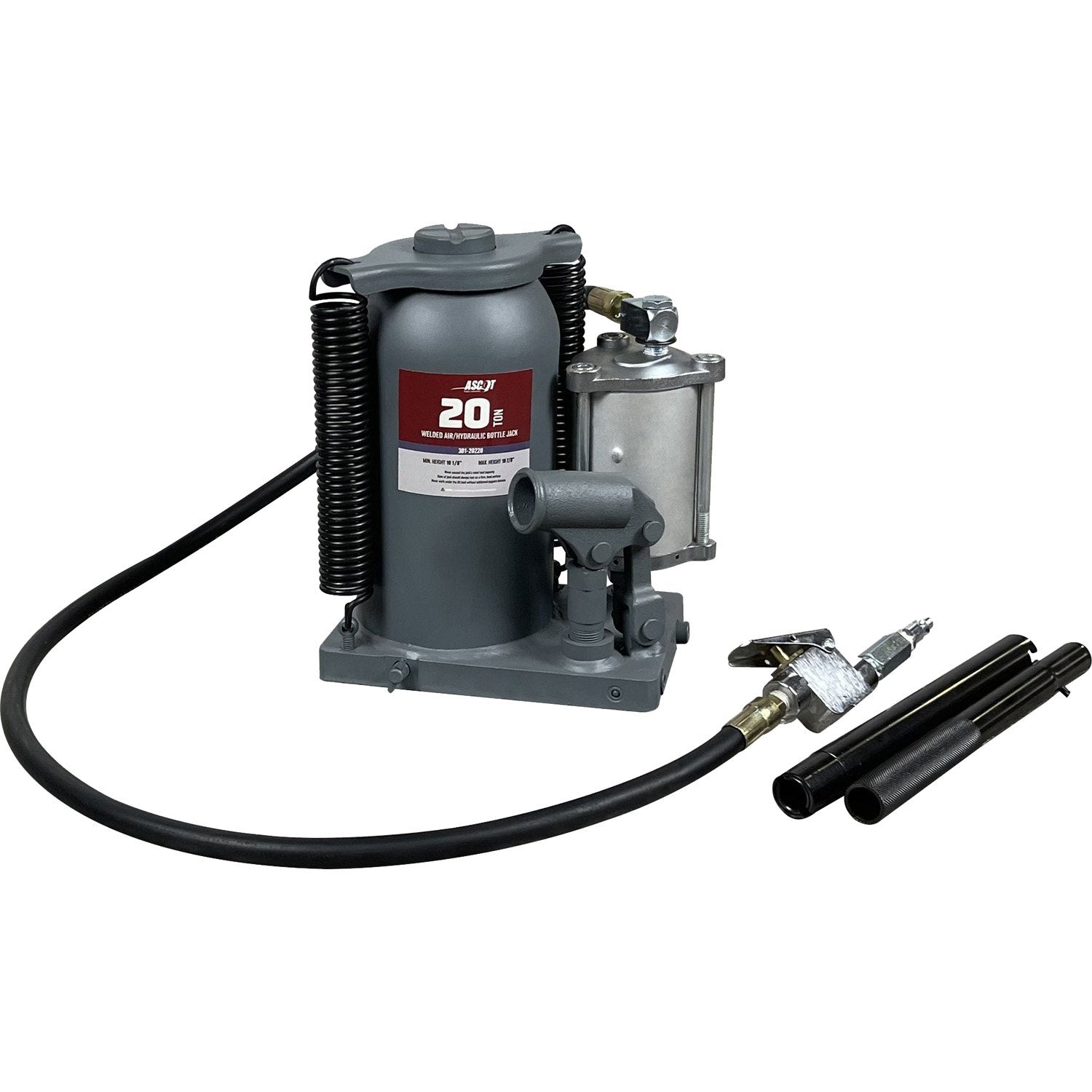

The Ascot AS2022 is a 20 ton air/hydraulic bottle jack with a lifting range of 10-1/8 to 19-7/8 inches. It runs on shop air for quick lifting, and the two-piece handle lets you pump it by hand too.
It offers 6-1/2 inches of hydraulic lift and a 3-1/8 inch extension screw. A thick jack base gives exceptional support and stability in severe conditions, and the quick-connect air valve makes hooking up and disconnecting the air hose easy, with more compact storage.
This listing includes 1 bottle jack with a two-piece handle.
Ascot AS2022 20 Ton Air/Hydraulic Bottle Jack, 301-20220
$308.31
Documents
Jack Specifications
- Capacity
- 40,000 lb
- Lift range
- 10-1/8 to 19-7/8 in
- Hydraulic lift
- 6-1/2 in
- Operation
- Air/hydraulic
| Capacity | 40,000 lb |
|---|---|
| Min height | 10-1/8 in |
| Max height | 19-7/8 in |
| Hydraulic lift | 6-1/2 in |
| Extension screw | 3-1/8 in |
| Operation | Air/hydraulic |
|---|---|
| Handle length | 9-3/8 in |
| Warranty | 1 year limited |
| Brand | Ascot |
|---|---|
| MPN | 301-20220 |
| SKU | ASC301-20220 |
| Shipping weight | 37.2 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Never work under a load held only by a jack; support it with rated jack stands or cribbing.
