Description

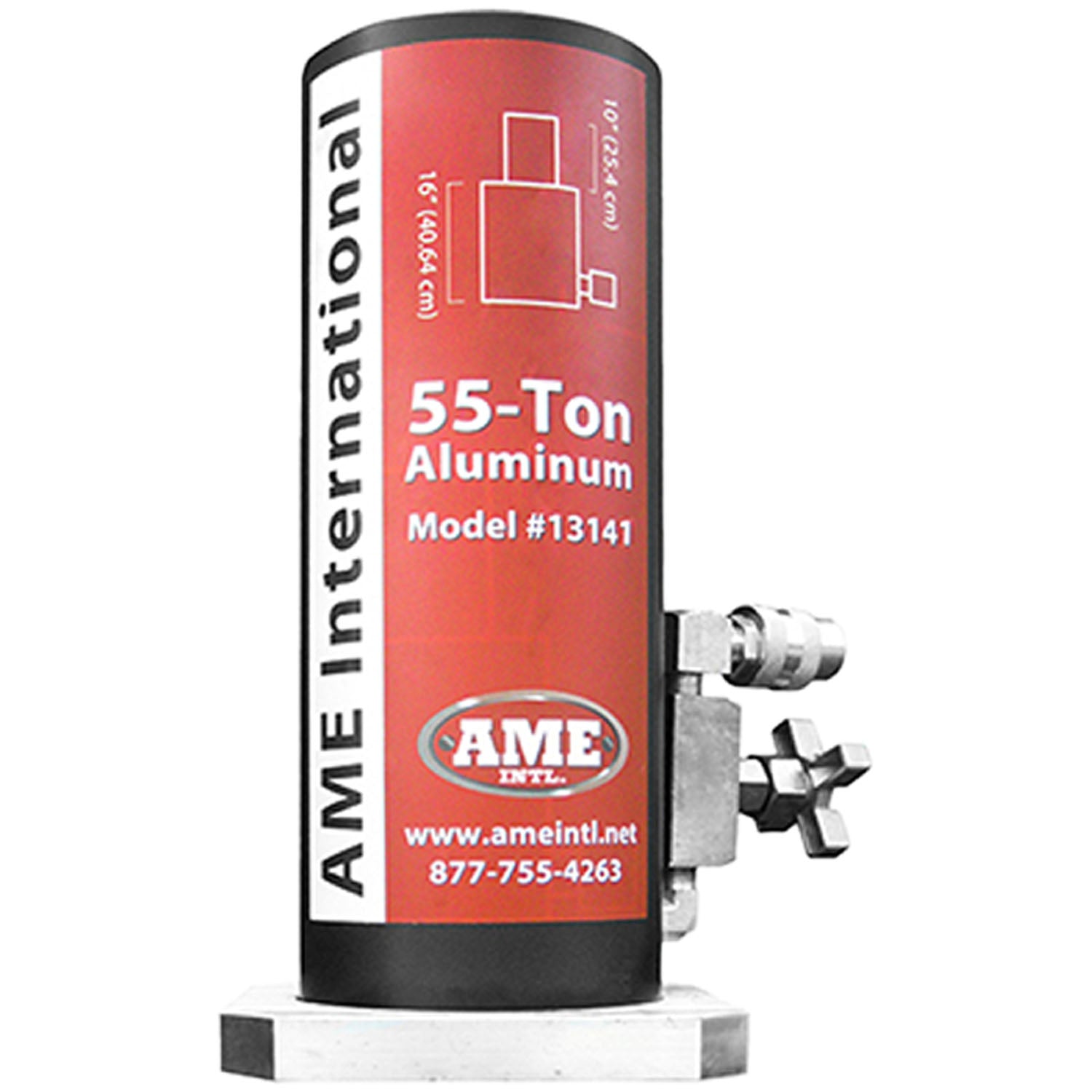

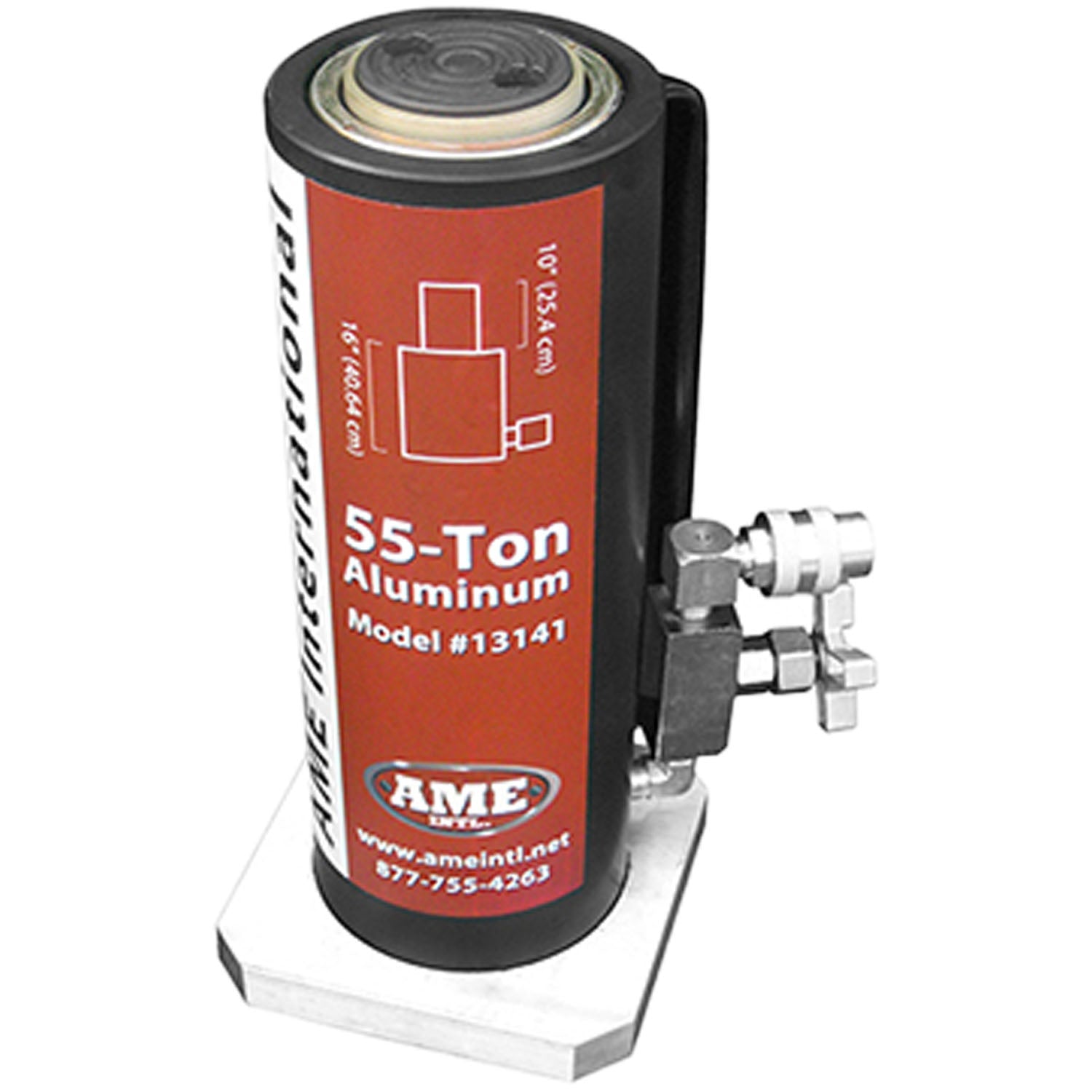

The AME 13141 Pro Series is a 55 ton aluminum jack with a 10 inch stroke, working from 15-3/4 inches retracted to 25-3/4 inches extended. Its lightweight aluminum body weighs about 29 pounds, so it is easy to handle and place under the load.
A shut-off valve lets you remove the pump while the ram is extended, and the recessed aluminum base plate lets jacks nest inside. A low profile saddle helps you lift precisely, and AME recommends pairing it with its steel cribbing and jack plates for stability.
This listing includes 1 jack with saddle and base plate.
AME 13141 Pro Series 55 Ton Aluminum Jack, 10 in Stroke
$1,666.67
Documents
Jack Specifications
- Capacity
- 110,000 lb
- Lift range
- 15-3/4 to 25-3/4 in
- Stroke
- 10 in
| Capacity | 110,000 lb |
|---|---|
| Min height | 15-3/4 in |
| Max height | 25-3/4 in |
| Stroke | 10 in |
| Weight | 29 lb |
|---|
| Brand | AME |
|---|---|
| MPN | 13141 |
| SKU | AME13141 |
| Shipping weight | 38.89 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Never work under a load held only by a jack; support it with rated jack stands or cribbing.
The AME 13141 Pro Series is a 55 ton aluminum jack with a 10 inch stroke, working from 15-3/4 inches retracted to 25-3/4 inches extended. Its lightweight aluminum body weighs about 29 pounds, so it is easy to handle and place under the load.
A shut-off valve lets you remove the pump while the ram is extended, and the recessed aluminum base plate lets jacks nest inside. A low profile saddle helps you lift precisely, and AME recommends pairing it with its steel cribbing and jack plates for stability.
This listing includes 1 jack with saddle and base plate.
