Description

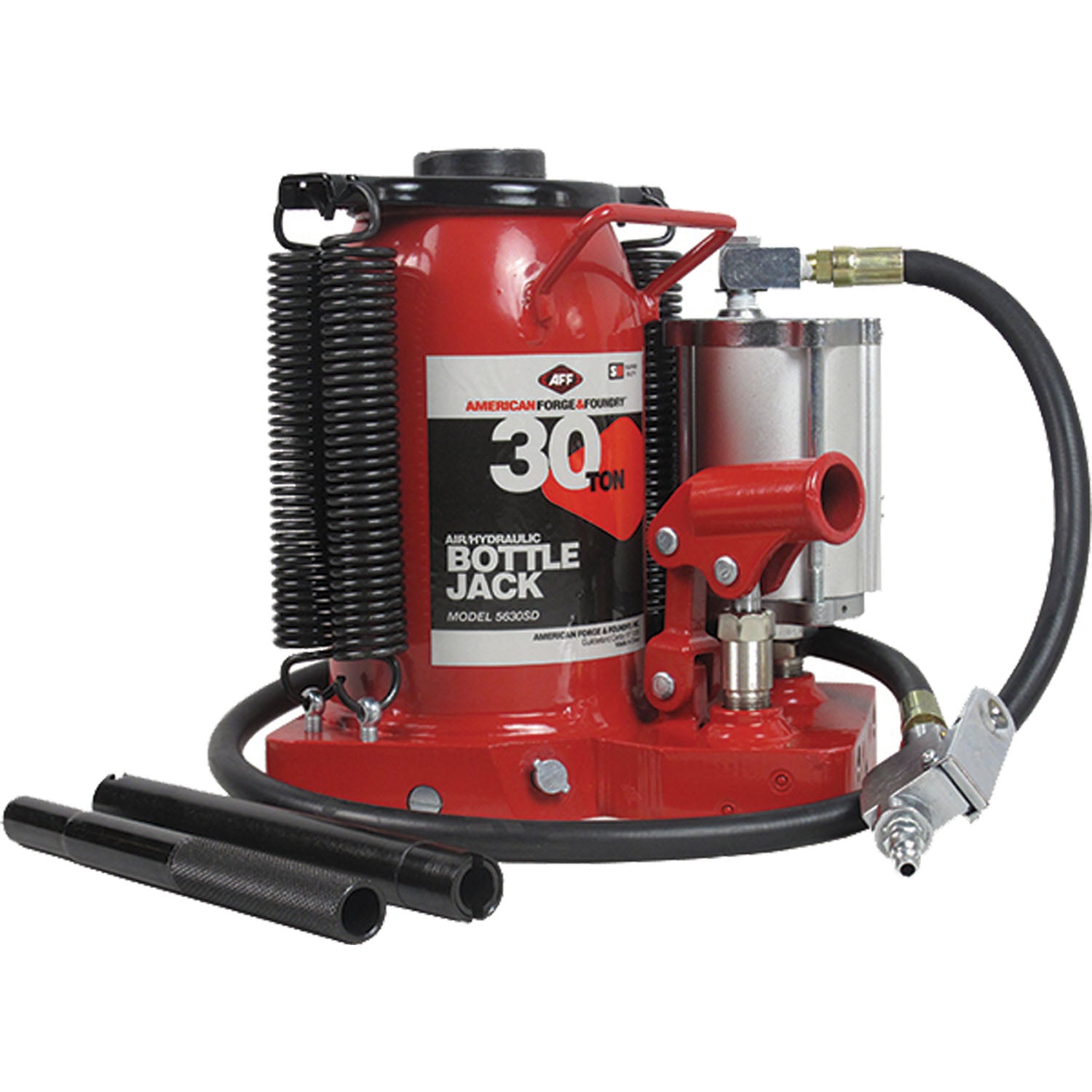

The AFF 5630SD is a 30 ton Super Duty air/hydraulic bottle jack for lifting heavy trucks and equipment. Run it on shop air for fast, easy lifting, or pump it by hand with the included handle when air is not handy.
A fully welded tank and frame and a 1-1/8 inch thick base give it a stable lifting platform even on poor surfaces. Dual return springs bring the ram down easily and under control, and the shielded release screw helps prevent accidental lowering or damage.
It works from 10-15/16 inches up to 20-9/16 inches, and the specially engineered air motor delivers consistent, reliable operation on 110 to 120 PSI shop air. The air hose swivels for easier operation.
This listing includes 1 bottle jack with handle.
AFF 5630SD 30 Ton Super Duty Air/Hydraulic Bottle Jack
$548.19
Documents
Jack Specifications
- Capacity
- 60,000 lb
- Lift range
- 10-15/16 to 20-9/16 in
- Operation
- Air/hydraulic
| Capacity | 60,000 lb |
|---|---|
| Min height | 10-15/16 in |
| Max height | 20-9/16 in |
| Operation | Air/hydraulic |
|---|---|
| Air pressure | 110 to 120 PSI |
| Air inlet | 1/4 in |
| Base size | 9.65 x 7.09 in |
| Standards | ASME/PASE |
| Warranty | 1 year limited |
| Brand | AFF |
|---|---|
| MPN | 5630SD |
| SKU | AFF5630SD |
| Shipping weight | 64.6 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Never work under a load held only by a jack; support it with rated jack stands or cribbing.
