15" x 6" 6-6 +1.125 Off White Implement Wheel
15" x 6" 6-6 +1.125 Off White Implement Wheel
Roll over image to zoom in Click on image to zoom
15" x 6" 6-6 +1.125 Off White Implement Wheel15" x 6" 6-6 +1.125 Off White Implement Wheel

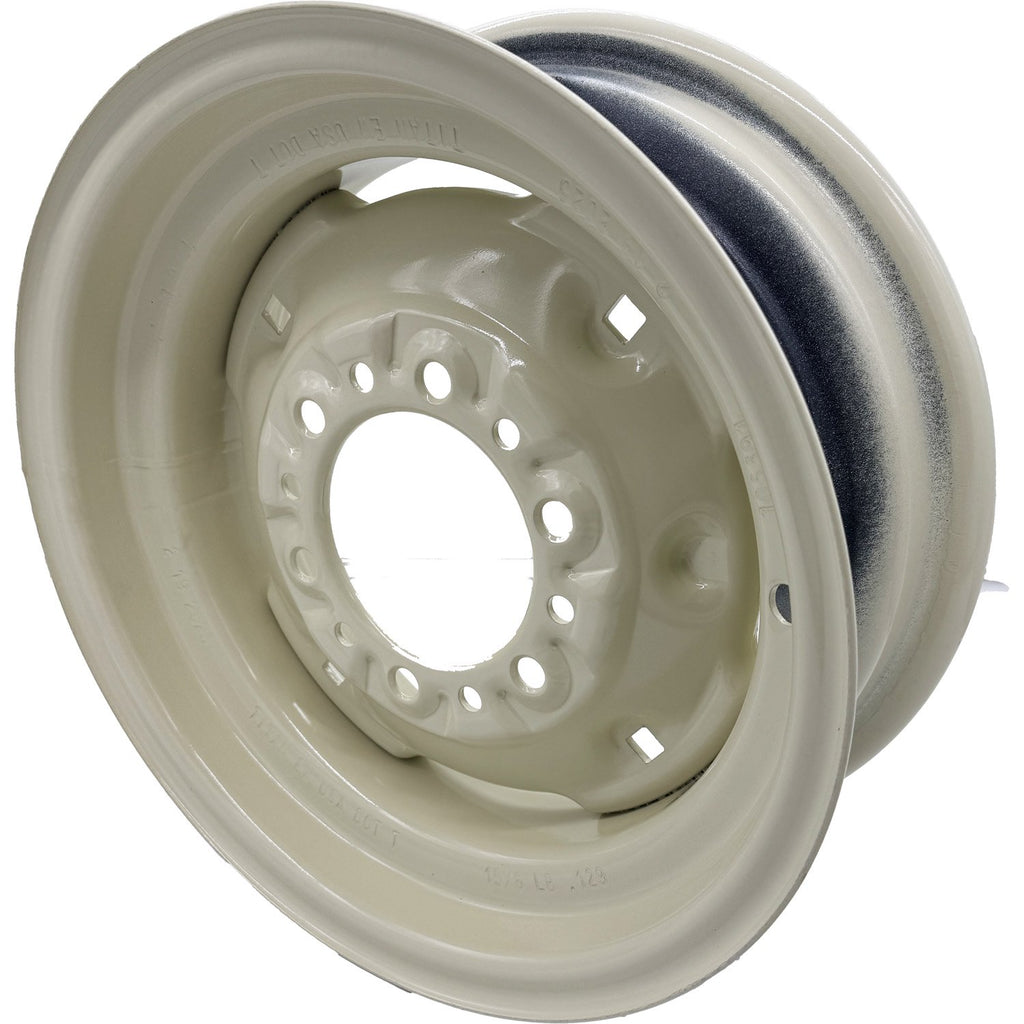

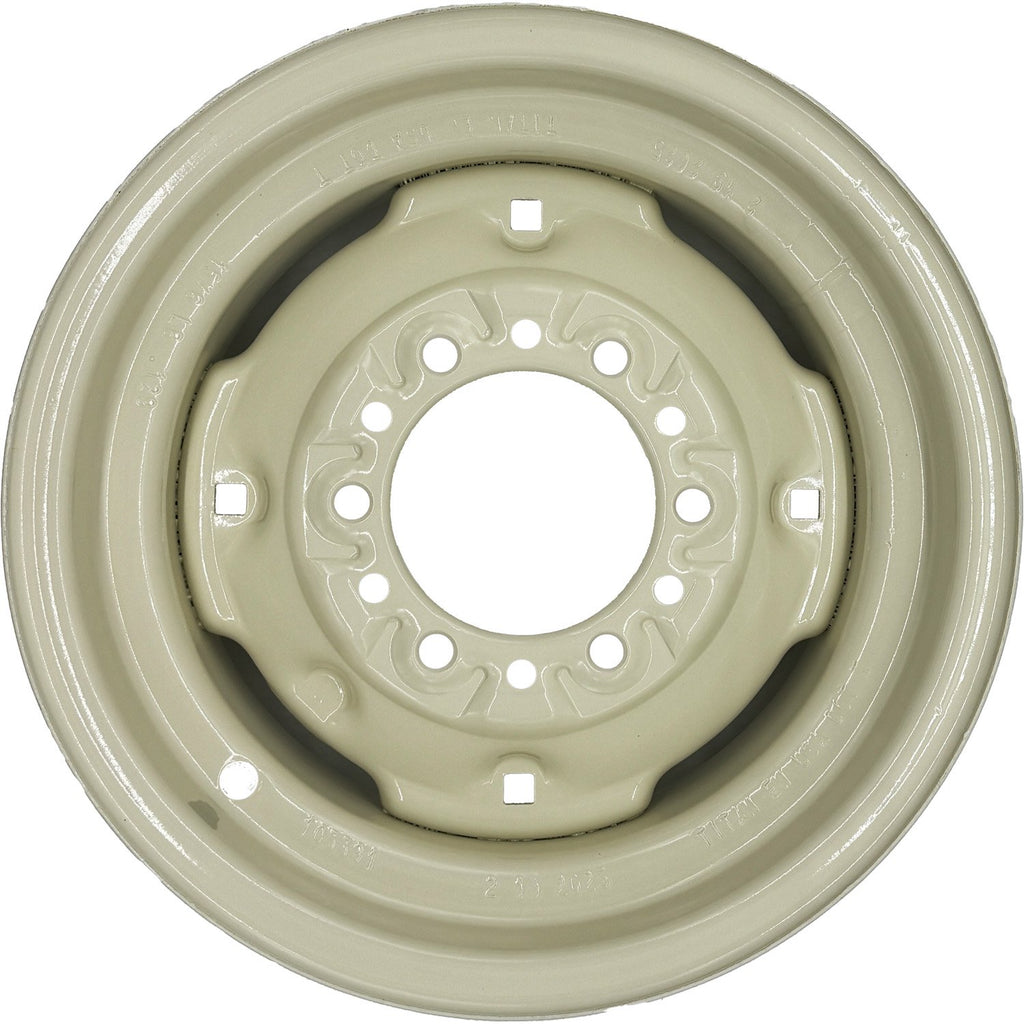

Wold 15x6" 6-6 +1.125 AG Implement Wheel - Off-Clove White

WoldSKU: WHL7679
No reviews
Price:
$147.13

Description

Get your implement rolling again with a 15 by 6 inch steel wheel rated to carry 2,800 lbs. It bolts to a 6 on 6 hub and suits implements, wagons and utility equipment built for farm work rather than highway towing.

The solid center puts a continuous steel face between hub and rim, with no openings to pack with mud or crop debris. The six 5/8 inch bolt holes are countersunk at 90 degrees, so use lug nuts or bolts with a matching 90 degree seat.

Fitment runs a 4.63 inch center hole, a 1 1/8 inch positive offset and 4 5/8 inches of backside spacing, so most of the wheel sits inboard of the hub face. Those three numbers decide whether the wheel clears your hub and frame, so check them against the wheel you are replacing rather than going by diameter alone.

This listing includes 1 wheel. Tire not included.

Wheel Specifications

Wheel size
15 x 6 in
Bolt pattern
6 on 6
Center hole
4.63 in
Load capacity
2,800 lb
Size & fitment
Rim diameter15 in
Rim width6 in
Bolt pattern6 on 6
Center hole4.63 in
Offset1.125 in
Backside spacing4.625 in
Load & application
Load capacity2,800 lb
Vehicle applicationAgricultural
General
BrandWold
SKUWHL7679

Specifications are the manufacturer's published values.

Wheel dimensions

CROSS-SECTION INBOARD vehicle side 6 in rim width 15 in rim diameter 4.625 in backspacing +1.125 in offset, toward outboard FACE VIEW 6 on 6 in bolt pattern 4.63 in center hole
Drawn to scale from the published wheel specifications. Backspacing runs from the hub mounting face to the inboard edge of the rim; a positive offset puts the mounting face outboard of the wheel centerline.
At a glance
Wheel size15 x 6 in
Bolt pattern6 on 6 in
Center hole4.63 in
Backspacing4.625 in
Offset+1.125 in
Load capacity2,800 lb
Fitment GuideNot Sure It Fits?Measure your own wheel in 7 steps, with an animated drawing for each one.Open the Guide

Get your implement rolling again with a 15 by 6 inch steel wheel rated to carry 2,800 lbs. It bolts to a 6 on 6 hub and suits implements, wagons and utility equipment built for farm work rather than highway towing.

The solid center puts a continuous steel face between hub and rim, with no openings to pack with mud or crop debris. The six 5/8 inch bolt holes are countersunk at 90 degrees, so use lug nuts or bolts with a matching 90 degree seat.

Fitment runs a 4.63 inch center hole, a 1 1/8 inch positive offset and 4 5/8 inches of backside spacing, so most of the wheel sits inboard of the hub face. Those three numbers decide whether the wheel clears your hub and frame, so check them against the wheel you are replacing rather than going by diameter alone.

This listing includes 1 wheel. Tire not included.

Features

  • Carries up to 2,800 lbs on a steel implement wheel built for farm equipment rather than highway trailers.
  • Measures 15 by 6 inches with a 1 1/8 inch positive offset and 4 5/8 inches of backside spacing, so most of the wheel sits inboard of the hub face.
  • Fits implements, wagons and utility equipment on a 6 on 6 hub, with a 4.63 inch center hole.
  • Welded steel construction with six 5/8 inch bolt holes countersunk at 90 degrees, finished in Off-Clove White.
  • Sold individually, tire not included. Use lug nuts or bolts with a 90 degree seat, and confirm bolt pattern and offset against your hub before ordering.
