Description
Premium Service engineers the solid center wheel for continuous duty, where simplicity is the specification rather than a compromise.

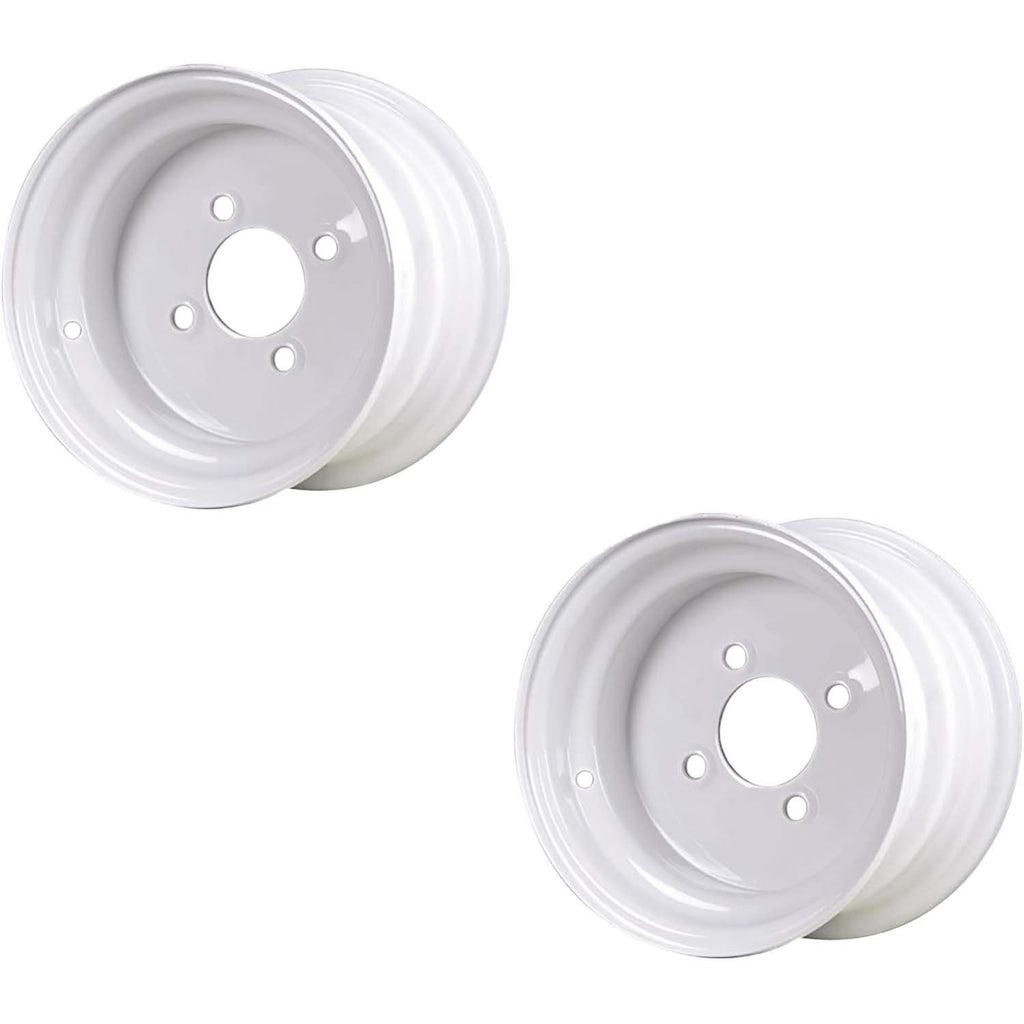

This one measures 10 by 6 inches on a 4 on 4 inch bolt pattern, rated to carry 1200 lbs, finished in white.
A continuous steel face between hub and rim, with no spoke openings to collect mud or road debris. Fewer features, fewer failure points.
Fitment runs a 2.82 inch center hole, 0 inch offset, 3.5 inches of backside spacing. Those three dimensions determine hub and brake clearance. Verify all three against the wheel currently fitted rather than matching on diameter alone.
Every Premium Service wheel is stamped from steel and finished in durable paint rated for road salt, brine and sustained exposure. We control the specification, the load rating and the finish, and we put our name on all three.
Sold as a set of 2. Tire not included.
HOW TO MEASURE YOUR BOLT PATTERN
This wheel is 4 on 4 (4x101.6 mm), which means 4 studs arranged on a 4 inch circle. Because this hub has an even number of studs, every stud has one directly opposite it. Measure from the center of one stud straight across to the center of the stud opposite, and that measurement is your circle diameter.
Measure the hub on the trailer rather than the wheel currently fitted, because the wheel already on it may be the wrong one.
Watch for a 4 on 4.5, which is only a half inch larger and is the most common mix-up on small trailer hubs.
A wheel forced onto the wrong pattern will not seat on its lug seats correctly, and a wheel that is not seated can come off in service. If your measurement does not land on this pattern, do not order this wheel.
- Carries up to 1200 lbs on a steel steel trailer wheel, which is the load rating to check against your axle before ordering.
- Measures 10 by 6 inches on a 4 on 4 inch bolt pattern with 4 lug holes.
- Center hole 2.82 inches, offset 0 inches, backside spacing 3.5 inches. Match all three to your hub before ordering.
- Finished in white, on a painted steel construction that resists the road salt and brine a trailer wheel lives in.
- Ships as a pack of 2.
Features
- Carries up to 1200 lbs on a solid center steel trailer wheel, which is the load rating to check against your axle before ordering.
- Measures 10 by 6 inches on a 4 on 4 inch bolt pattern with 4 lug holes.
- Center hole 2.82 inches, offset 0 inches, backside spacing 3.5 inches. Match all three to your hub before ordering.
- Finished in white, on a painted steel construction that resists the road salt and brine a trailer wheel lives in.
- Ships as a pack of 2, tires not included.
