Description

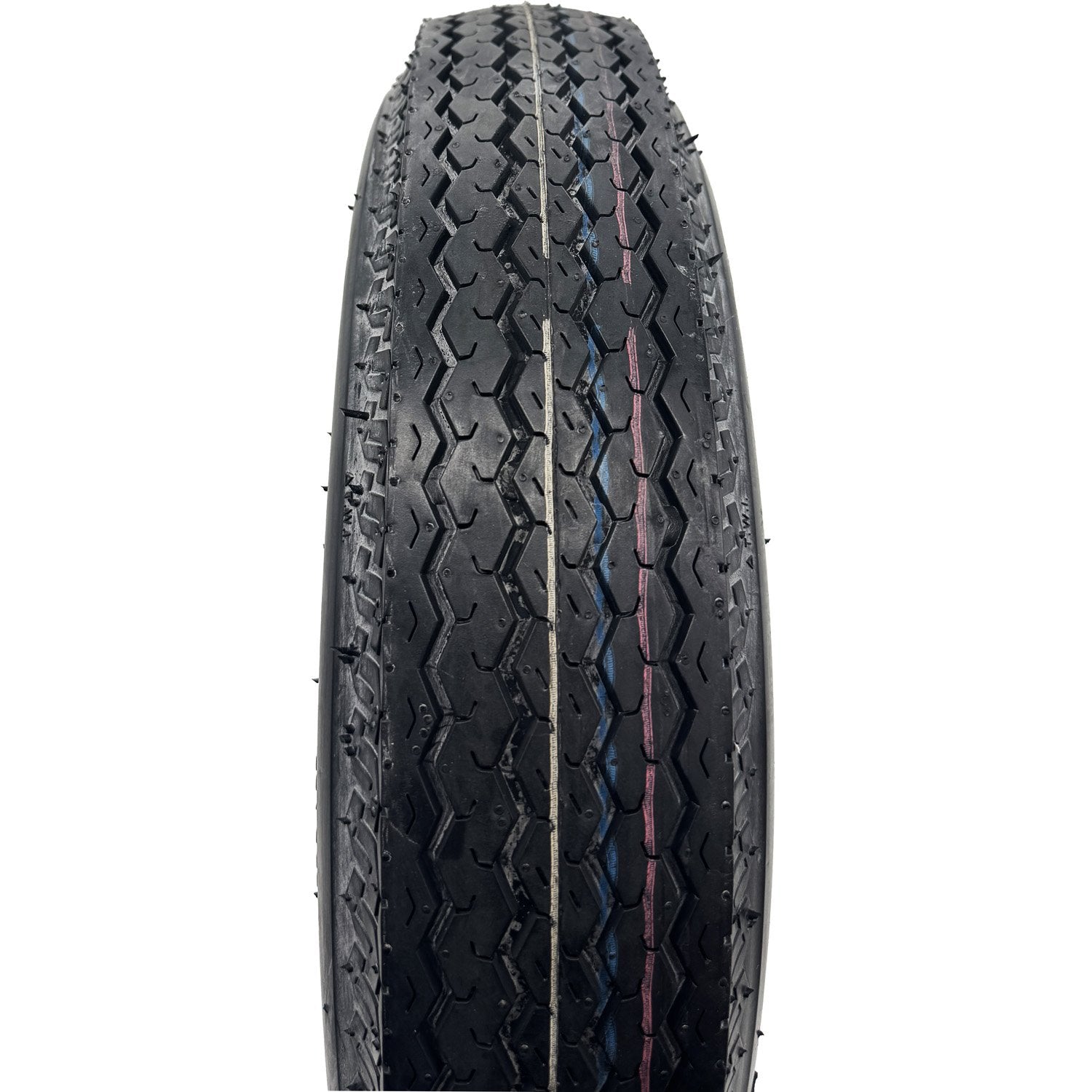

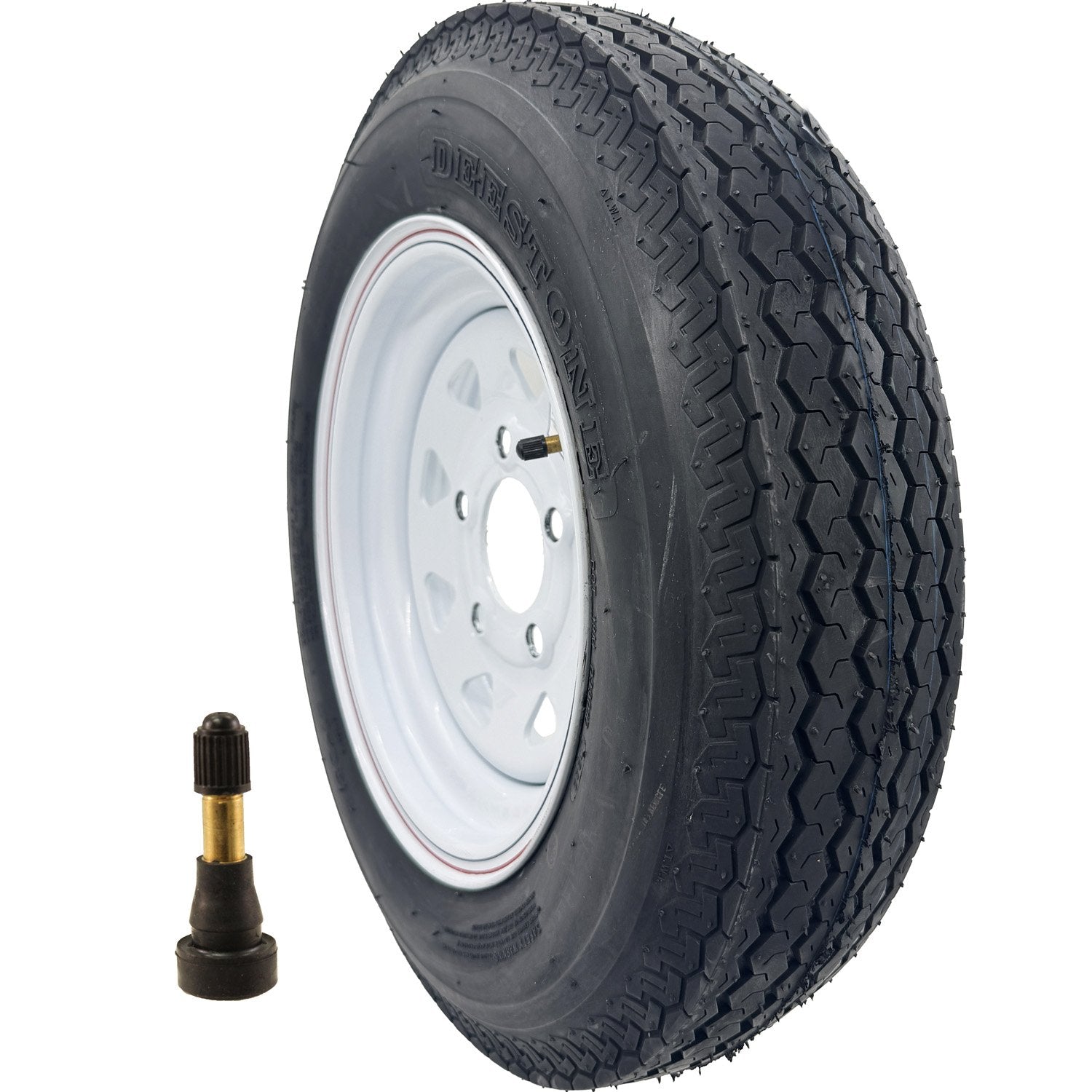

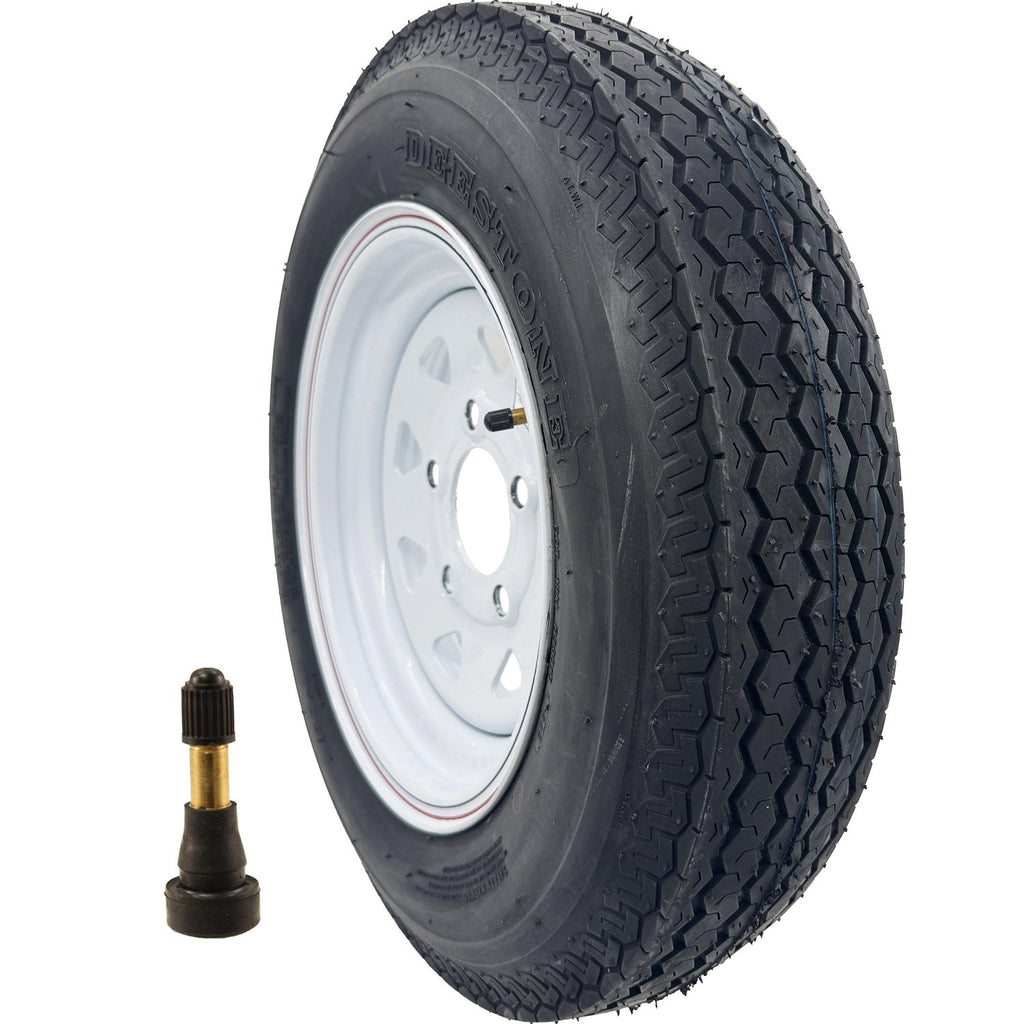

Featuring a Deestone D901 trailer tire and a Premium Service white with red and blue pinstripes modular steel wheel this tire and wheel assembly will save you time from having to mount the tire to the wheel as it is ready to install. The Deestone D901 trailer tire features a 5 rib 4 groove tread design which offers excellent handling and stability.
Tire Specs
- Model: D901
- MPN: DS7271
- Tire Size: 5.30-12
- Load Range: C
- # of Ply's: 6
- Speed Rating: J
- Mtd. Diameter (Inches): 22.1
- Mtd. Width (Inches): 5.3
- Rim Width (Inches): 4.25
- Max Load (lbs): 1045
- Max PSI: 80
- Tread Depth (32nds): 6
- Tire Weight (lbs): 10.494
- Tire Quantity: 1
Wheel Specs
- Size: 12x4
- Bolt Pattern: 5x4.5
- Center Hole (Inches): 2.95
- Offset (Inches): 0
- Backside Spacing (Inches): 2.5
- Load Capacity (lb): 1520
Features
- Tire and Wheel Assembly
- Spoked Steel Wheel
- 5 Lug
- Ready to Install
- White with Red and Blue Pin Striping
- Tire size5.30-12
- Rim12 in
- Rim width4.25 in
- Load rangeC (6 ply)
- Max load1,045 lb @ 80 PSI
- TypeBias
Quantity

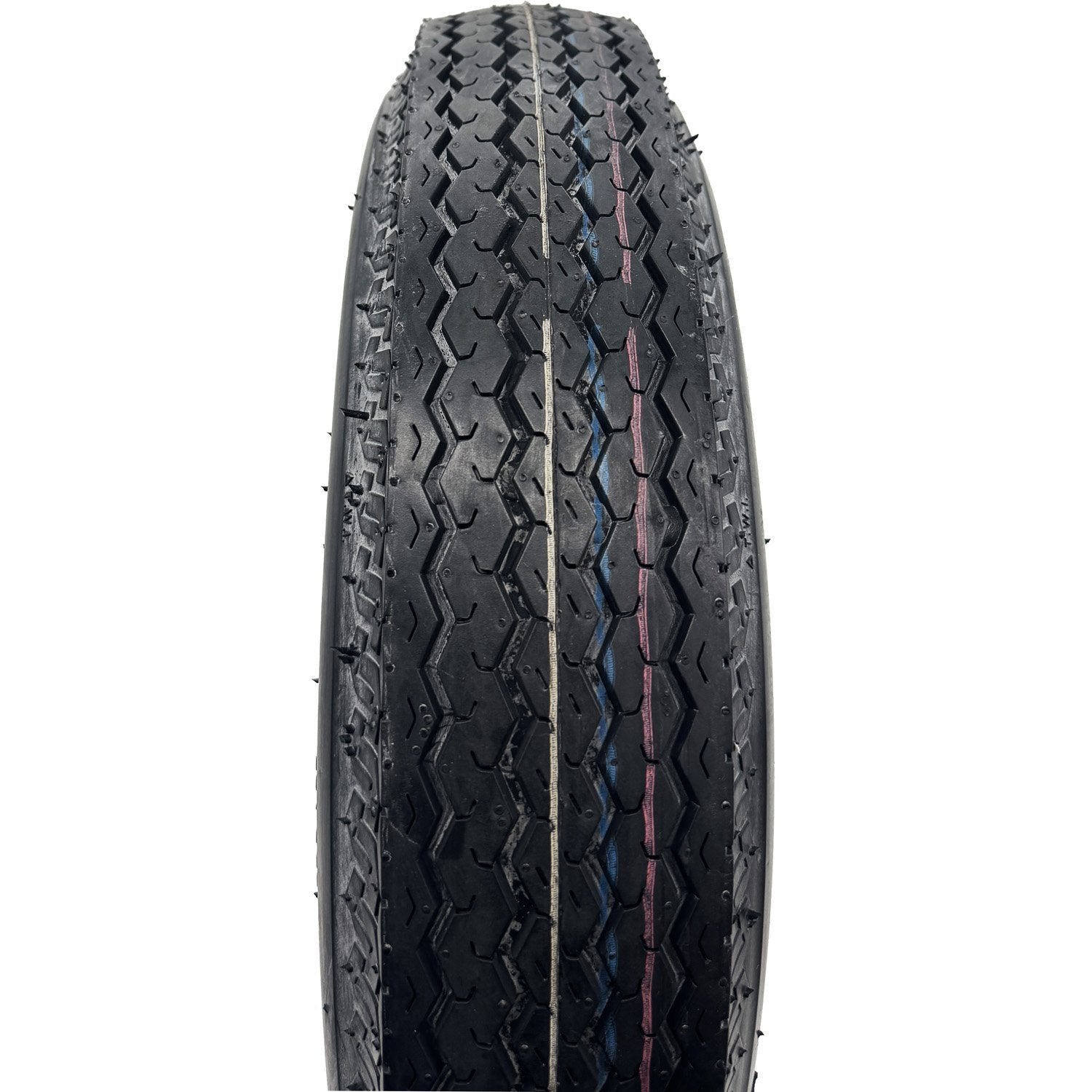

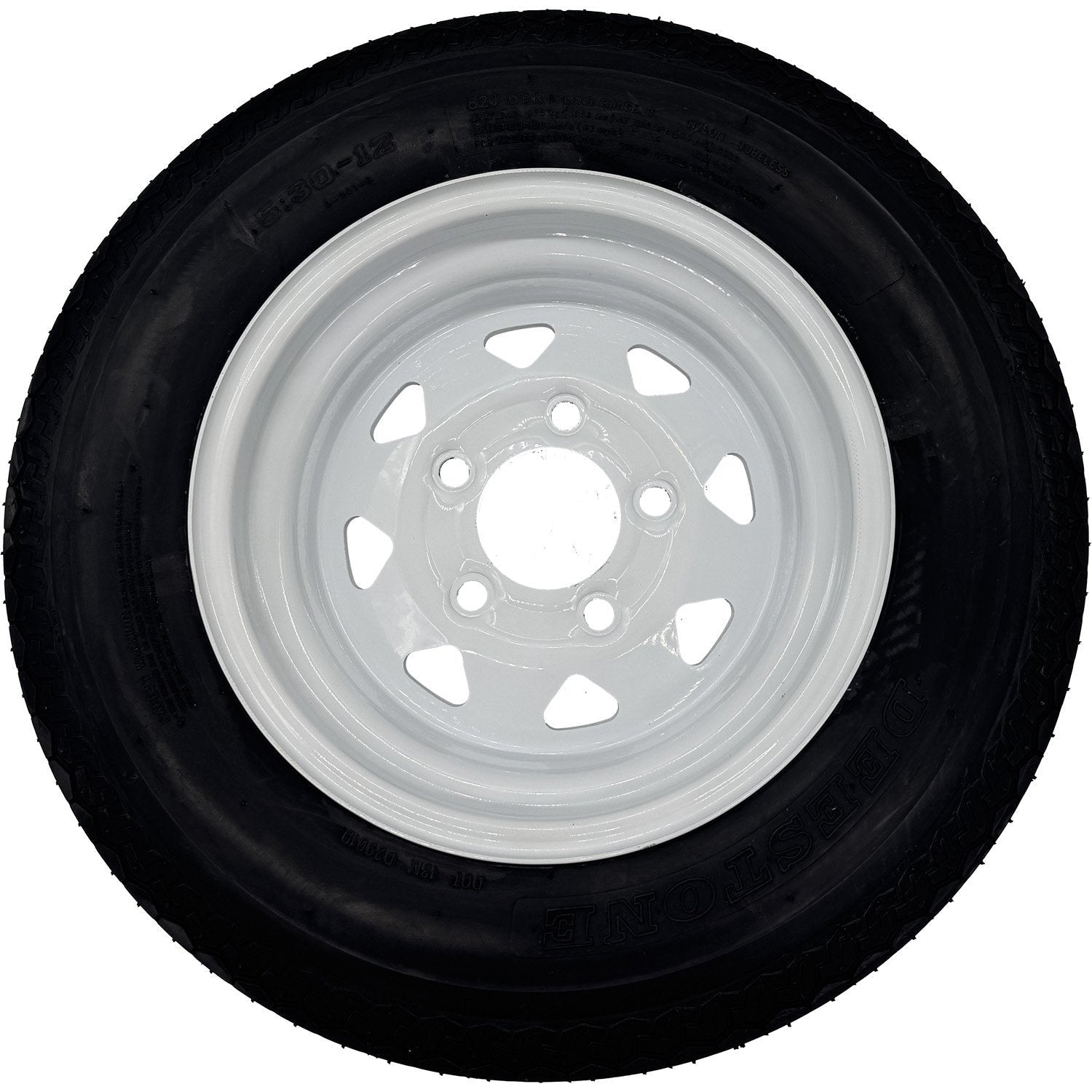

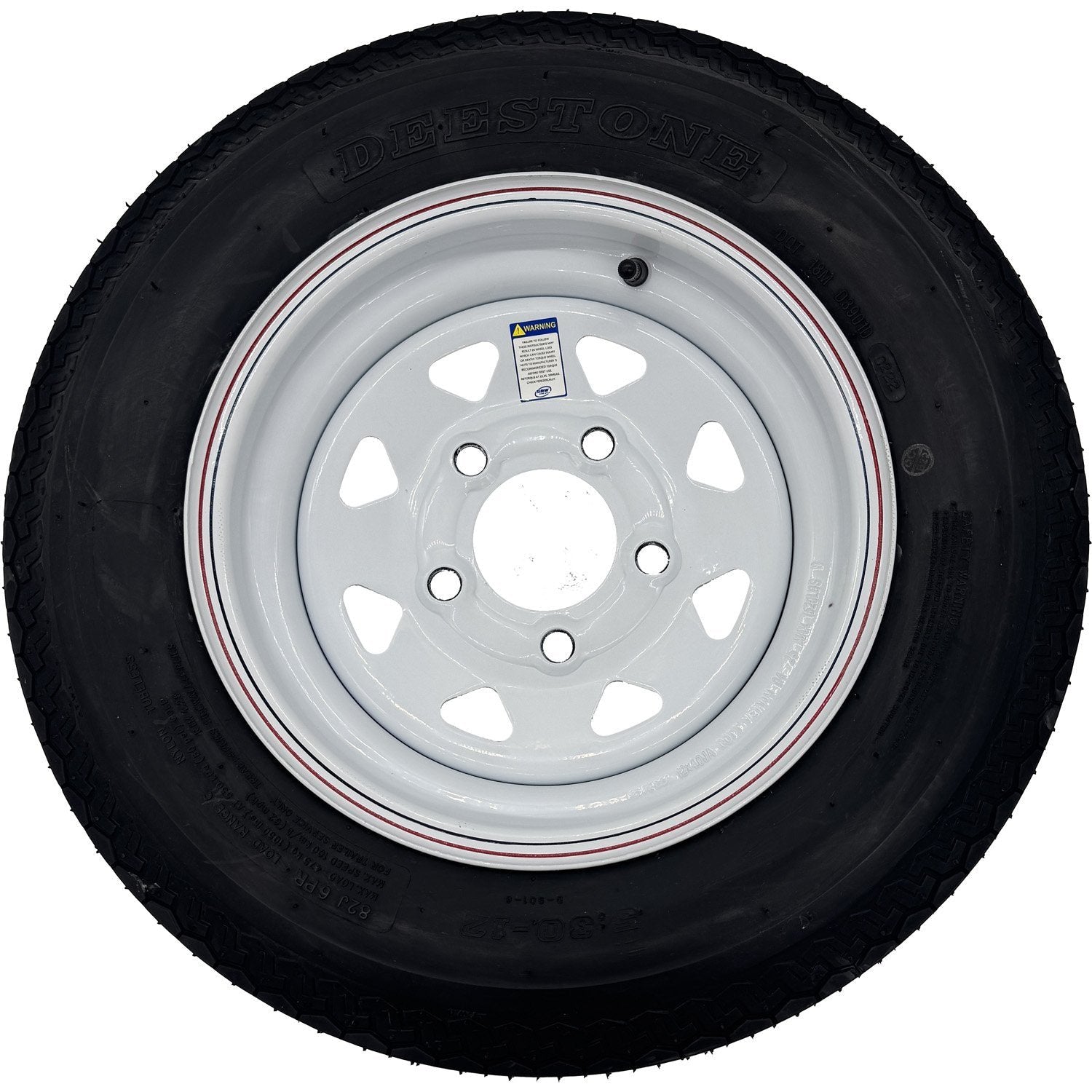

Deestone D901 5.30-12 LRC 6 Ply Trailer Tire on a 5 on 4.5 Spoked Wheel
$79.65
Documents
Tire Specifications
- Tire size
- 5.30-12
- Overall diameter
- 21.6 in
- Section width
- 5.3 in
- Ply rating
- 6
| Tire size | 5.30-12 |
|---|---|
| Rim diameter | 12 in |
| Approved rim widths | 4.25 in |
| Vehicle application | Trailer |
| Construction | Bias |
|---|---|
| Ply rating | 6 |
| Load range | C |
| Overall diameter (actual) | 21.6 in |
|---|---|
| Section width (actual) | 5.3 in |
| Tread depth (new) | 6/32" |
| Load index | 82 |
|---|---|
| Max load per tire (single) | 1,045 lb |
| Cold pressure at max load | 80 PSI |
| Speed rating | J |
| Package contents | Mounted tire and wheel |
|---|---|
| Tires included | 1 |
| Brand | Deestone |
|---|---|
| MPN | 19065 | 7610X |
| SKU | TWA19065/7610X |
| Shipping weight | 21.57 lb |
Wheel & Hub Specifications
| Rim width | 4 in |
|---|---|
| Bolt pattern | 5 on 4.5 |
| Center hole | 2.95 in |
| Offset | 0 in |
| Backside spacing | 2.5 in |
| Load capacity | 1,520 lb |
|---|
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.
Mounted dimensions
| Tire size | 5.30-12 |
|---|---|
| Overall diameter | 21.6 in |
| Section width | 5.3 in |
| Rim diameter | 12 in |
| Approved rim width | 4.25 in |
| Tread depth (new) | 6/32" |
Wheel dimensions
| Wheel size | 12 x 4 in |
|---|---|
| Bolt pattern | 5 on 4.5 in |
| Center hole | 2.95 in |
| Backspacing | 2.5 in |
| Offset | 0 in |
| Load capacity | 1,520 lb |
Dimensions for this option are not available yet.
Featuring a Deestone D901 trailer tire and a Premium Service white with red and blue pinstripes modular steel wheel this tire and wheel assembly will save you time from having to mount the tire to the wheel as it is ready to install. The Deestone D901 trailer tire features a 5 rib 4 groove tread design which offers excellent handling and stability.
Tire Specs
- Model: D901
- MPN: DS7271
- Tire Size: 5.30-12
- Load Range: C
- # of Ply's: 6
- Speed Rating: J
- Mtd. Diameter (Inches): 22.1
- Mtd. Width (Inches): 5.3
- Rim Width (Inches): 4.25
- Max Load (lbs): 1045
- Max PSI: 80
- Tread Depth (32nds): 6
- Tire Weight (lbs): 10.494
- Tire Quantity: 1
Wheel Specs
- Size: 12x4
- Bolt Pattern: 5x4.5
- Center Hole (Inches): 2.95
- Offset (Inches): 0
- Backside Spacing (Inches): 2.5
- Load Capacity (lb): 1520
Features
