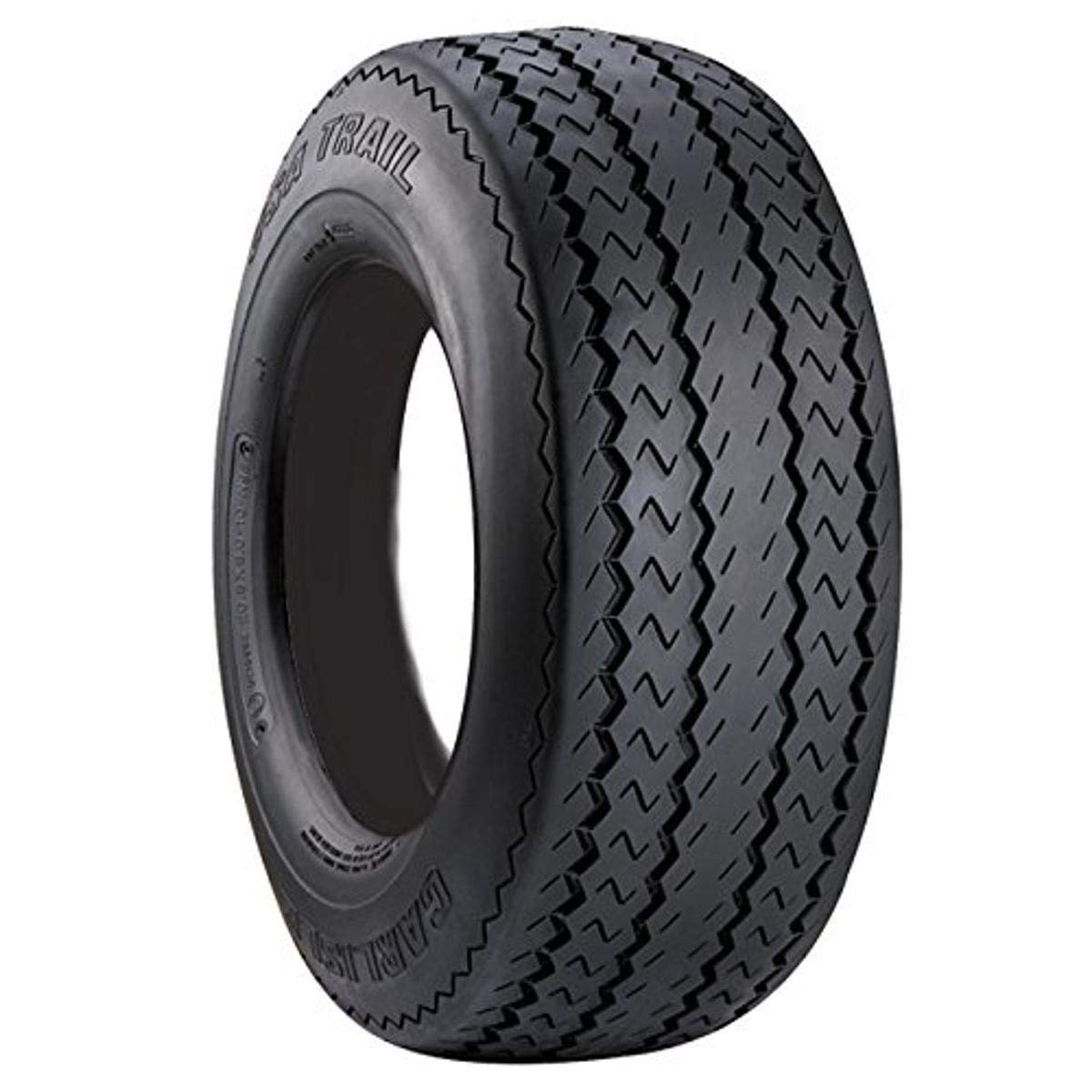

Carlisle USA Trail Trailer Tire LRC 6Ply 6.90-9
Roll over image to zoom in Click on image to zoom
Carlisle USA Trail Trailer Tire LRC 6Ply 6.90-9

Carlisle USA Trail Trailer Tire LRC 6Ply 6.90-9

CarlisleSKU: TIR1360
No reviews
Price:
$116.18

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The USA Trail is a bias-ply trailer tire built for long-lasting wear. Rugged grooves channel water in wet conditions for steady towing, and it is made in the USA.

Tire Specifications

Tire size
6.90-9
Overall diameter
22 in
Section width
7.1 in
Ply rating
6
Size & fitment
Tire size6.90-9
Rim diameter9 in
Approved rim widths4.5 in
PositionAll Positions
Vehicle applicationTrailer
TerrainHighway and paved roads
Construction
ConstructionBias
Ply rating6
Load rangeC
Tube requirementTubeless
Dimensions
Overall diameter (actual)22 in
Section width (actual)7.1 in
Tread depth (new)10/32"
Load & speed
Load index84
Max load per tire (single)1,100 lb
Cold pressure at max load60 PSI
Speed ratingJ
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN519572
SKUTIR1360
Shipping weight13.6 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

7.1 in section width 22 in overall diameter 9 in rim diameter 4.5 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size6.90-9
Overall diameter22 in
Section width7.1 in
Rim diameter9 in
Approved rim width4.5 in
Tread depth (new)10/32"

The USA Trail is a bias-ply trailer tire built for long-lasting wear. Rugged grooves channel water in wet conditions for steady towing, and it is made in the USA.

Features

  • Rugged grooves channel water for steady towing in wet conditions.
  • Measures 6.90-9 with a 22.0 inch mounted diameter and 7.1 inch mounted width, and carries up to 1,100 lbs at 60 PSI (load index 84).
  • Made for boat, cargo and utility trailers. Mounts on a 4.5 inch wide rim.
  • Bias ply tubeless construction, 6 ply rated (Load Range C), with 10/32 inch tread depth. Long wearing bias ply build. Made in the USA. DOT compliant for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
