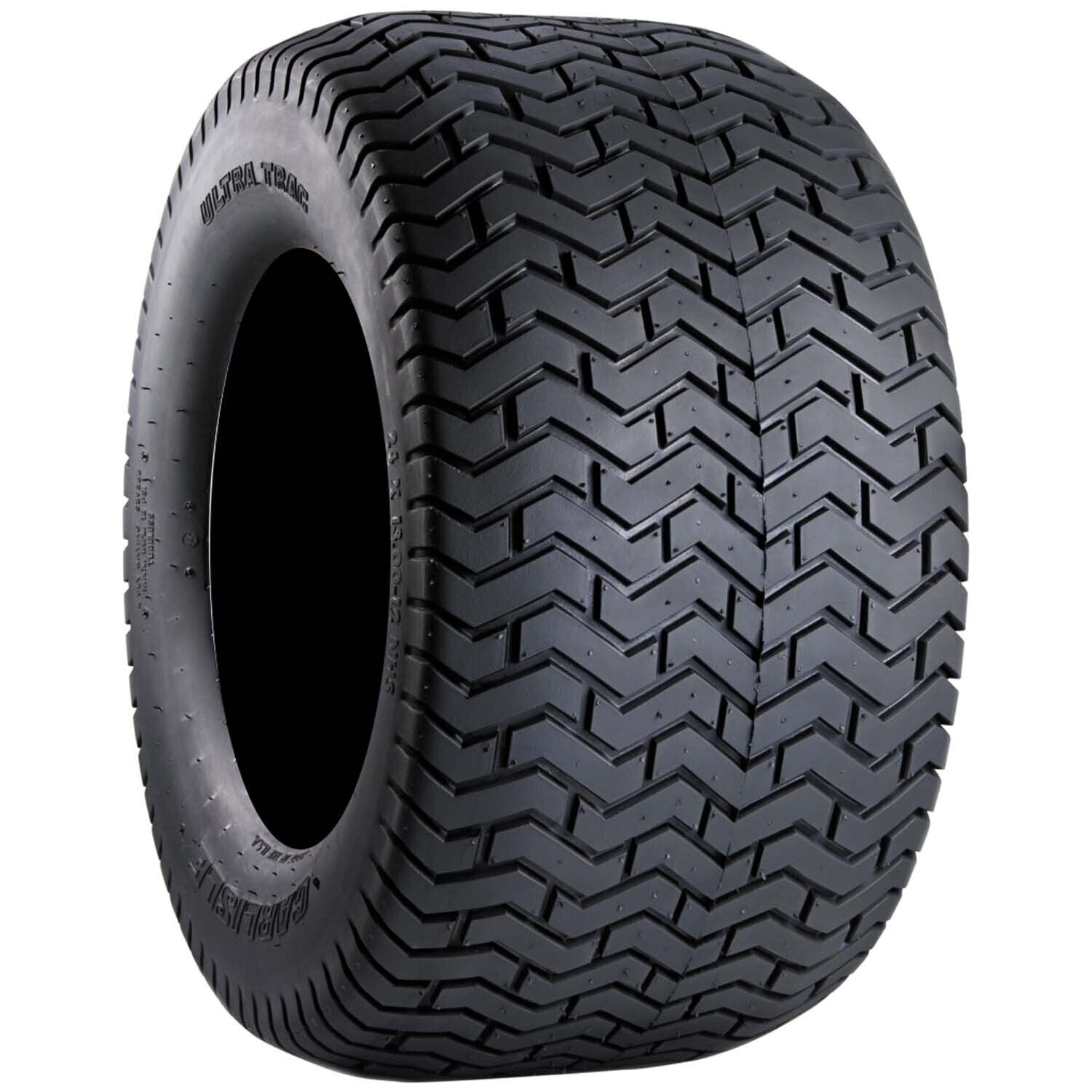

Carlisle Ultra Trac Lawn and Garden Tire 6ply 24x13.00-12
Carlisle Ultra Trac Lawn and Garden Tire 6ply 24x13.00-12
Carlisle Ultra Trac Lawn and Garden Tire 6ply 24x13.00-12
Roll over image to zoom in Click on image to zoom
Carlisle Ultra Trac Lawn and Garden Tire 6ply 24x13.00-12Carlisle Ultra Trac Lawn and Garden Tire 6ply 24x13.00-12Carlisle Ultra Trac Lawn and Garden Tire 6ply 24x13.00-12

Carlisle Ultra Trac Lawn and Garden Tire 6ply 24x13.00-12

CarlisleSKU: TIR18560
No reviews
Price:
$230.68

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Ultra Trac is a high-flotation turf tire for large grounds maintenance and golf course equipment. Its wide, flat footprint and low-void tread spread weight over a big contact area, so heavy machines roll across delicate turf without leaving tracks. Choose it when turf protection matters most.

Tire Specifications

Tire size
24x13.00-12
Overall diameter
23.4 in
Section width
12.9 in
Ply rating
6
Size & fitment
Tire size24x13.00-12
Rim diameter12 in
Approved rim widths10.5 in
PositionAll Positions
Vehicle applicationLawn & Garden
TerrainTurf and soft ground
Construction
ConstructionBias
Ply rating6
Load rangeC
Tube requirementTubeless
Dimensions
Overall diameter (actual)23.4 in
Section width (actual)12.9 in
Load & speed
Load index109
Max load per tire (single)2,270 lb
Cold pressure at max load28 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN529387
SKUTIR18560
Shipping weight27.88 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

12.9 in section width 23.4 in overall diameter 12 in rim diameter 10.5 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size24x13.00-12
Overall diameter23.4 in
Section width12.9 in
Rim diameter12 in
Approved rim width10.5 in

The Ultra Trac is a high-flotation turf tire for large grounds maintenance and golf course equipment. Its wide, flat footprint and low-void tread spread weight over a big contact area, so heavy machines roll across delicate turf without leaving tracks. Choose it when turf protection matters most.

Features

  • Wide, flat footprint spreads weight so heavy equipment rolls across turf without leaving tracks.
  • Measures 24x13.00-12 with a 23.4 inch mounted diameter and 12.9 inch mounted width, and carries up to 2,270 lbs at 28 PSI (load index 109, rated at 12.5 MPH).
  • Made for golf course and large grounds maintenance equipment. Mounts on a 10.5 inch wide rim.
  • Bias ply tubeless construction, 6 ply rated (Load Range C). High flotation design with reduced tread void for maximum turf protection. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
