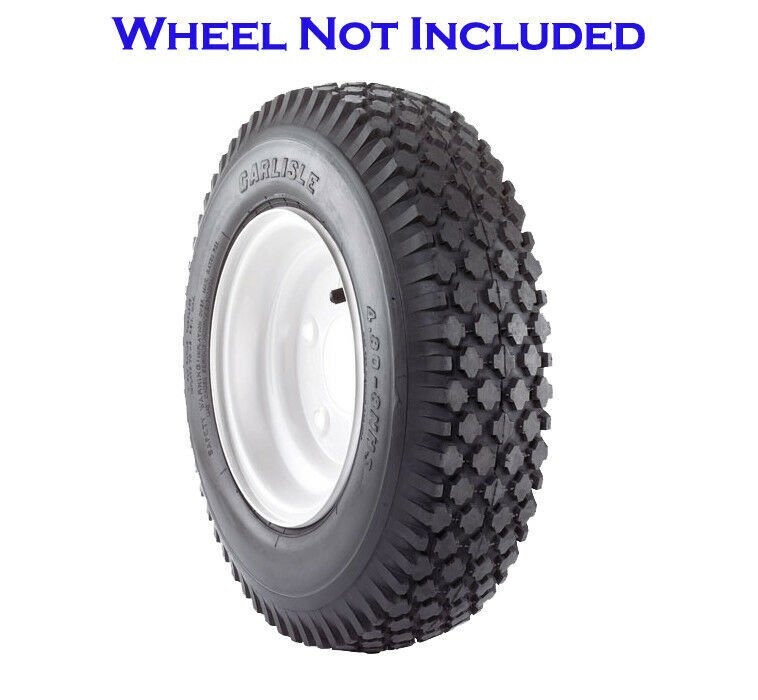

Carlisle Stud Utility Tire 2ply 4.10-6
Carlisle Stud Utility Tire 2ply 4.10-6
Carlisle Stud Utility Tire 2ply 4.10-6
Roll over image to zoom in Click on image to zoom
Carlisle Stud Utility Tire 2ply 4.10-6Carlisle Stud Utility Tire 2ply 4.10-6Carlisle Stud Utility Tire 2ply 4.10-6

Carlisle Stud Utility Tire 2ply 4.10-6

CarlisleSKU: TIR3056
No reviews
Price:
$42.43

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Stud tire has an aggressive stud tread that grips on soft dirt, snow and pavement. It is a go-to replacement for hand trucks, pressure washers, industrial carts and other utility equipment that needs to keep rolling over rough ground.

Tire Specifications

Tire size
4.10-6
Overall diameter
12.5 in
Section width
3.9 in
Ply rating
2
Size & fitment
Tire size4.10-6
Rim diameter6 in
Approved rim widths3.25 in
PositionAll Positions
Vehicle applicationLawn & Garden
TerrainDirt, snow and pavement
Construction
ConstructionBias
Ply rating2
Load rangeA
Tube requirementTubeless
Dimensions
Overall diameter (actual)12.5 in
Section width (actual)3.9 in
Load & speed
Load index38
Max load per tire (single)290 lb
Cold pressure at max load24 PSI
Speed ratingNHS: Not for Highway Service
What's included
Package contentsTire only
Tires included1
General
BrandCarlisle
MPN5160351
SKUTIR3056
Shipping weight2.59 lb

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

3.9 in section width 12.5 in overall diameter 6 in rim diameter 3.25 in rim width
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire size4.10-6
Overall diameter12.5 in
Section width3.9 in
Rim diameter6 in
Approved rim width3.25 in

The Stud tire has an aggressive stud tread that grips on soft dirt, snow and pavement. It is a go-to replacement for hand trucks, pressure washers, industrial carts and other utility equipment that needs to keep rolling over rough ground.

Features

  • Aggressive stud tread grips on soft dirt, snow and pavement.
  • Measures 4.10-6 with a 12.5 inch mounted diameter and 3.9 inch mounted width, and carries up to 290 lbs at 24 PSI (load index 38, rated at 10 MPH).
  • Made for hand trucks, pressure washers, industrial carts and utility equipment. Mounts on a 3.25 inch wide rim.
  • Bias ply tubeless construction, 2 ply rated (Load Range A). Rugged stud tread for multi-surface grip. Not for highway use.
  • Sold as 1 tire. Wheel not included. Match the size on your current sidewall before ordering.
