Description
The Sport Trail is a bias-ply trailer tire with a radial look. Its tread profile and formulation lower rolling resistance for efficient towing, and it is built for long-lasting, dependable service on utility and boat trailers.
- Tire size20.5x8.0-10
- Rim10 in
- Rim width6 in
- Load rangeD (8 ply)
- Max load1,320 lb @ 70 PSI
- TypeTubeless, bias
Quantity

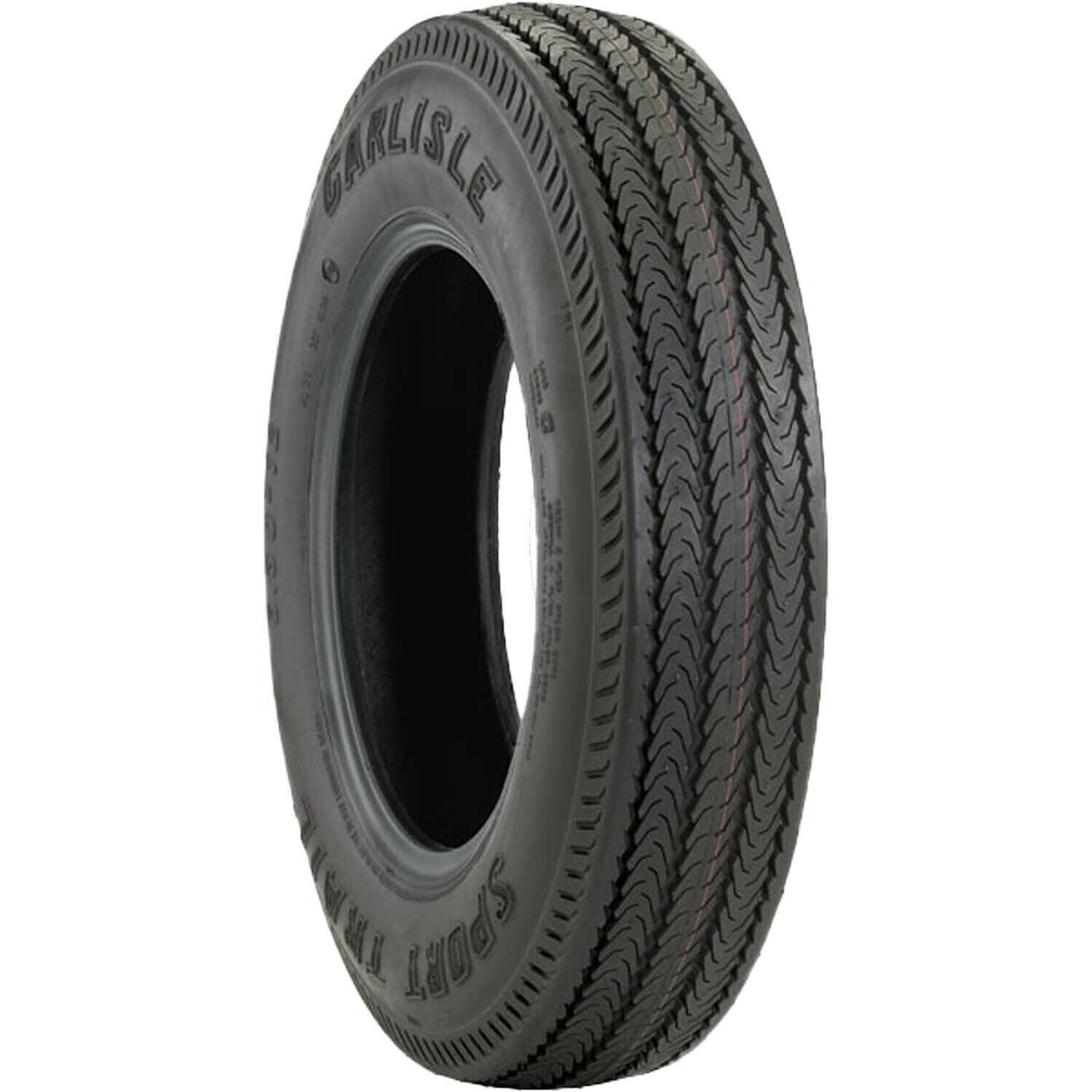

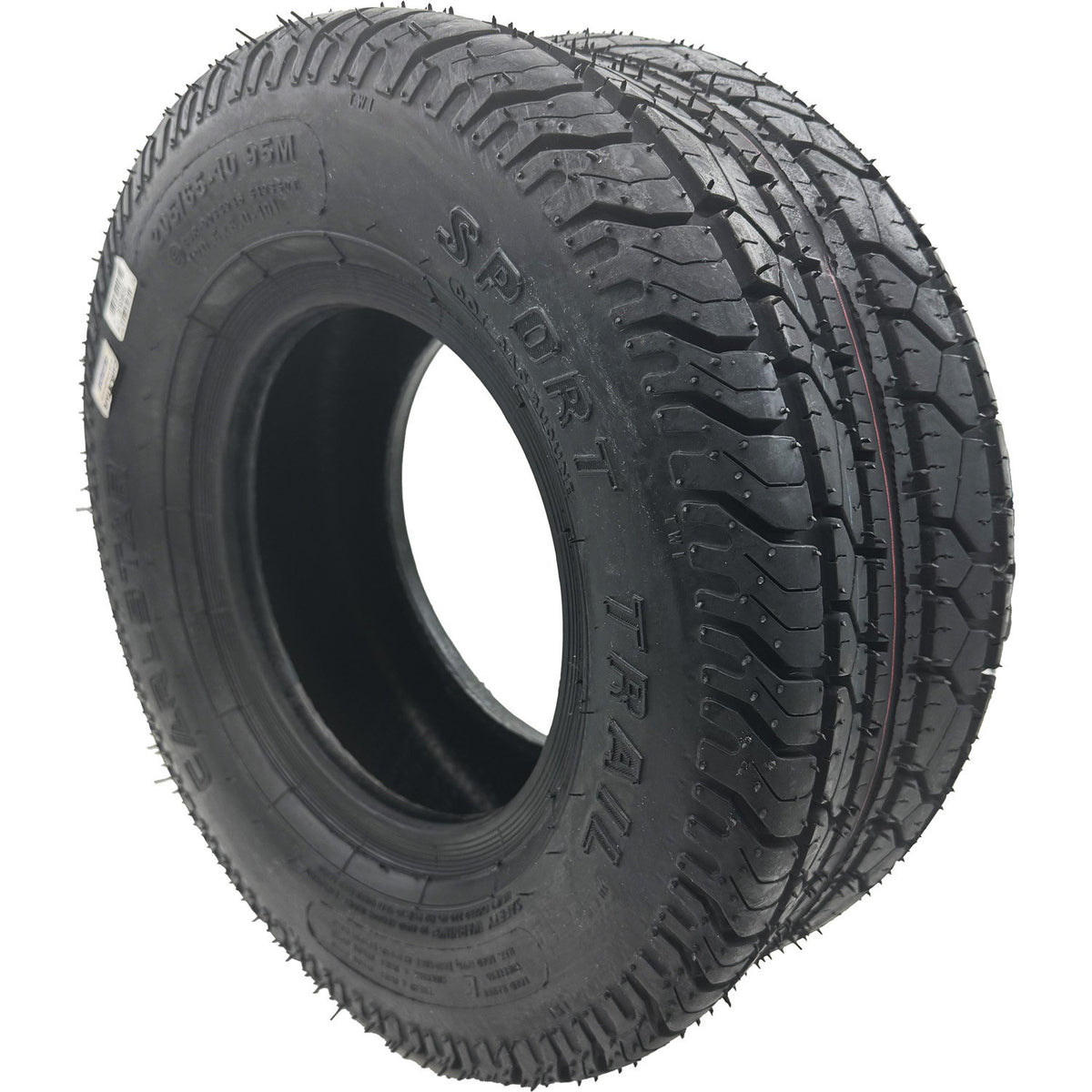

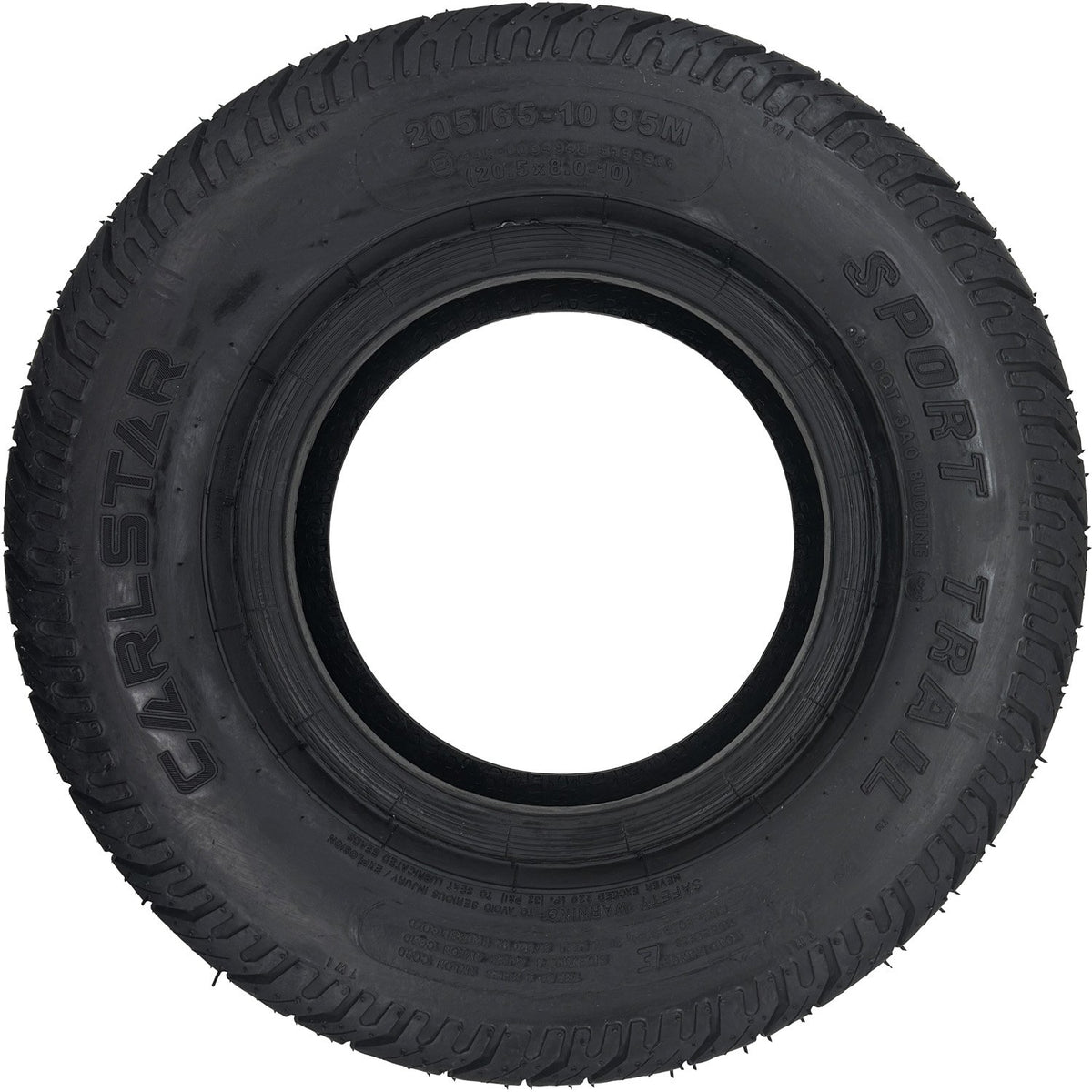

Carlisle Sport Trail Trailer Tire LRD 8ply 20.5x8.0-10
$110.08
Documents
Tire Specifications
- Tire size
- 20.5x8.0-10
- Overall diameter
- 20.7 in
- Section width
- 8.3 in
- Ply rating
- 8
| Tire size | 20.5x8.0-10 |
|---|---|
| Rim diameter | 10 in |
| Approved rim widths | 6 in |
| Position | All Positions |
| Vehicle application | Trailer |
| Terrain | Highway and paved roads |
| Construction | Bias |
|---|---|
| Ply rating | 8 |
| Load range | D |
| Tube requirement | Tubeless |
| Overall diameter (actual) | 20.7 in |
|---|---|
| Section width (actual) | 8.3 in |
| Tread depth (new) | 10/32" |
| Load index | 90 |
|---|---|
| Max load per tire (single) | 1,320 lb |
| Cold pressure at max load | 70 PSI |
| Speed rating | J |
| Package contents | Tire only |
|---|---|
| Tires included | 1 |
| Brand | Carlisle |
|---|---|
| MPN | 5193491 |
| SKU | TIR20148 |
| Shipping weight | 17 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.
Mounted dimensions
| Tire size | 20.5x8.0-10 |
|---|---|
| Overall diameter | 20.7 in |
| Section width | 8.3 in |
| Rim diameter | 10 in |
| Approved rim width | 6 in |
| Tread depth (new) | 10/32" |
Dimensions for this option are not available yet.
The Sport Trail is a bias-ply trailer tire with a radial look. Its tread profile and formulation lower rolling resistance for efficient towing, and it is built for long-lasting, dependable service on utility and boat trailers.
Features
