Maximum rated capacity per inch of diameter. That is the case for the Premium Service modular center, and the reason it goes under working trailers.

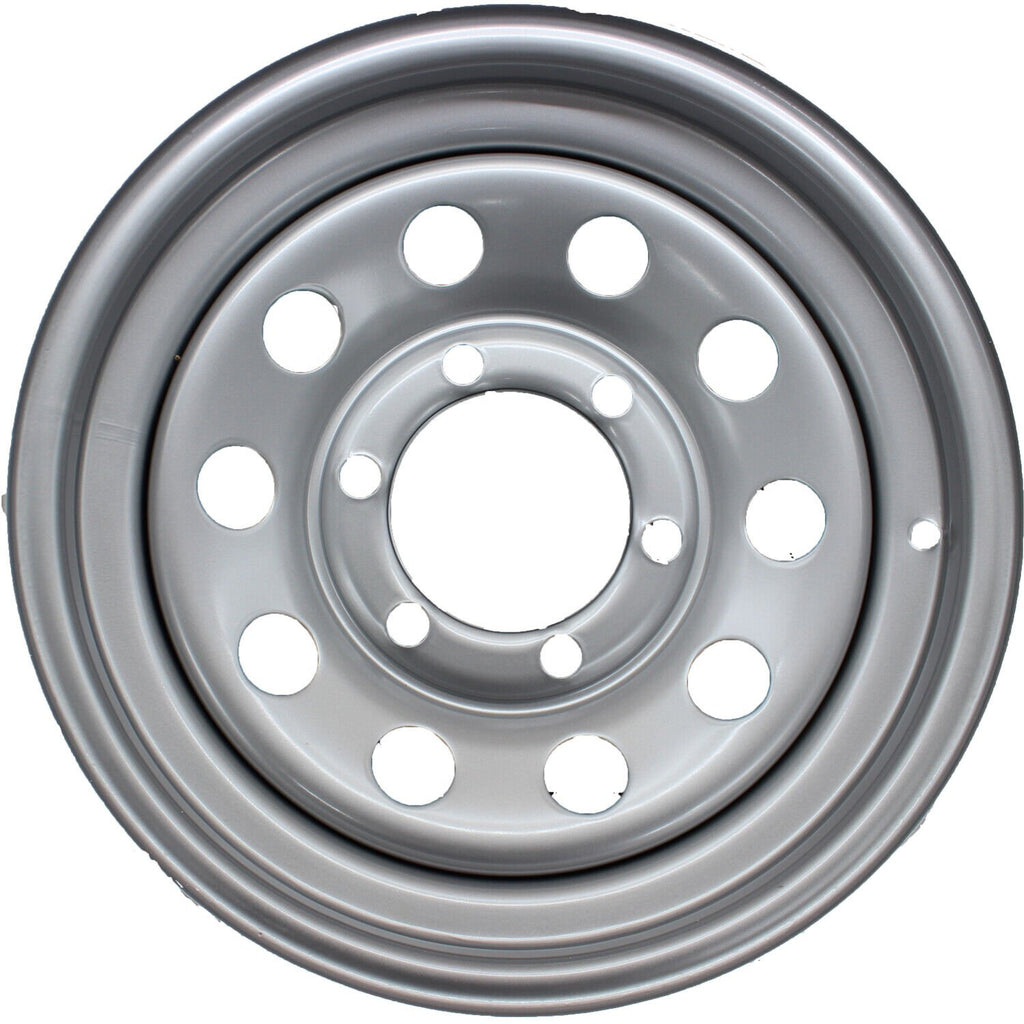

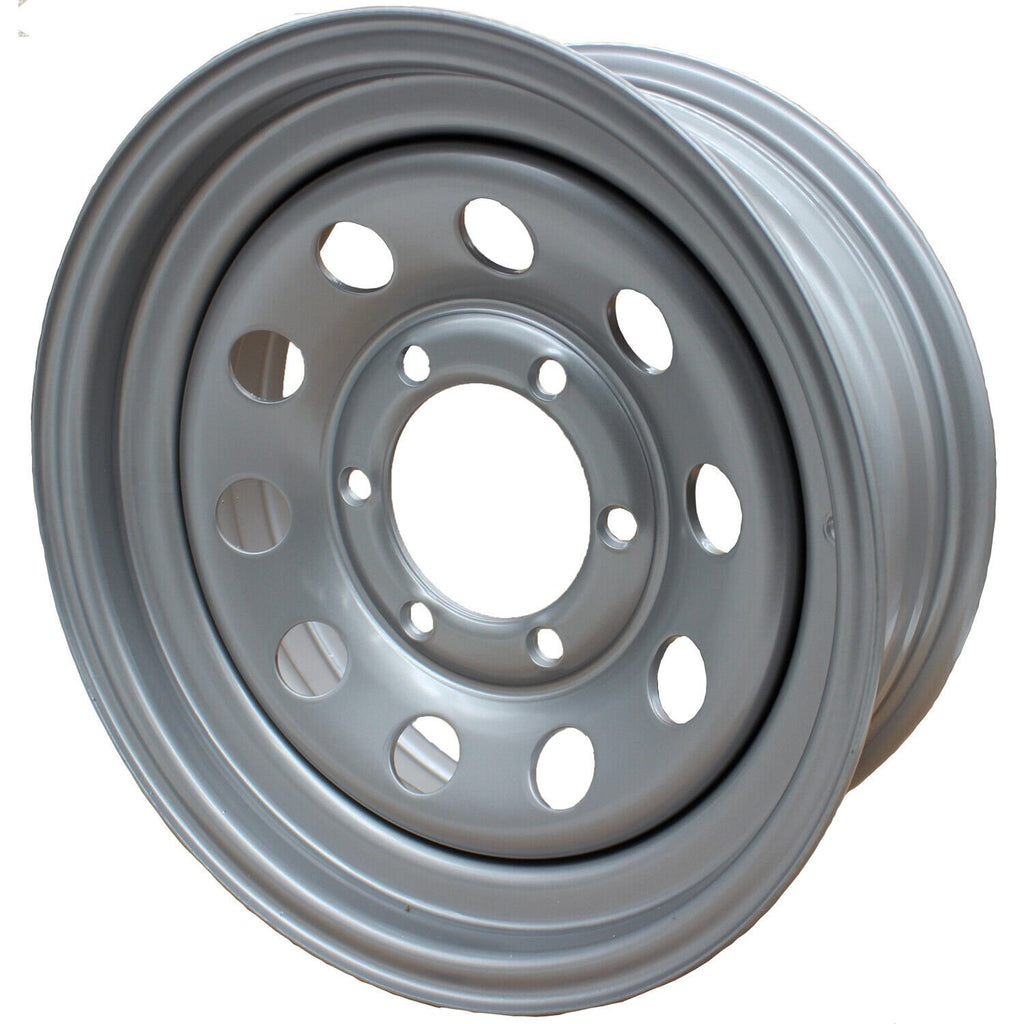

This one measures 15 by 6 inches on a 6 on 5.5 inch bolt pattern, rated to carry 3080 lbs, finished in silver.
The modular center places more material between the lug holes than a spoked design, which is what supports a higher rating at the same diameter. Specify it when the trailer operates near its axle limit.
Fitment runs a 4.28 inch center hole, 0 inch offset, 3.5 inches of backside spacing. Those three dimensions determine hub and brake clearance. Verify all three against the wheel currently fitted rather than matching on diameter alone.
Every Premium Service wheel is stamped from steel and finished in durable paint rated for road salt, brine and sustained exposure. We control the specification, the load rating and the finish, and we put our name on all three.
Sold individually. Tire not included.
HOW TO MEASURE YOUR BOLT PATTERN
This wheel is 6 on 5.5 (6x139.7 mm), which means 6 studs arranged on a 5.5 inch circle. Because this hub has an even number of studs, every stud has one directly opposite it. Measure from the center of one stud straight across to the center of the stud opposite, and that measurement is your circle diameter.
Measure the hub on the trailer rather than the wheel currently fitted, because the wheel already on it may be the wrong one.
Watch for a 6 on 6, which is a half inch larger and looks very similar on the hub.
A wheel forced onto the wrong pattern will not seat on its lug seats correctly, and a wheel that is not seated can come off in service. If your measurement does not land on this pattern, do not order this wheel.
- Carries up to 3080 lbs on a modular steel trailer wheel, which is the load rating to check against your axle before ordering.
- Measures 15 by 6 inches on a 6 on 5.5 inch bolt pattern with 6 lug holes.
- Center hole 4.28 inches, offset 0 inches, backside spacing 3.5 inches. Match all three to your hub before ordering.
- Finished in silver, on a painted steel construction that resists the road salt and brine a trailer wheel lives in.
- Sold individually, tire not included.
Features
- Carries up to 3080 lbs on a modular steel trailer wheel, which is the load rating to check against your axle before ordering.
- Measures 15 by 6 inches on a 6 on 5.5 inch bolt pattern with 6 lug holes.
- Center hole 4.28 inches, offset 0 inches, backside spacing 3.5 inches. Match all three to your hub before ordering.
- Finished in silver, on a painted steel construction that resists the road salt and brine a trailer wheel lives in.
- Sold individually, tire not included.
