Description
Correct geometry, verified capacity, durable finish. The Premium Service spoked wheel delivers all three without asking you to choose.

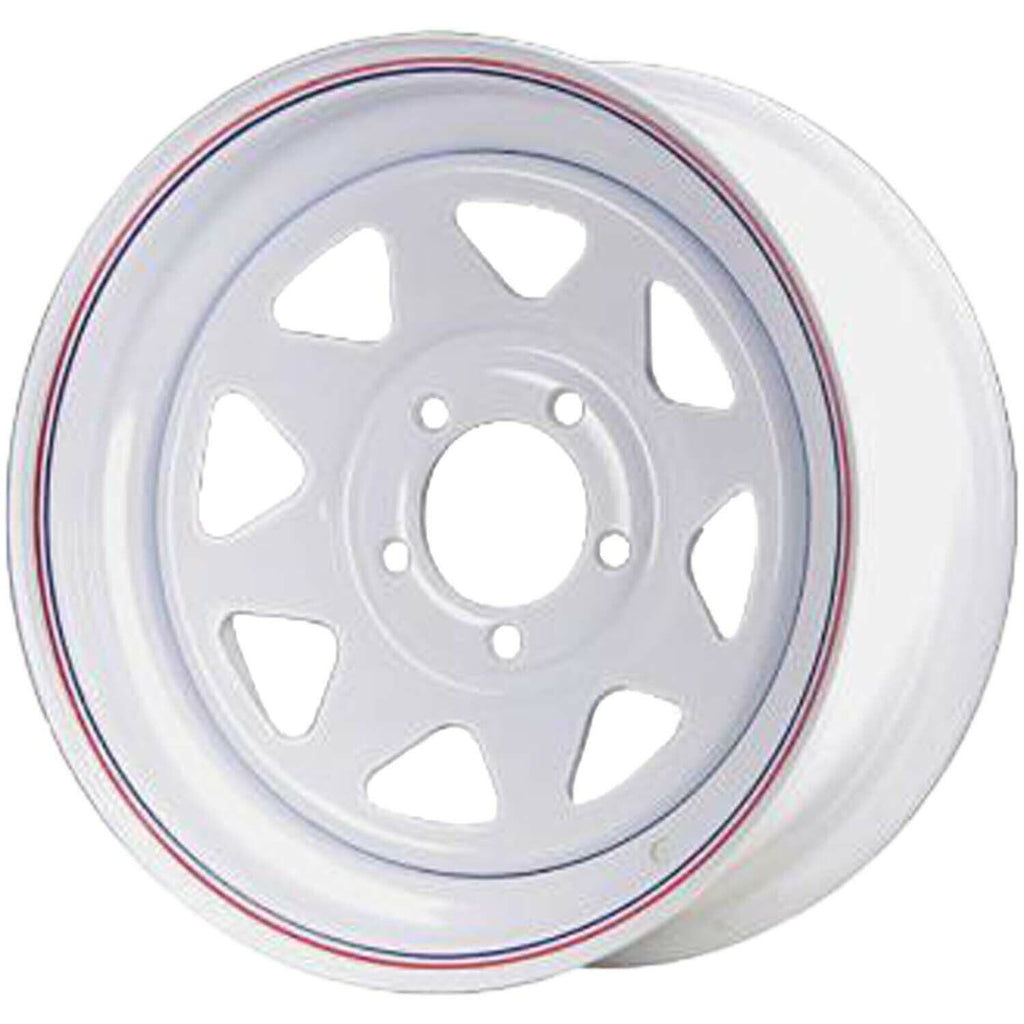

This one measures 12 by 4 inches on a 5 on 4.5 inch bolt pattern, rated to carry 1520 lbs, finished in white with red and blue pin stripes.
The open spoke design is functional as well as familiar: it sheds water and road grime rather than trapping it against the drum, and it vents brake heat on extended descents.
Fitment runs a 2.95 inch center hole, 0 inch offset, 2.5 inches of backside spacing. Those three dimensions determine hub and brake clearance. Verify all three against the wheel currently fitted rather than matching on diameter alone.
Every Premium Service wheel is stamped from steel and finished in durable paint rated for road salt, brine and sustained exposure. We control the specification, the load rating and the finish, and we put our name on all three.
Sold individually. Tire not included.
HOW TO MEASURE YOUR BOLT PATTERN
This wheel is 5 on 4.5 (5x114.3 mm), which means 5 studs arranged on a 4.5 inch circle. Five lug hubs are the ones people get wrong, because no stud sits directly opposite another. Do not measure center to center across the hub. Instead, measure from the center of one stud to the outer edge of the stud two positions away, skipping the one in between. That distance is your circle diameter.
Measure the hub on the trailer rather than the wheel currently fitted, because the wheel already on it may be the wrong one.
Watch for a 5 on 4.75, which measures only a quarter inch larger and is nearly impossible to tell apart by eye.
A wheel forced onto the wrong pattern will not seat on its lug seats correctly, and a wheel that is not seated can come off in service. If your measurement does not land on this pattern, do not order this wheel.
- Carries up to 1520 lbs on a spoked steel trailer wheel, which is the load rating to check against your axle before ordering.
- Measures 12 by 4 inches on a 5 on 4.5 inch bolt pattern with 5 lug holes.
- Center hole 2.95 inches, offset 0 inches, backside spacing 2.5 inches. Match all three to your hub before ordering.
- Finished in white with red and blue pin stripes, on a painted steel construction that resists the road salt and brine a trailer wheel lives in.
- Sold individually, tire not included.
