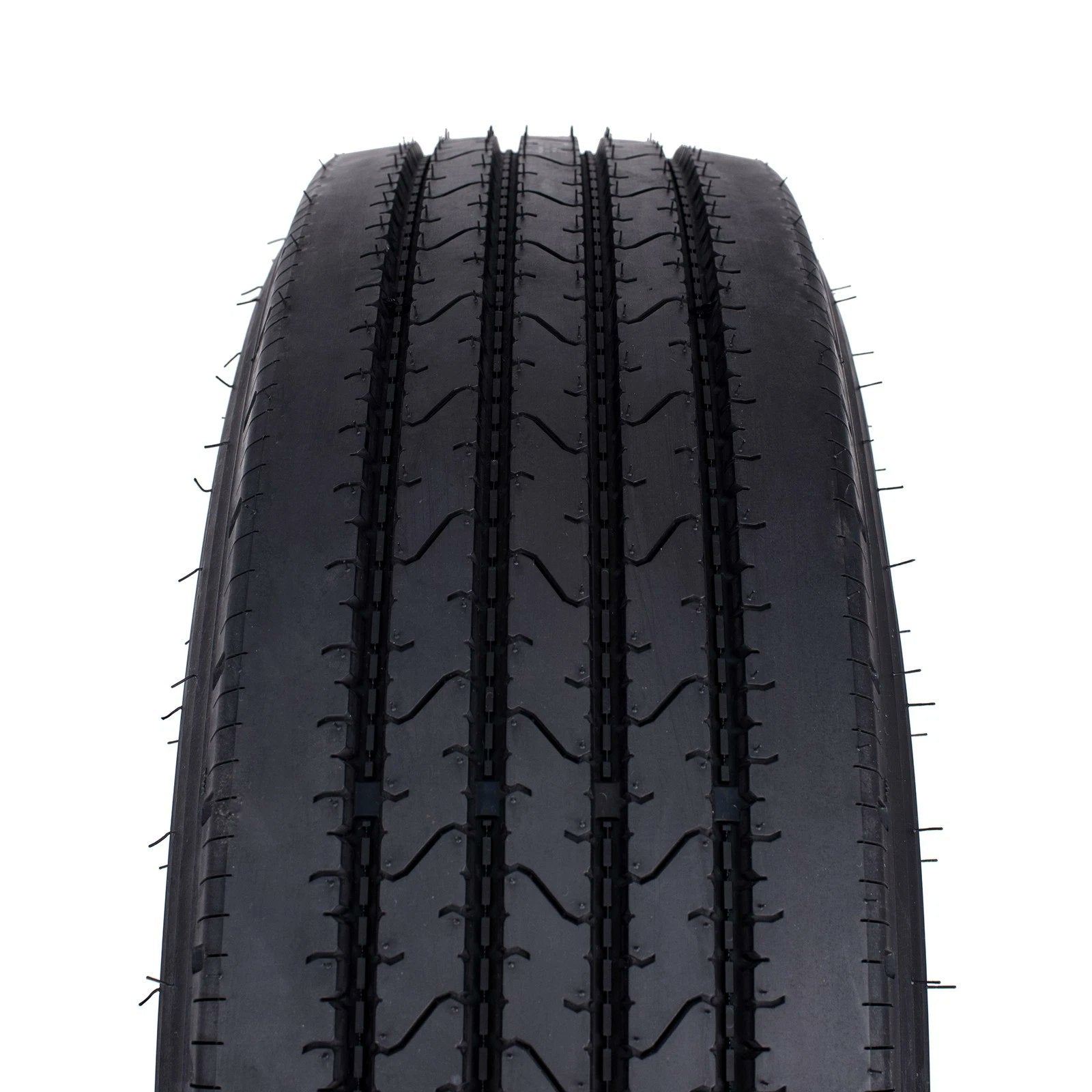

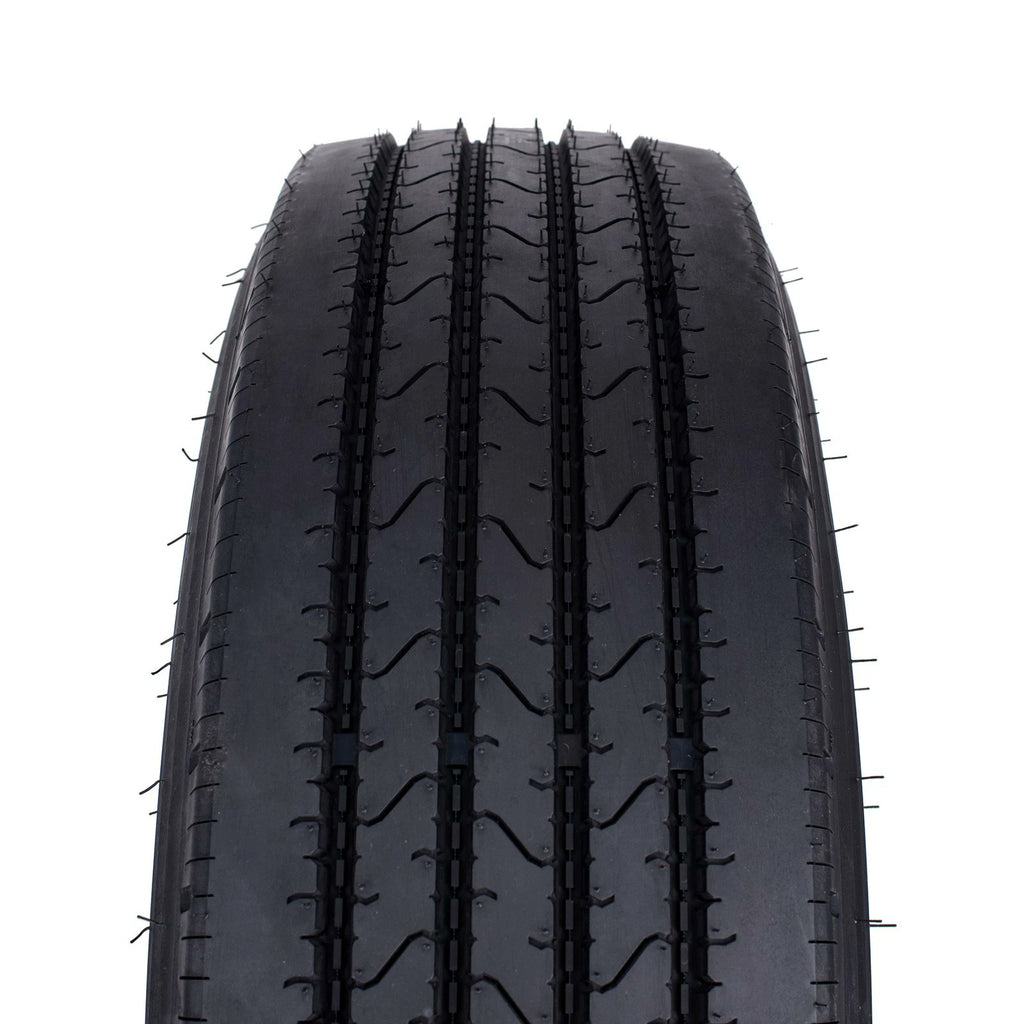

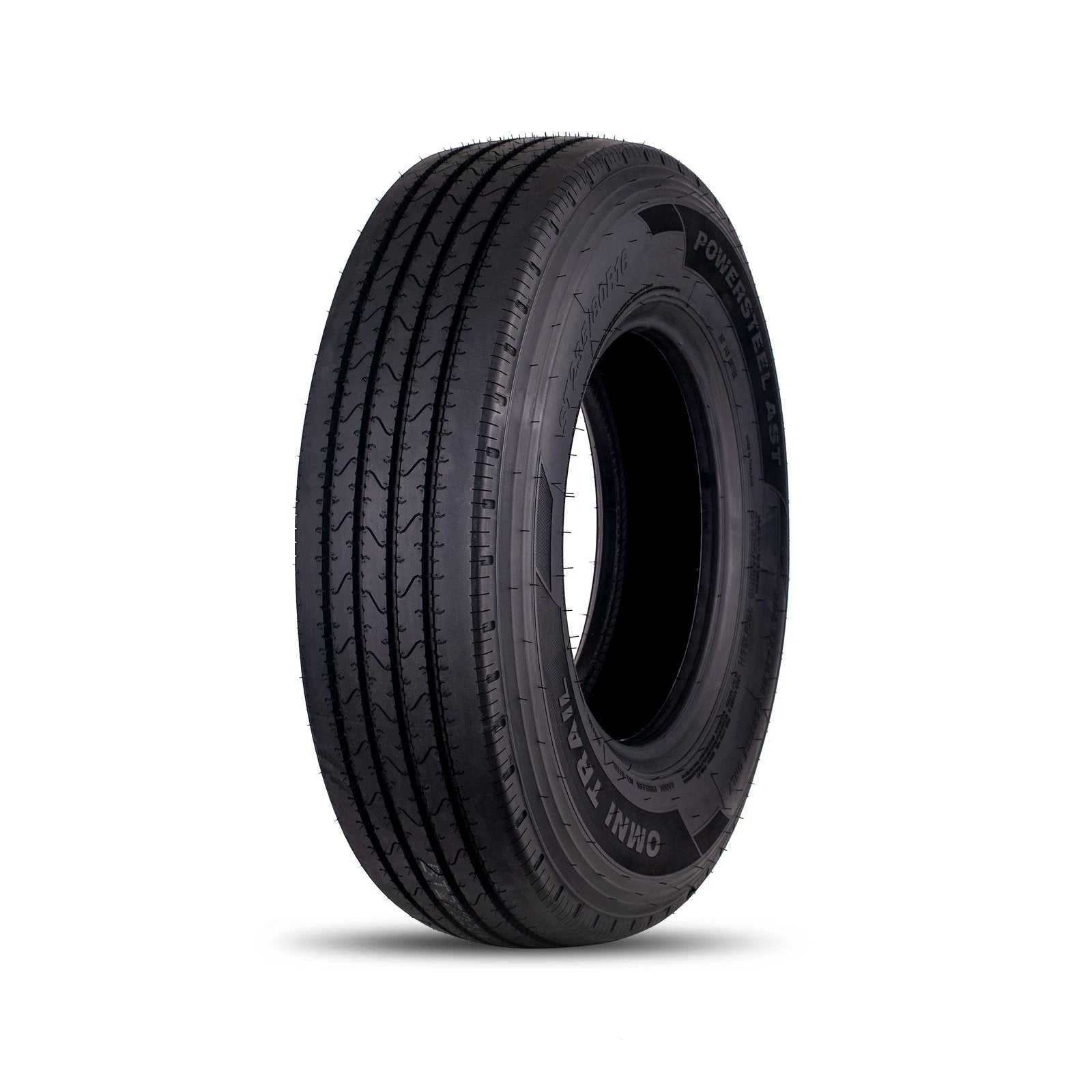

Omni Trail Capability STR ST235/80R16 Load Range E Trailer Tire
Omni Trail Capability STR ST235/80R16 Load Range E Trailer Tire
Roll over image to zoom in Click on image to zoom
Omni Trail Capability STR ST235/80R16 Load Range E Trailer TireOmni Trail Capability STR ST235/80R16 Load Range E Trailer Tire

Omni Trail Capability STR ST235/80R16 Load Range E Trailer Tire

Omni TrailSKU: TIR19979
No reviews
Price:
$148.11

WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Description

The Omni Trail Capability STR is a radial trailer tire built for recreational and light duty industrial hauling equipment. A specially designed tread pattern and radial construction provide strength, durability and consistent performance, and wide circumferential grooves evacuate water to reduce hydroplaning. This is the ST235/80R16 in Load Range E, 10 Ply Rating. Fits RV trailers, fifth wheel trailers, utility trailers and boat trailers. Backed by free 2 year roadside assistance coverage and the Omni Trail limited protection policy. Trailer service only, and it should not be mounted on a light truck.

Tire Specifications

Tire size
ST235/80R16
Overall diameter
30.8 in
Section width
9.25 in
Ply rating
10
Size & fitment
Tire sizeST235/80R16
Rim diameter16 in
PositionAll Positions
Vehicle applicationTrailer
Construction
ConstructionRadial
Ply rating10
Load rangeE
Tube requirementTubeless
Dimensions
Overall diameter (actual)30.8 in
Section width (actual)9.25 in
Load & speed
Max load per tire (single)3,420 lb
Cold pressure at max load80 PSI
Speed ratingN
What's included
Package contentsTire only
Tires included1
General
BrandOmni Trail
MPNOTG0649
SKUTIR19979

Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.

Mounted dimensions

9.25 in section width 30.8 in overall diameter 16 in rim diameter
Drawn to scale from the manufacturer's published dimensions on the approved rim at the rated pressure. Actual dimensions vary with rim width, inflation pressure and load.
At a glance
Tire sizeST235/80R16
Overall diameter30.8 in
Section width9.25 in
Rim diameter16 in

The Omni Trail Capability STR is a radial trailer tire built for recreational and light duty industrial hauling equipment. A specially designed tread pattern and radial construction provide strength, durability and consistent performance, and wide circumferential grooves evacuate water to reduce hydroplaning. This is the ST235/80R16 in Load Range E, 10 Ply Rating. Fits RV trailers, fifth wheel trailers, utility trailers and boat trailers. Backed by free 2 year roadside assistance coverage and the Omni Trail limited protection policy. Trailer service only, and it should not be mounted on a light truck.

Features

  • Radial trailer tire built for recreational and light duty hauling, in Load Range E, 10 Ply Rating.
  • Measures ST235/80R16 with a 30.8 inch mounted diameter and 9.3 inch mounted width, and carries up to 3,420 lbs at 80 PSI (load index 123, speed rating N).
  • Fits RV trailers, fifth wheel trailers, utility trailers and boat trailers. Trailer service only, never mount on a light truck.
  • Radial construction with wide circumferential grooves that evacuate water and reduce hydroplaning.
  • Backed by free 2 year roadside assistance coverage and the Omni Trail limited protection policy.
