Description
The Greenball Towmaster trailer tire can be used on your boat, utility, construction trailers and more.

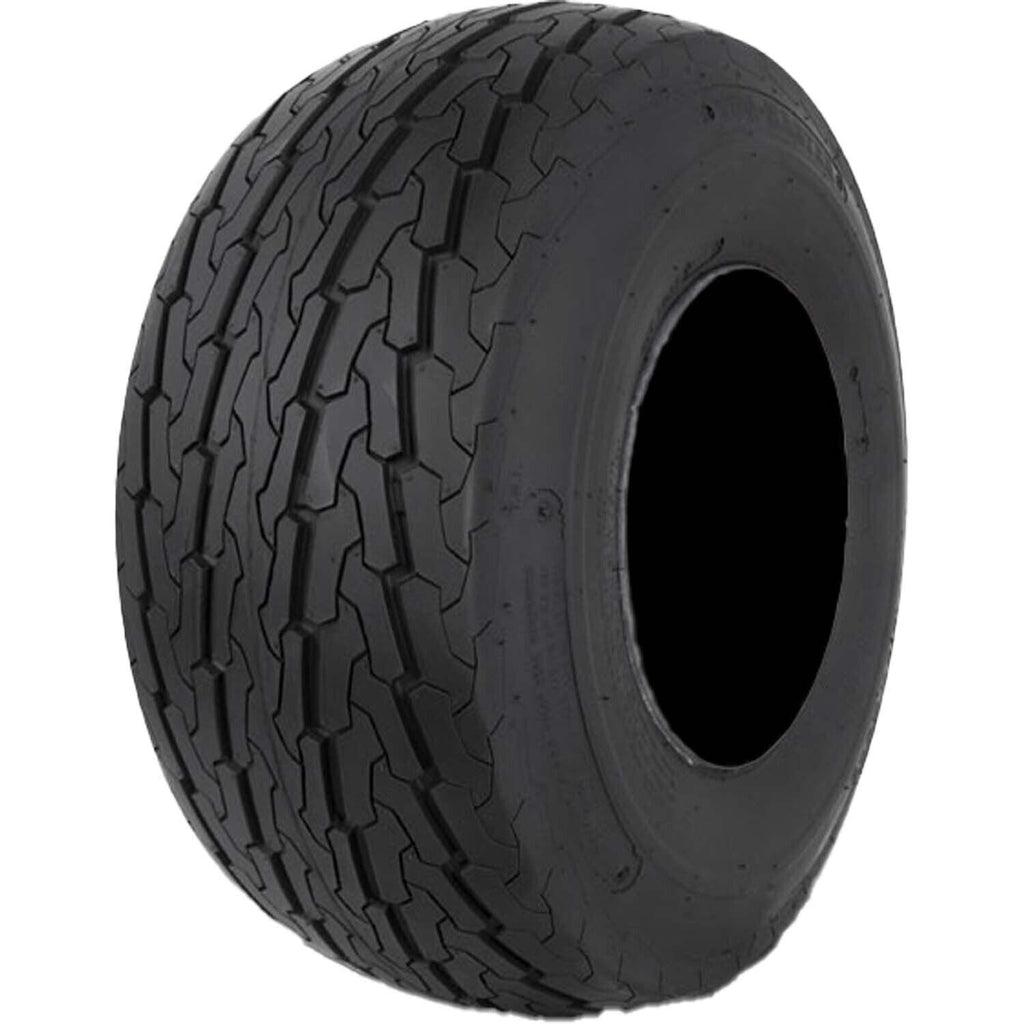

If the image contains a wheel, it is only for display purposes. The sale is for the tire only.
- Tire size22.5x8.0-12
- Rim12 in
- Rim width6 in
- Load rangeF (12 ply)
- Max load1,980 lb @ 110 PSI
- TypeBias
Quantity
Greenball Towmaster HT332 Trailer Tire LRF 12ply 22.5x8.00-12
$119.31
Documents
Tire Specifications
- Tire size
- 22.5x8.0-12
- Overall diameter
- 22.5 in
- Section width
- 8.7 in
- Ply rating
- 12
| Tire size | 22.5x8.0-12 |
|---|---|
| Rim diameter | 12 in |
| Approved rim widths | 6 in |
| Vehicle application | Trailer |
| Construction | Bias |
|---|---|
| Ply rating | 12 |
| Load range | F |
| Overall diameter (actual) | 22.5 in |
|---|---|
| Section width (actual) | 8.7 in |
| Tread depth (new) | 10/32" |
| Load index | 104 |
|---|---|
| Max load per tire (single) | 1,980 lb |
| Cold pressure at max load | 110 PSI |
| Speed rating | J |
| Package contents | Tire only |
|---|---|
| Tires included | 1 |
| Brand | Greenball |
|---|---|
| MPN | T1222S |
| SKU | TIR19300 |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.
Mounted dimensions
| Tire size | 22.5x8.0-12 |
|---|---|
| Overall diameter | 22.5 in |
| Section width | 8.7 in |
| Rim diameter | 12 in |
| Approved rim width | 6 in |
| Tread depth (new) | 10/32" |
Dimensions for this option are not available yet.
The Greenball Towmaster trailer tire can be used on your boat, utility, construction trailers and more.
If the image contains a wheel, it is only for display purposes. The sale is for the tire only.
