Description

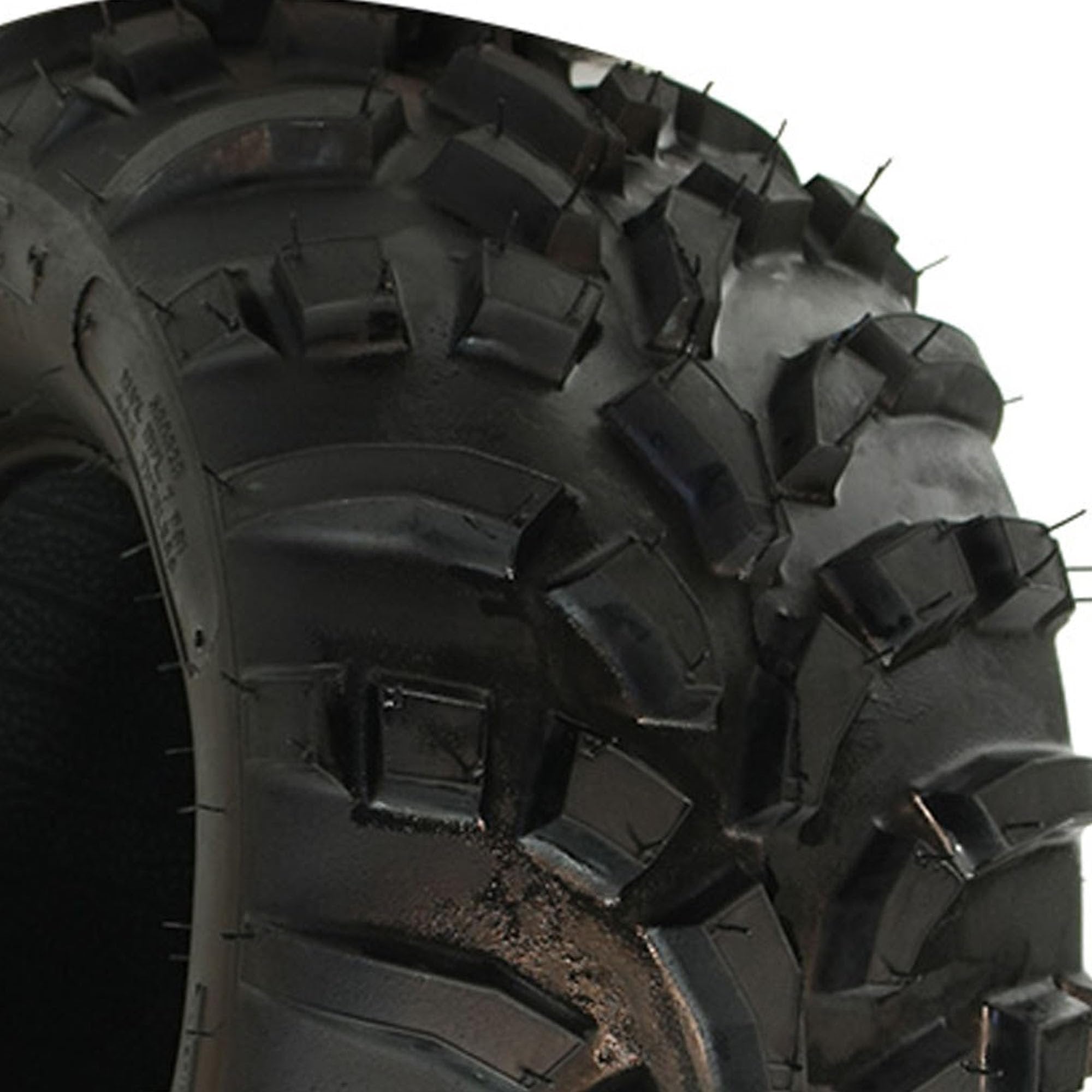

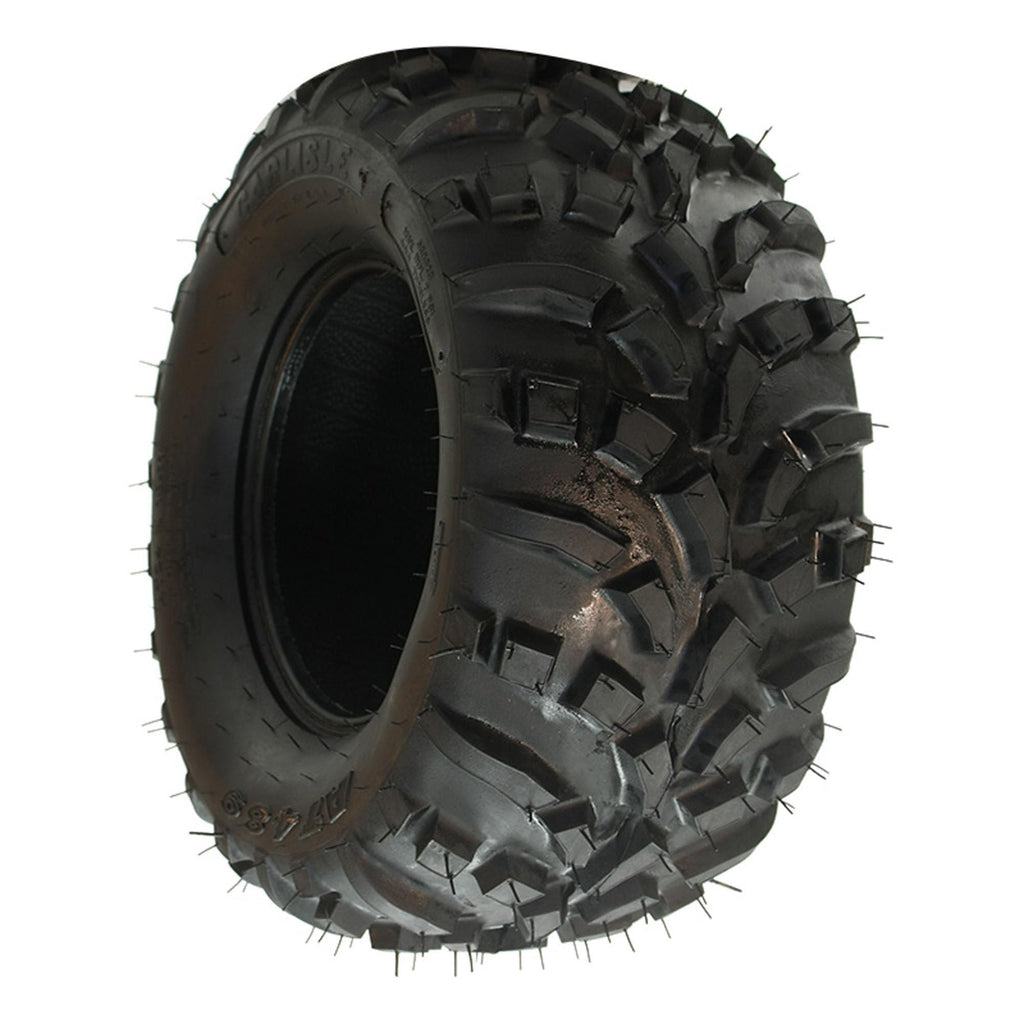

The AT489 is a popular original equipment replacement tire for ATVs and utility vehicles. It strikes a great balance between light weight and puncture resistance, with a lug pattern that grips on loose dirt and mud while still riding comfortably on hard-packed trails. Put it on when you want a proven, all-around performer.
- Tire size24x12.00-10
- Rim10 in
- Rim width9.5 in
- Load rangeB (4 ply)
- Max load1,050 lb @ 20 PSI
- TypeTubeless, bias
Quantity
Documents
Tire Specifications
- Tire size
- 24x12.00-10Decode this size
- Overall diameter
- 24 in
- Section width
- 12 in
- Ply rating
- 4
| Tire size | 24x12.00-10 |
|---|---|
| Rim diameter | 10 in |
| Approved rim widths | 9.5 in |
| Position | All Positions |
| Vehicle application | ATV/UTV |
| Terrain | All-terrain, loose dirt, mud and hard pack |
| Construction | Bias |
|---|---|
| Ply rating | 4 |
| Load range | B |
| Tube requirement | Tubeless |
| Overall diameter (actual) | 24 in |
|---|---|
| Section width (actual) | 12 in |
| Tread depth (new) | 19/32" |
| Load index | 82 |
|---|---|
| Max load per tire (single) | 1,050 lb |
| Cold pressure at max load | 20 PSI |
| Speed rating | NHS: Not for Highway Service |
| Package contents | Tire only |
|---|---|
| Tires included | 1 |
| Brand | Carlisle |
|---|---|
| MPN | 5793A6 |
| SKU | TIR18032 |
| Shipping weight | 23.48 lb |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values. Actual dimensions vary with rim width, inflation pressure and load.
Mounted dimensions
| Tire size | 24x12.00-10 |
|---|---|
| Overall diameter | 24 in |
| Section width | 12 in |
| Rim diameter | 10 in |
| Approved rim width | 9.5 in |
| Tread depth (new) | 19/32" |
Dimensions for this option are not available yet.
The AT489 is a popular original equipment replacement tire for ATVs and utility vehicles. It strikes a great balance between light weight and puncture resistance, with a lug pattern that grips on loose dirt and mud while still riding comfortably on hard-packed trails. Put it on when you want a proven, all-around performer.
