Descripción
The Artiglio Master J puts Corghi's patented Leva la Leva technology and the SMART Corghi System device into a machine priced for shops that could not previously justify touchless. Two things separate it from the imitators that market themselves as no-lever or leverless: it never touches the rim during any working phase, and it eliminates tension on the tire during demounting and mounting rather than simply working around it.
The bead demounting tool finds the bead automatically regardless of rim profile, with no contact with the wheel. A dynamic dual-disc bead breaker with patented controlled penetration places the discs radially by automatism, and the two discs move in perfectly synchronized mirror image. The axial mounting turntable clamps the wheel once and breaks both beads without flipping it, which saves a handling step on every tire.
It covers rims from 12 to 26 inches, tires up to 43.31 inches in diameter and 14 inches wide. Pedals, console, tray and wheel loading are all on the same side at a constant working height. Backed by Corghi USA's warranty, raised in April 2024 to 3 years on parts and 1 year on labor across the entire model line.
- Rim range12 to 26 in
- Max tire diameter43.3 in
- Max wheel width14 in
- Power110V 1-phase
- Bead breaker1,709 lb

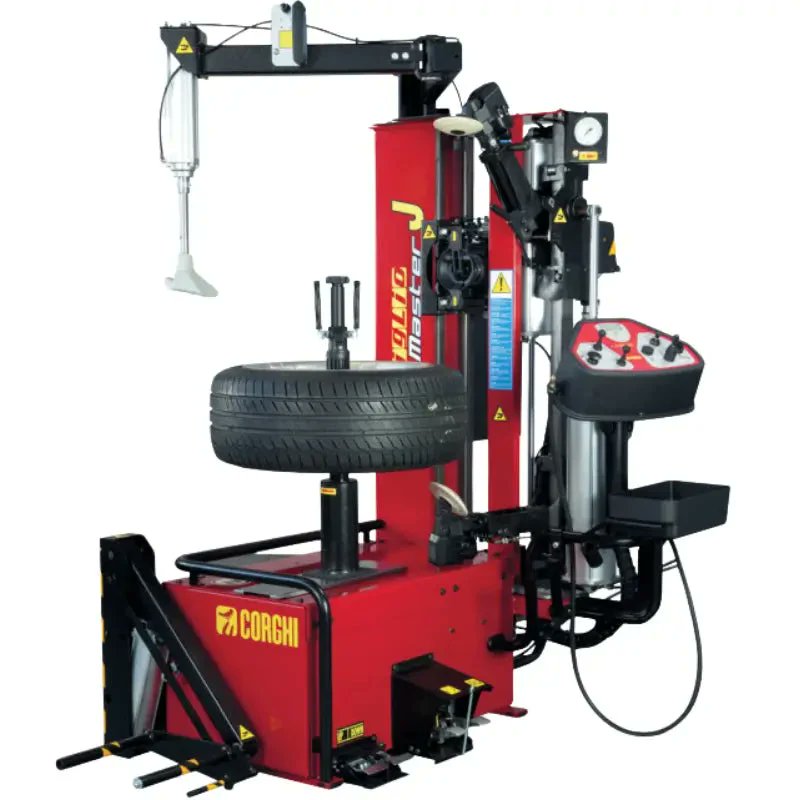

Corghi Artiglio Master J Touchless Tire Changer with Assist Arm
$17,755.28
Documents
Equipment Specifications
- Rim diameter
- 12 to 26 in
- Max tire diameter
- 43.3 in
- Max wheel width
- 14 in
- Power supply
- 110V 1-phase
| Min rim diameter | 12 in |
|---|---|
| Max rim diameter | 26 in |
| Clamping range | 12 to 26 in |
| Max tire diameter | 43.3 in |
| Max wheel width | 14 in |
| Specialty tires | Low profile, Run-flat |
| Power supply | 110V 1-phase |
|---|---|
| Operating air pressure | 116 to 138 PSI |
| Bead breaker force | 1,709 lb |
|---|---|
| Turntable torque | 811 ft-lb |
| Turntable speed | 7 and 18 RPM |
| Assist arm | Included |
|---|---|
| Inflation system | Pressure gauge with deflation button, TI quick inflation kit optional |
| Mount/demount head | Touchless tool with automatic bead search, never contacts the rim |
| Machine dimensions (in) | 44.6 W x 74.8 D x 71.7 H (with wheel lifter) |
|---|---|
| Machine weight | 882 lb |
| Warranty | 3 years parts, 1 year labor, 90 days on wear items |
| Brand | Corghi |
|---|---|
| SKU | CORAMJ |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values.
The Artiglio Master J puts Corghi's patented Leva la Leva technology and the SMART Corghi System device into a machine priced for shops that could not previously justify touchless. Two things separate it from the imitators that market themselves as no-lever or leverless: it never touches the rim during any working phase, and it eliminates tension on the tire during demounting and mounting rather than simply working around it.
The bead demounting tool finds the bead automatically regardless of rim profile, with no contact with the wheel. A dynamic dual-disc bead breaker with patented controlled penetration places the discs radially by automatism, and the two discs move in perfectly synchronized mirror image. The axial mounting turntable clamps the wheel once and breaks both beads without flipping it, which saves a handling step on every tire.
It covers rims from 12 to 26 inches, tires up to 43.31 inches in diameter and 14 inches wide. Pedals, console, tray and wheel loading are all on the same side at a constant working height. Backed by Corghi USA's warranty, raised in April 2024 to 3 years on parts and 1 year on labor across the entire model line.
