Descripción
Upgrade your auto repair shop, tire center, or dealership with the Corghi A9824TI Car and Light Truck Rim Clamp Tire Changer. Engineered for high-volume tire servicing, the A9824TI combines Corghi’s legendary Italian craftsmanship with a heavy-duty swing-arm design built to service standard, low-profile, and run-flat tires with ease. Capable of handling rim diameters from 10" to 24" externally (13" to 26" internally) and tire diameters up to 47", the A9824TI is ideal for modern passenger cars, SUVs, and light commercial trucks.
The integrated "TI" (Tubeless Inflation) system features powerful air blast jets built directly into the clamping jaws for rapid, hands-free bead seating. To protect customer wheels, the specialized "no-touch" mount/demount head automatically maintains proper clearance from the wheel edge, preventing scratches on delicate painted or custom alloy rims.
90-Day Limited Warranty: Wear-and-tear/high-use items (such as plastic rim protectors, mount/demount heads, rubber pads, air lines, pressure gauges, and inflation hoses) carry a 90-day parts warranty.
Exclusions: The warranty does not cover damage resulting from misuse, operator abuse, electrical surges/improper voltage, contaminated compressed air systems, or shipping/freight damage (freight claims must be filed directly with the carrier).
Warranty Coverage Scope: Applies to the original purchaser/owner and requires proper routine maintenance as outlined in the owner's manual.
- Rim range10 to 26 in
- Max tire diameter47 in
- Max wheel width14 in
- Power110V 1-phase
- Bead breaker3,372 lb

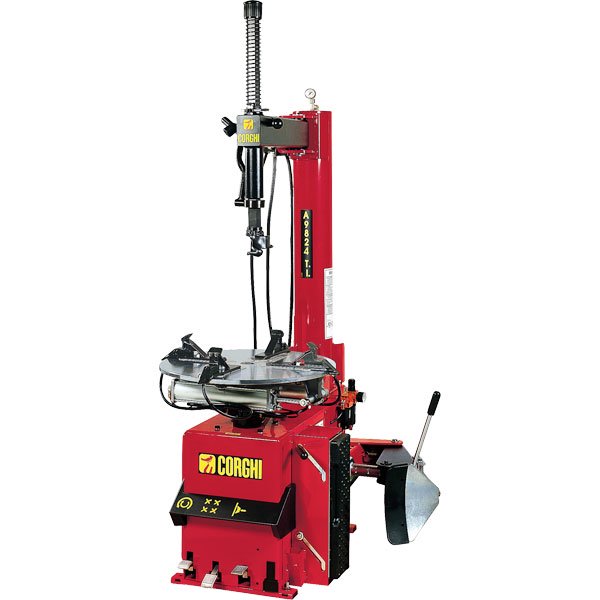

Corghi A9824TI Car and Light Truck Rim Clamp Tire Changer
$7,799.99
Documents
Equipment Specifications
- Rim diameter
- 10 to 26 in
- Max tire diameter
- 47 in
- Max wheel width
- 14 in
- Power supply
- 110V 1-phase
| Min rim diameter | 10 in |
|---|---|
| Max rim diameter | 26 in |
| Clamping range | Outside 10 to 24 in, inside 13 to 26 in, 8 to 28 in with optional adapter |
| Max tire diameter | 47 in |
| Max wheel width | 14 in |
| Specialty tires | Run-flat |
| Power supply | 110V 1-phase |
|---|---|
| Operating air pressure | 145 PSI |
| Bead breaker force | 3,372 lb |
|---|
| Assist arm | Optional |
|---|---|
| Inflation system | Built-in inflator with bead seat jets in the jaws, air tank, inflation pedal and gauge |
| Mount/demount head | Head does not touch the rim during operation, with a locking handle |
| Machine weight | 525 lb |
|---|---|
| Warranty | 3 years parts, 1 year labor, 10 years transmission (parts only), 90 days on wear items |
| Brand | Corghi |
|---|---|
| MPN | 0-11101764/00 |
| SKU | CORA9824TIE |
Specifications for this option are not available yet.
Specifications are the manufacturer's published values.
